1 6

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Illumax

iLLUMAX LED Strip ULTRA+ Series 204LEDs/m 24.5W/m 24V

SKU 3014-2042400SCX-CW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

3014-2042400SCX-CW
Length
LED Colour
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

iLLUMAX LED Strip ULTRA+ Series 204LEDs/m 24.5W/m 24VSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUWarranty PeriodLED ColourBrightnessLengthWidthLight colour
3014-2042400SCX-CW2 yrCool White 6000K2,100 lm1 m8 mmCool White
3014-2042400SCX-NW2 yrNatural White 4000K2,100 lm1 m8 mmNatural White
3014-2042400SCX-WW2 yrWarm White 3000K2,100 lm1 m8 mmWarm White
Z-3014-2042400SCX-CW-53 yrCool White 6000K2,100 lm5 m10 mmCool White
Z-3014-2042400SCX-NW-53 yrNatural White 4000K1,980 lm5 m8 mmNatural White
Z-3014-2042400SCX-WW-53 yrWarm White 3000K1,540 lm5 m8 mmWarm White

Specifications

Power Rating
24.5W/m
Input Voltage
24V DC
LED Density
204 LEDs/m
Cutting Length
50mm
Beam angle
120 °
Width
10mm
Lifetime
50000 hrs @ 25 °C
Connections
200mm Wire P1J Female Connector (only available for 5m roll)
Mounting
Standard: 3M Tape
Warranty
3 Years

Recommended drivers (roll length: power, driver)

1 m roll
24.5W, GS25A24-P1J
2 m roll
49W, GS40A24-P1J
3 m roll
73.5W, GS90A24-P1J
4 m roll
98W, GS120A24-P1M
5 m roll
122.5W, GS160A24-P1M

Compatible dimmers & controls

D1
Wall-mount Dimmer
Z-DM-LT-701
1-10V Dimmer, Compatible with Major Faceplates
Test conditions and notes2
  1. [ ] = 1, 2, 3, 4 or 5
  2. 1 = 1 meter ; 2 = 2 meters ; 3 = 3 meters ; 4 = 4 meters ; 5 = 5 metres

Technical drawings

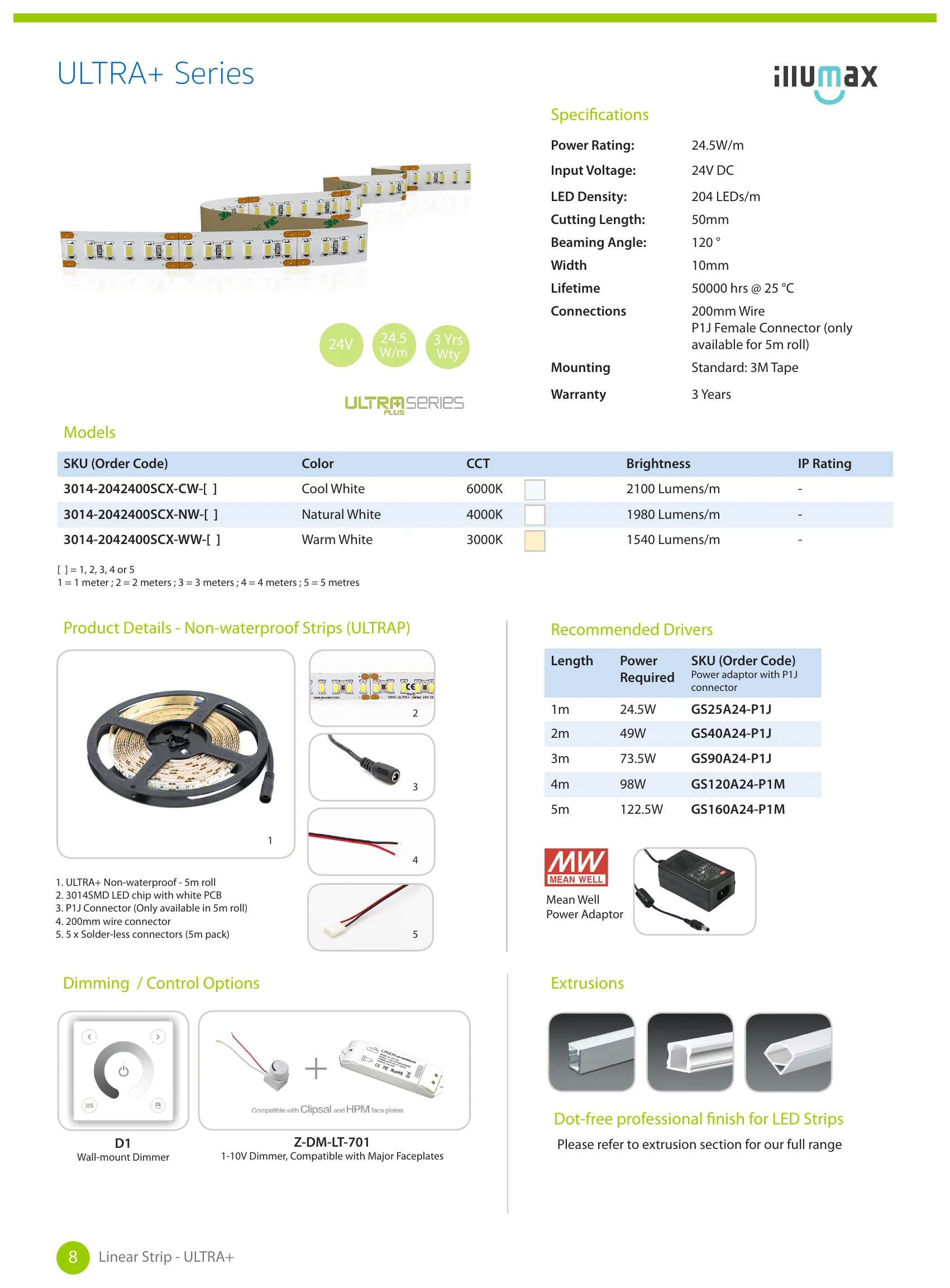

iLLUMAX LED Strip ULTRA+ Series 204LEDs/m 24.5W/m 24V Catalogue page
Catalogue page

Downloads

FAQ

What are the main specifications of the Archilight LED Strip ULTRA+ Series 24V strip?

This LED strip is rated at 24.5W per metre and operates on 24V DC. It has a density of 204 LEDs per metre, a 120 degree beam angle, and a cutting length of 50mm. The listed lifetime is 50,000 hours and the standard mounting option is 3M tape.

What light colour options are available in this LED strip family?

This parent family is available in three colour temperature options: 3000K, 4000K, and 6000K. These correspond to warm white, neutral white, and cool white style outputs. The core electrical and output specifications remain the same across the variants shown.

Is the driver included with this LED strip?

No, the driver is not included with this product family. The strip is specified for 24V DC input, so buyers should account for a separate compatible driver when planning the product selection. This applies across the variants listed for this parent model.

Is this LED strip dimmable?

Yes, this product family is listed as dimmable with optional dimming control. That means dimming capability is supported, but any required dimming accessories or controls are not indicated as included with the strip. The dimming status is consistent across the child variants provided.

How bright is this LED strip?

The child variants in this family are listed at 2100 lumens. That gives buyers a high-output strip option paired with a dense 204 LEDs per metre layout for a more continuous lighting appearance. The brightness value shown is the same across the listed colour temperature variants.

What types of projects is this LED strip suitable for?

This strip is suited to indoor linear lighting applications where a 24V, high-density LED strip is needed for consistent light output. Its 204 LEDs per metre spacing and 120 degree beam angle make it relevant for commercial and architectural-style lighting use. Buyers comparing options in this family will mainly choose based on preferred colour temperature rather than major spec changes.

What warranty is offered for this LED strip family?

The listed warranty period for this product family is 3 years. The same warranty period appears across the child variants provided. This makes the warranty position consistent regardless of the selected colour temperature option.
