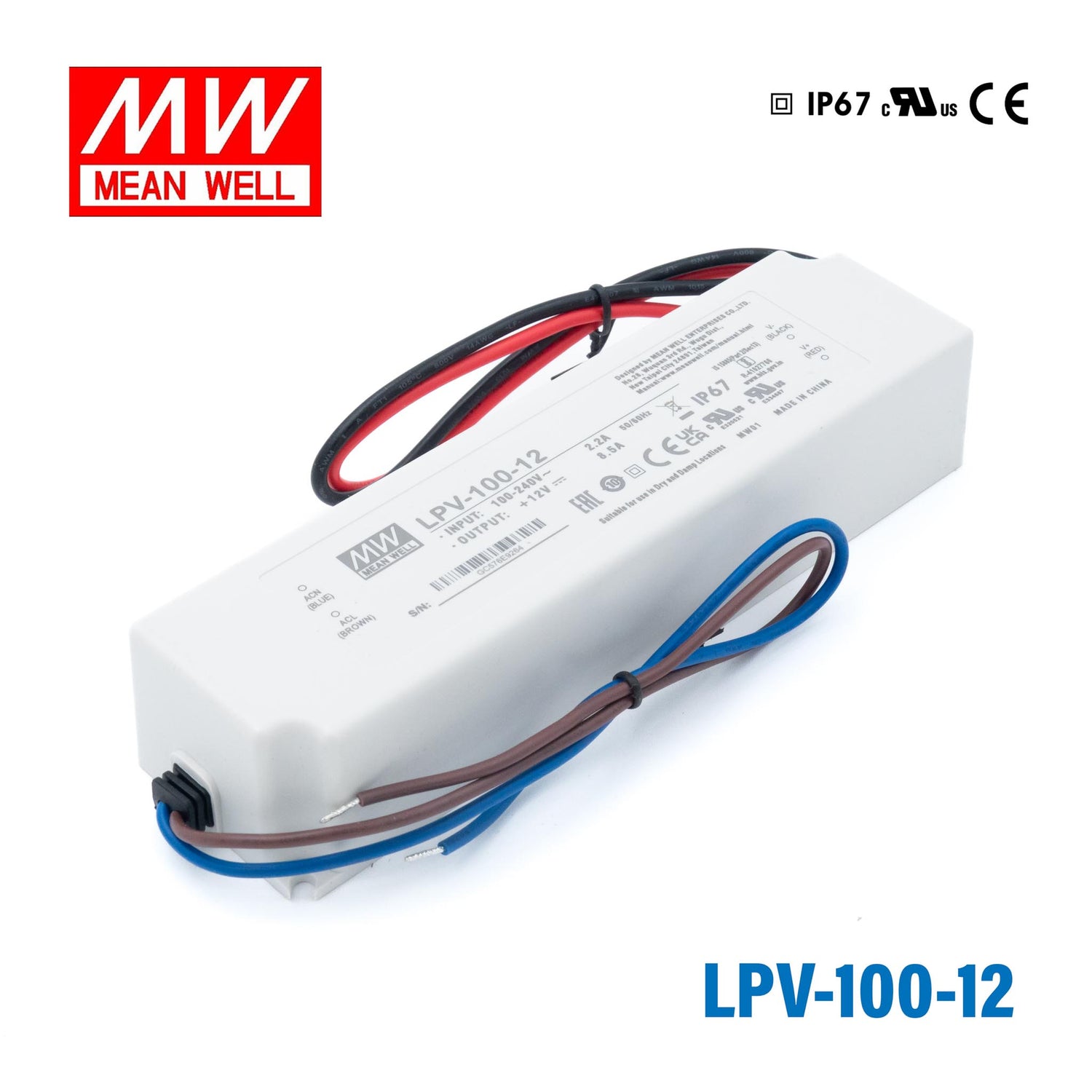

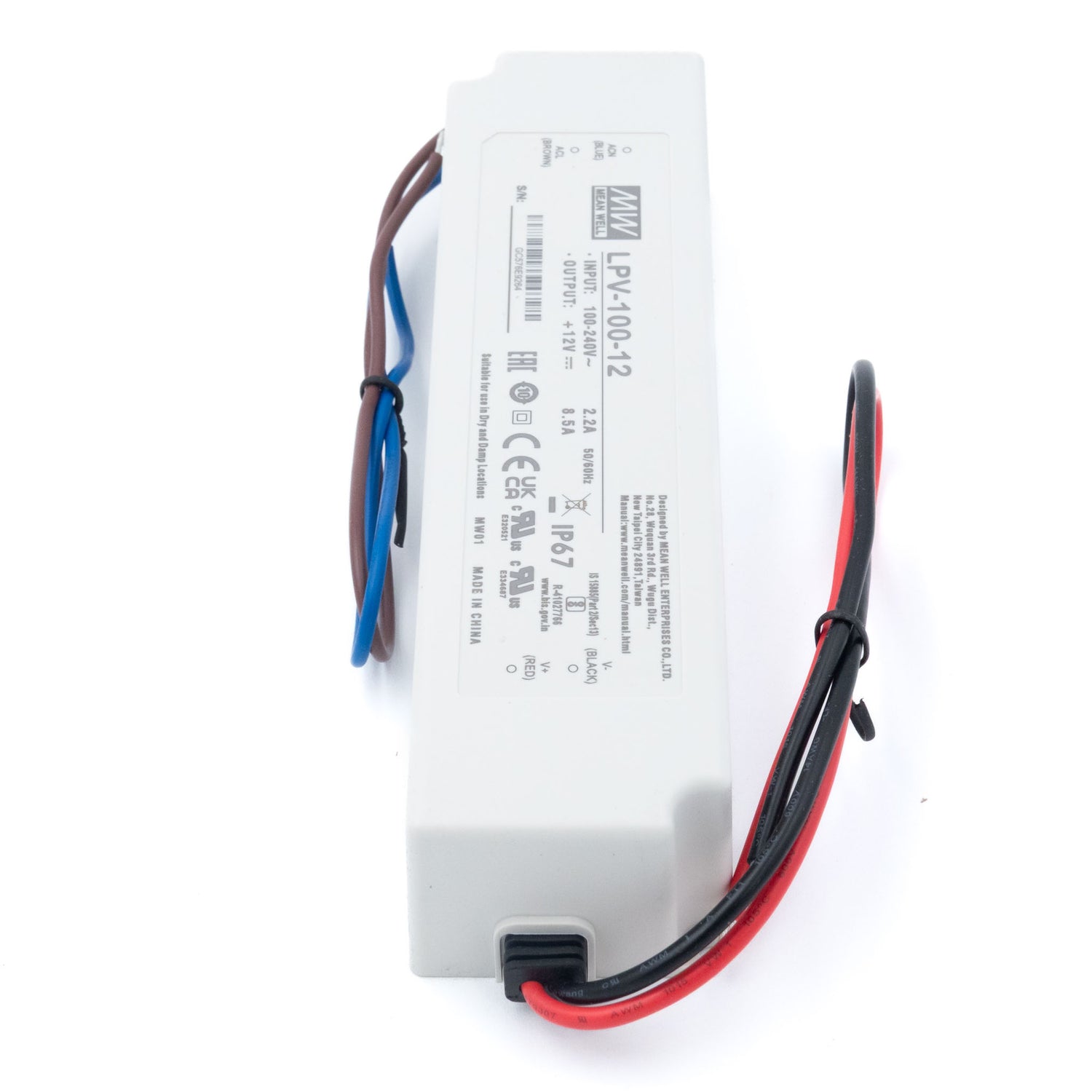

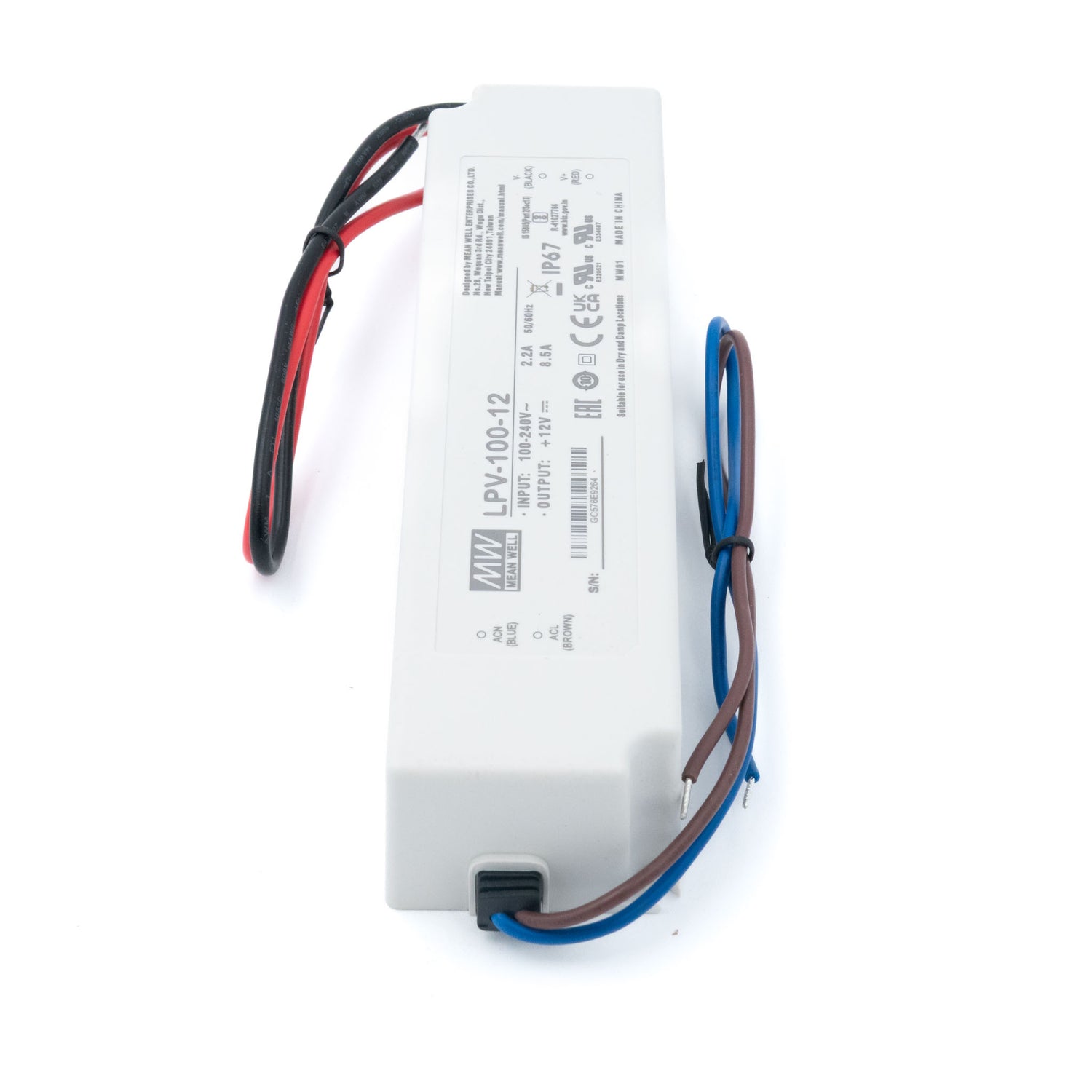

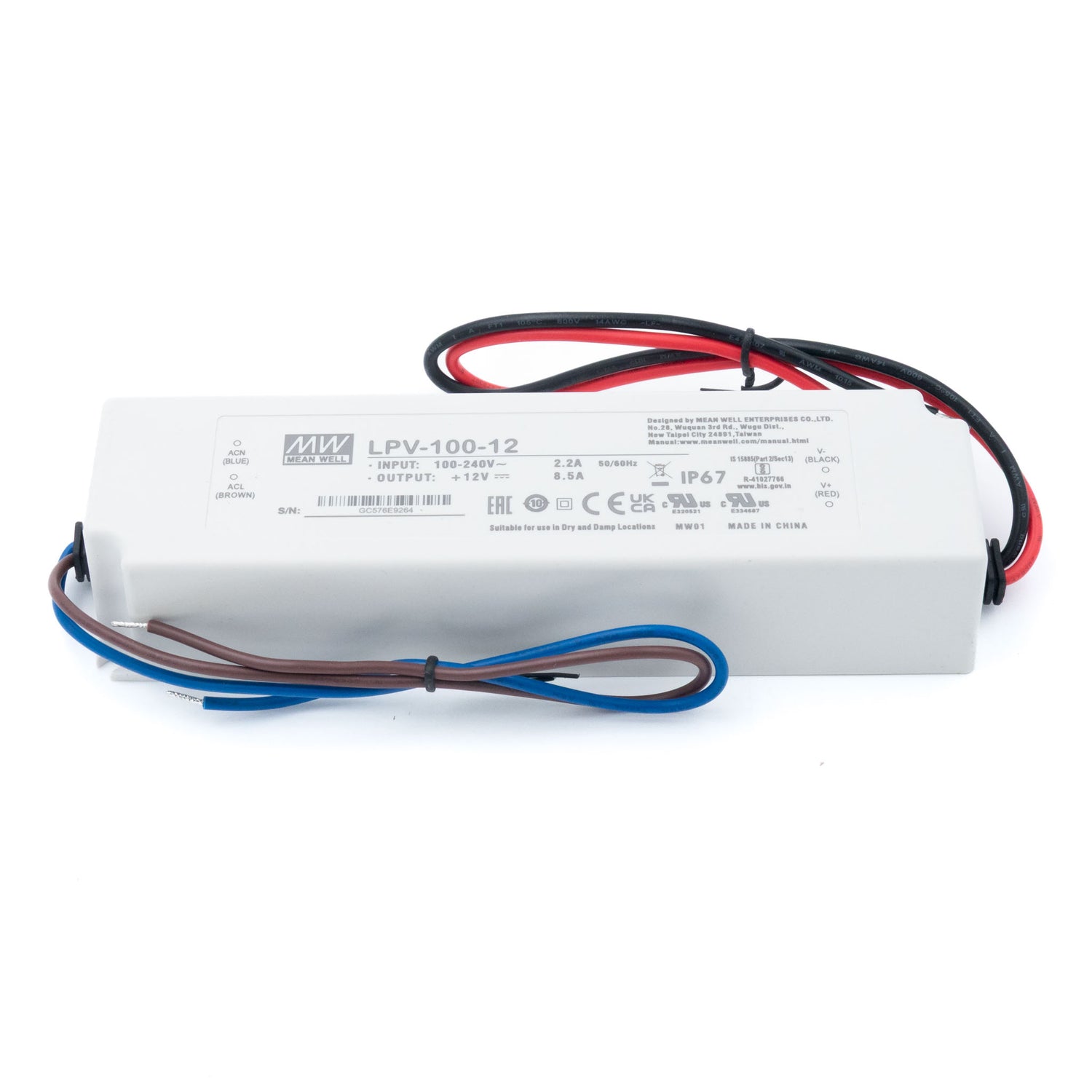

Mean Well LPV-100-12 LED Driver — 102W 12V 8.5A IP67 Waterproof

Constant VoltageCE/EAC/UL Certified90-264VAC Universal Input2-Year Warranty

SKU LPV-100-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

LPV-100-12

LPV-20-12 20W 12V In stock

LPV-100-12 100W 12V Backorder

LPV-35-12 35W 12V In stock

LPV-60-12 60W 12V In stock

LPVL-150-12 150W 12V Backorder

Product variants

Available to order

Overview

LPV-100-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 85%.

Features

Constant voltage design
Universal AC input / Full range
Fully encapsulated with IP67 level (Note.7)
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Fully isolated plastic case
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Display devices for decorative & advertising accessories (Note.11)
General-purpose electronics operated in dusty or damp environments
2 years warranty

Specifications

LPV-100-12Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 8.5A
CURRENT RANGE: 0 ~ 8.5A
RATED POWER: 102W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
HOLD UP TIME (Typ.): 50ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT: 2.2A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 190*52*37mm (L*W*H)
PACKING: 0.61Kg;20pcs/13.2Kg/0.57CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
12. R-41027766 (GZ factory) only for 12V,24V / R-62002178 (ID factory) for 5V~48V

Technical drawings

LPV-100-12 Mechanical Specification — Mechanical Specification

LPV-100-12 Recommend Mounting Direction — Recommend Mounting Direction

LPV-100-12 Block Diagram — Block Diagram

LPV-100-12 Derating Curve — Derating Curve

Downloads

Certificates2

UL Certificate (LPV-100)(EN) PDF Download

EMC Certificate (LPV-100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Is the LPV-100-12 suitable for outdoor LED strip installations?

Yes. The LPV-100-12 is fully encapsulated to IP67, meaning it is fully protected against dust and can withstand temporary immersion in water, and Mean Well rates it for indoor use or outdoor use without direct sunlight exposure, making it well suited for covered outdoor signage, landscape accent lighting, and exterior architectural strips running at 12V.

How many meters of 12V LED strip can the LPV-100-12 power?

The LPV-100-12 delivers 102W at 12V. To find the maximum length, divide 102W by your strip's rated wattage per meter — for example, a 10 W/m strip yields up to 10.2 meters, while a 14.4 W/m strip yields about 7 meters. Always verify your strip's rated power per meter before sizing.

Can the LPV-100-12 work with both 120V and 240V mains supplies?

Yes. Its universal input range of 90–264 VAC covers both 120V North American and 240V European/international mains without any manual switching or adapter.

What is the operating temperature range of the LPV-100-12?

The LPV-100-12 operates from -25°C to +70°C, allowing use in cold outdoor environments as well as moderately warm enclosures. Sustained operation near the upper end of that range may require derating; consult the full datasheet for derating curves.
