Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

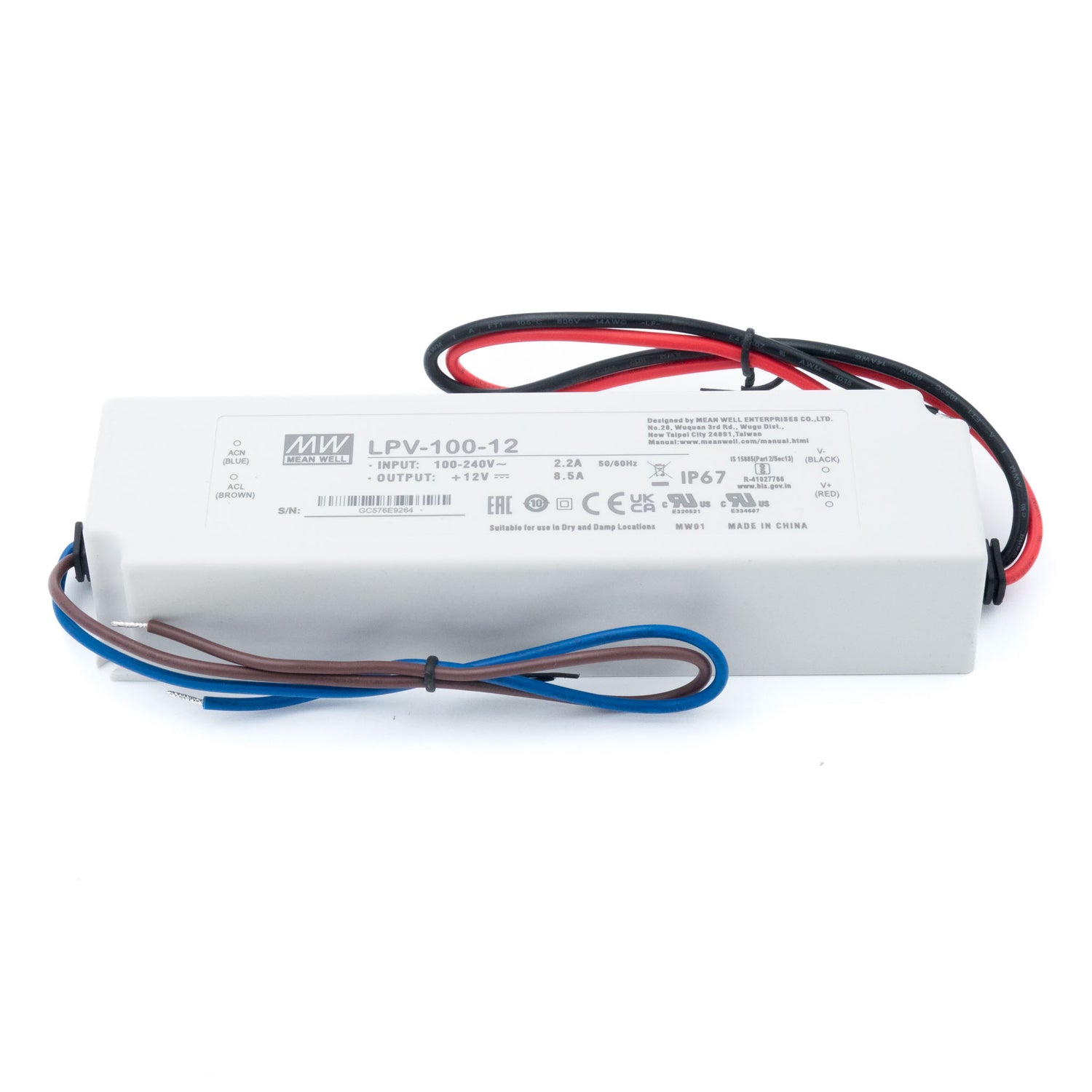

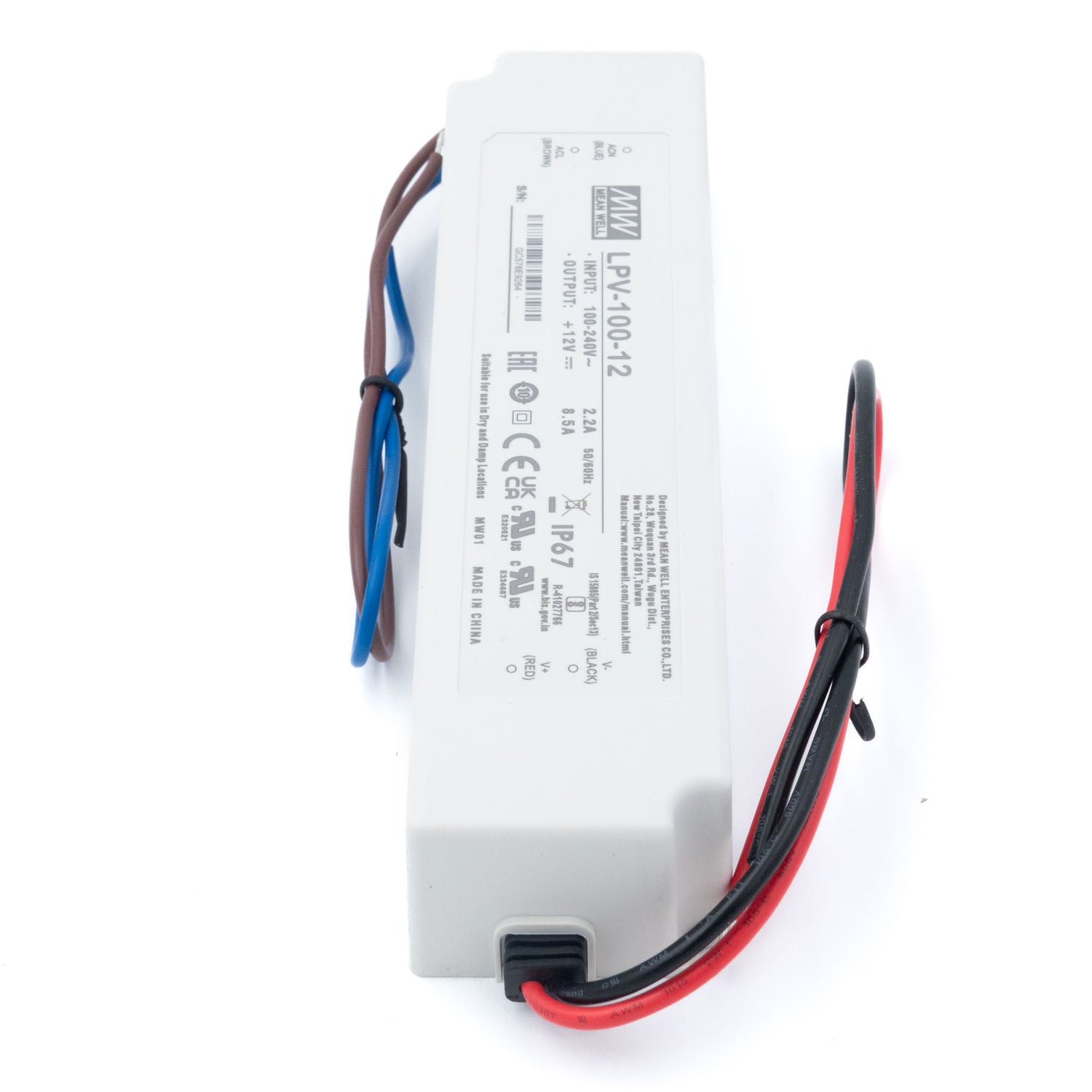

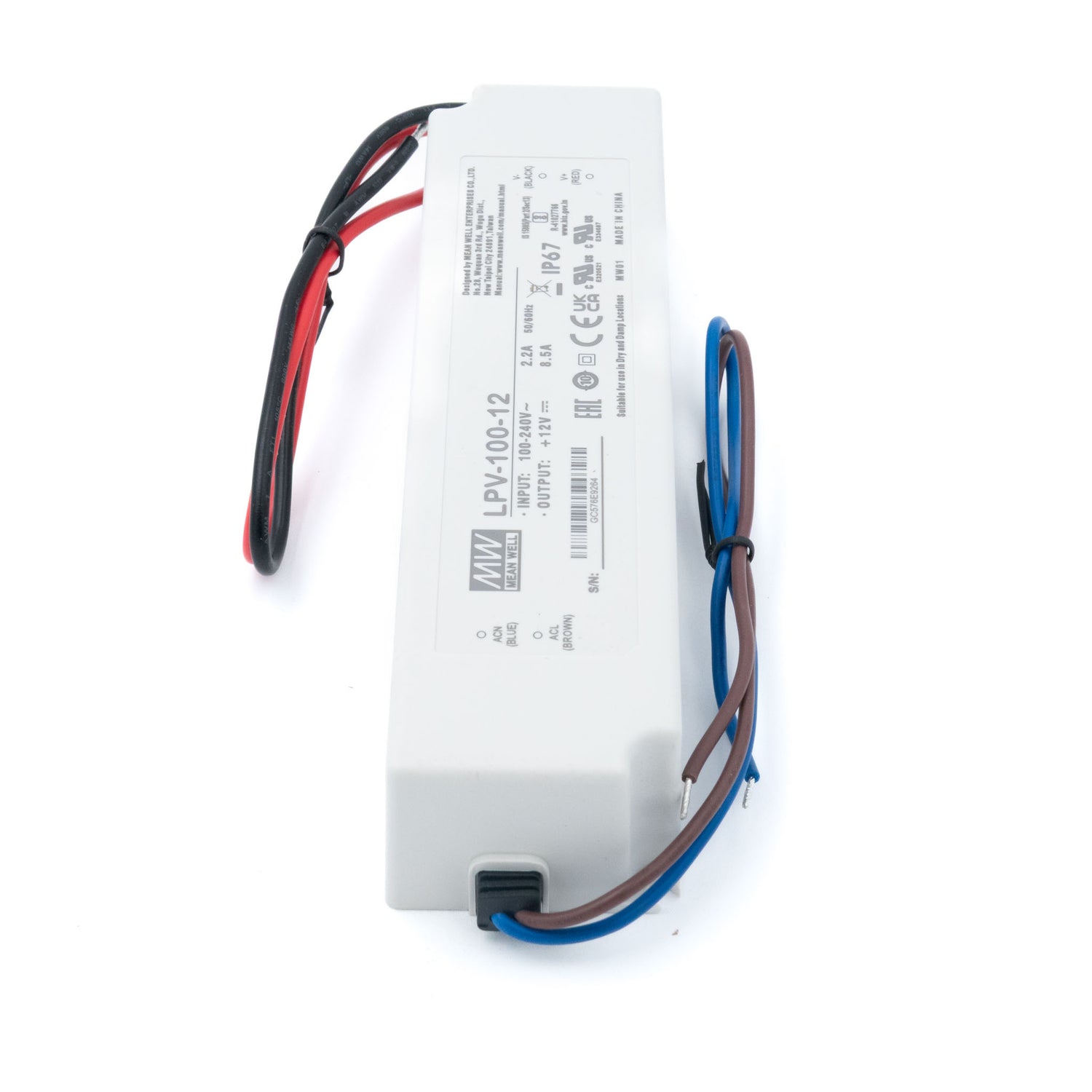

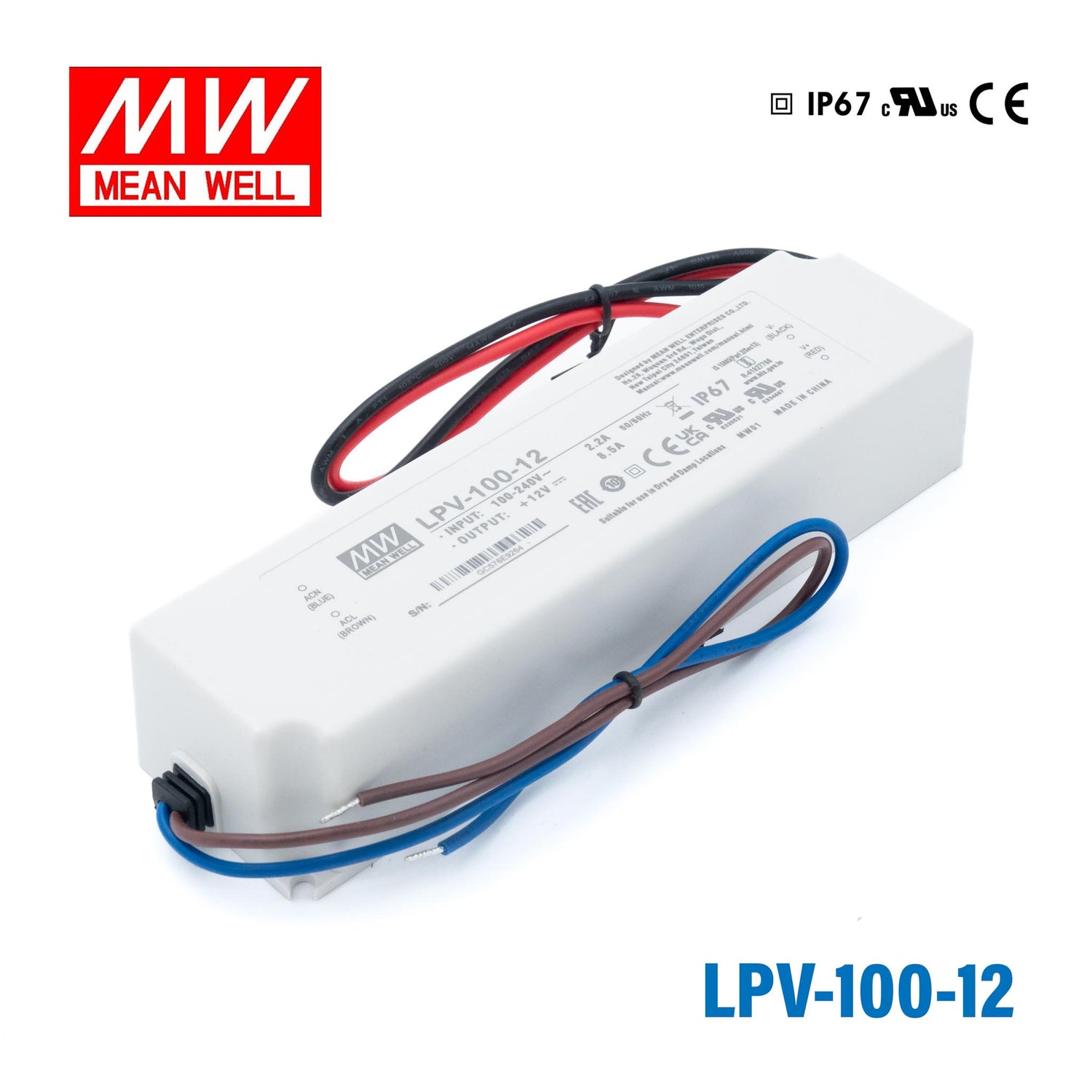

Mean Well LPV-100-12 LED Driver — 102W 12V 8.5A IP67 Waterproof

Constant Voltage, CE/EAC/UL Certified, 90-264VAC Universal Input, 2-Year Warranty
SKU:
LPV-100-12
Model
Please for Pricing
|

Description

Mean Well LPV-100-12 LED Driver — 102W 12V 8.5A IP67 Waterproof

The Mean Well LPV-100-12 is a 102W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 8.5A and carries CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-100-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

  • Constant voltage output: 12V DC at up to 8.5A (102W max)
  • IP67 waterproof and dustproof — suitable for outdoor installations
  • Universal AC input: 90-264VAC
  • Certifications: CE, EAC, UL
  • Wide operating temperature: -25°C to +70°C
  • Built-in protections: short circuit, overload, over-voltage
  • Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.63 kg
  • 2-year Mean Well warranty

Specifications

Model LPV-100-12
Output Power 102W
Output Voltage 12V DC
Output Current 8.5A
Operation Mode Constant Voltage
Input Voltage Range 90-264VAC
IP Rating IP67 Waterproof
Certifications CE, EAC, UL
Operating Temperature -25°C to +70°C
Dimensions (L × W × H) 190.0 × 52.0 × 37.0 mm
Weight 0.63 kg
Warranty 2 Years

Applications

  • LED signage and electronic displays
  • Architectural and decorative LED lighting
  • Outdoor and landscape LED installations
  • Stage and theater LED lighting
  • LED strip and tape lighting

Specifications
  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    102 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    8.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    2 Year
  • Length
    19 cm
  • Width
    5.2 cm
  • Height
    3.7 cm
  • Weight
    0.63 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the LPV-100-12 suitable for outdoor LED strip installations?

Yes. The LPV-100-12 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water up to 1 meter, making it well suited for covered outdoor signage, landscape accent lighting, and exterior architectural strips running at 12V.

How many meters of 12V LED strip can the LPV-100-12 power?

The LPV-100-12 delivers 102W at 12V. To find the maximum length, divide 102W by your strip's rated wattage per meter — for example, a 10 W/m strip yields up to 10.2 meters, while a 14.4 W/m strip yields about 7 meters. Always verify your strip's rated power per meter before sizing.

Can the LPV-100-12 work with both 120V and 240V mains supplies?

Yes. Its universal input range of 90–264 VAC covers both 120V North American and 240V European/international mains without any manual switching or adapter.

What is the operating temperature range of the LPV-100-12?

The LPV-100-12 operates from -25°C to +70°C, allowing use in cold outdoor environments as well as moderately warm enclosures. Sustained operation near the upper end of that range may require derating; consult the full datasheet for derating curves.

How does the LPV-100-12 compare to the LPV-150-12 for the same 12V application?

Both output 12V DC, but they differ in capacity and input requirements: the LPV-100-12 supplies 102W / 8.5A on a 90–264 VAC input, while the LPV-150-12 supplies 120W / 10A but requires a narrower 180–305 VAC input. Choose the LPV-100-12 when you need 120V compatibility; choose the LPV-150-12 when higher current at 12V is needed and 200V-class mains are available.
