Mean Well

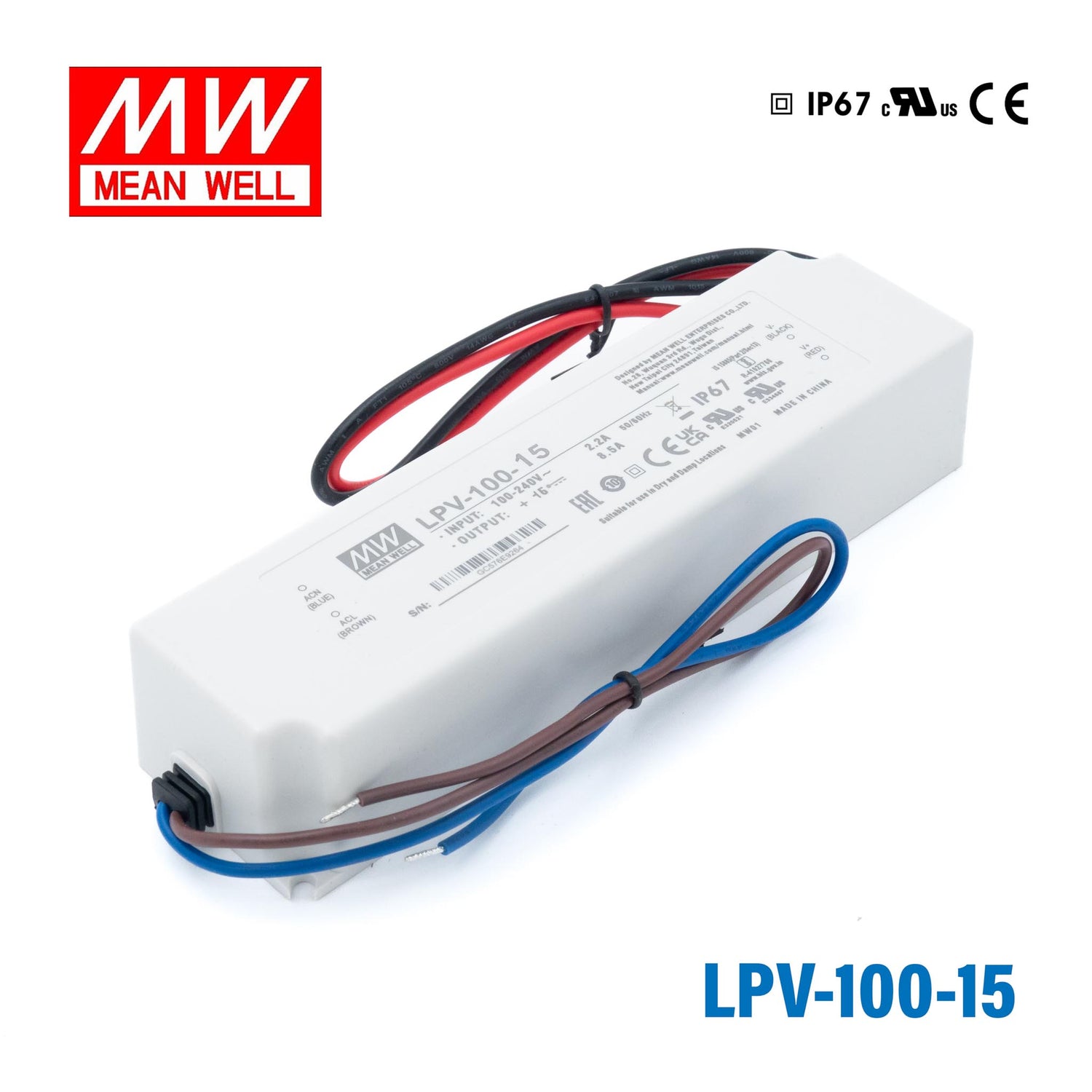

Mean Well LPV-100-15 LED Driver — 100.5W 15V 6.7A IP67 Waterproof

Constant Voltage, CE/EAC/UL Certified, 90-264VAC Universal Input, 2-Year Warranty
SKU:
LPV-100-15
Model
Please for Pricing
|

Description

Mean Well LPV-100-15 LED Driver — 100.5W 15V 6.7A IP67 Waterproof

The Mean Well LPV-100-15 is a 100.5W, 15V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 15V DC output at up to 6.7A and carries CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-100-15 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

  • Constant voltage output: 15V DC at up to 6.7A (100.5W max)
  • IP67 waterproof and dustproof — suitable for outdoor installations
  • Universal AC input: 90-264VAC
  • Certifications: CE, EAC, UL
  • Wide operating temperature: -25°C to +70°C
  • Built-in protections: short circuit, overload, over-voltage
  • Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.61 kg
  • 2-year Mean Well warranty

Specifications

Model LPV-100-15
Output Power 100.5W
Output Voltage 15V DC
Output Current 6.7A
Operation Mode Constant Voltage
Input Voltage Range 90-264VAC
IP Rating IP67 Waterproof
Certifications CE, EAC, UL
Operating Temperature -25°C to +70°C
Dimensions (L × W × H) 190.0 × 52.0 × 37.0 mm
Weight 0.61 kg
Warranty 2 Years

Applications

  • LED signage and electronic displays
  • Architectural and decorative LED lighting
  • Outdoor and landscape LED installations
  • Stage and theater LED lighting

Specifications
  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    100.5 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    6.7 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    2 Year
  • Length
    19 cm
  • Width
    5.2 cm
  • Height
    3.7 cm
  • Weight
    0.61 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What types of LED loads is the LPV-100-15 designed for?

The LPV-100-15 outputs a constant 15V DC at up to 6.7A (100.5W total), making it suited for 15V LED strips and modular LED signage panels that require a voltage rail above the common 12V standard. Its IP67 rating also makes it usable in semi-outdoor or covered wet-location signage.

Can the LPV-100-15 be used in a humid or wet outdoor environment?

The IP67 rating means the unit is fully dust-tight and can withstand temporary water immersion, so it is appropriate for covered outdoor installations and humid environments such as garden feature lighting or exterior channel-letter signage using 15V strips.

How many meters of 15V LED strip can the LPV-100-15 support?

With 100.5W available at 15V, divide by your strip's rated wattage per meter to find the limit — a 10 W/m strip allows roughly 10 meters, and a 7.5 W/m strip allows about 13 meters. Always confirm the exact rated power per meter printed on your strip before finalising the run length.

Is the LPV-100-15 certifed for North American markets?

Yes. The LPV-100-15 holds CE, EAC, and UL certifications, so it meets requirements for both North American (UL) and European/Eurasian (CE/EAC) markets.

How does the LPV-100-15 differ from the LPV-60-15 for 15V applications?

The LPV-100-15 provides 100.5W at 6.7A, while the LPV-60-15 provides 60W at 4A — both at 15V with the same IP67 rating and 90–264 VAC input. The LPV-100-15 is the better choice when total LED load exceeds 60W; the LPV-60-15 is adequate for lighter loads and saves space and cost.
