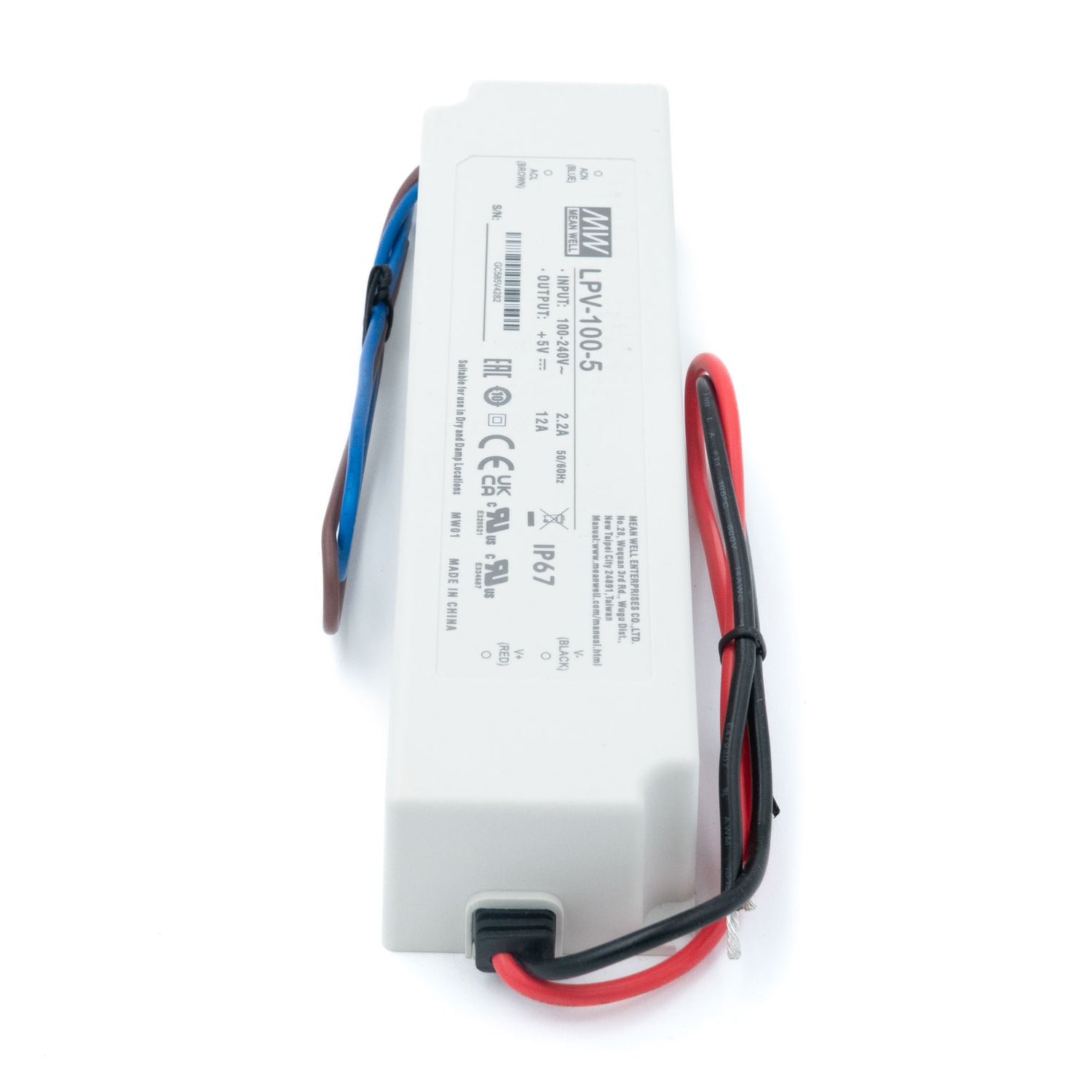

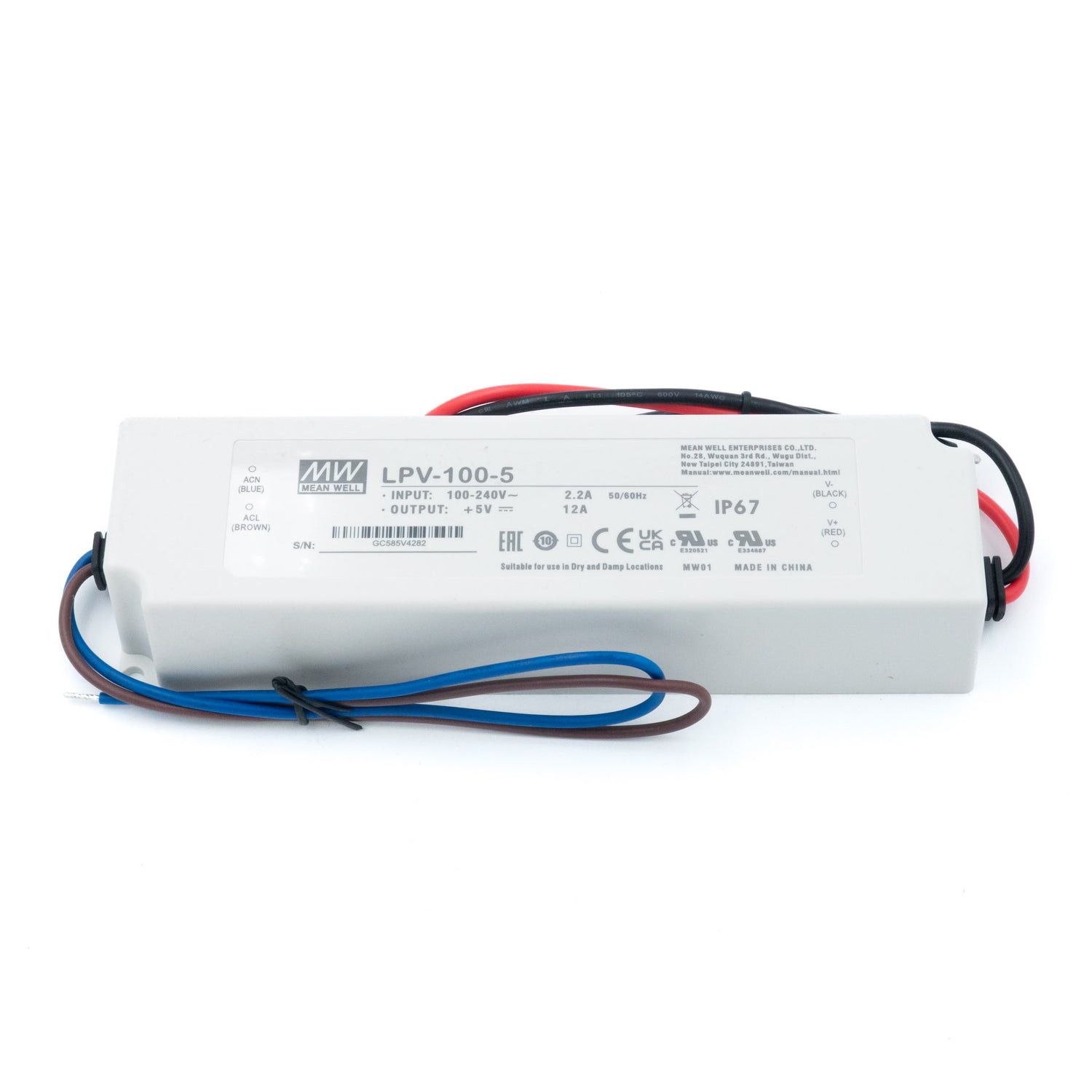

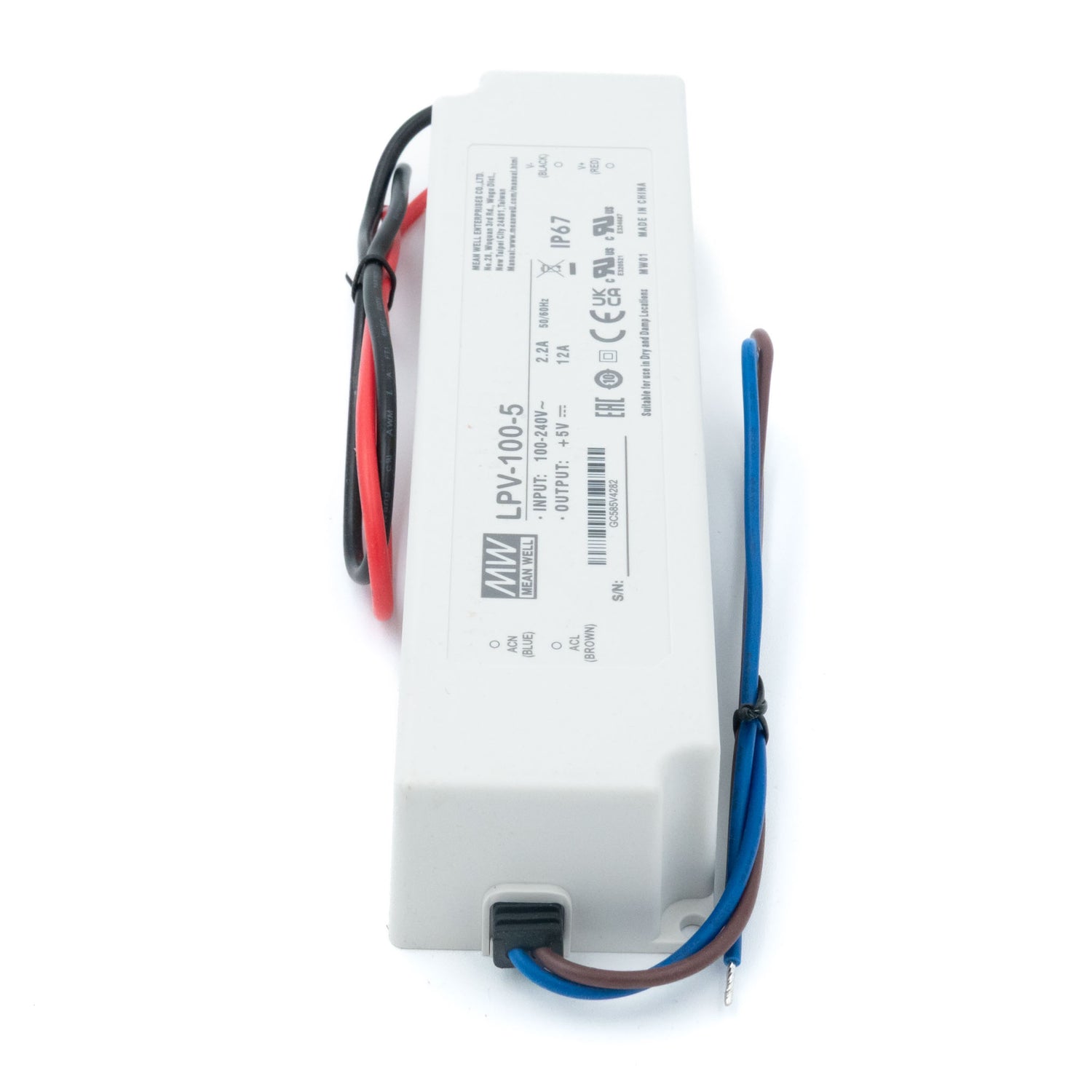

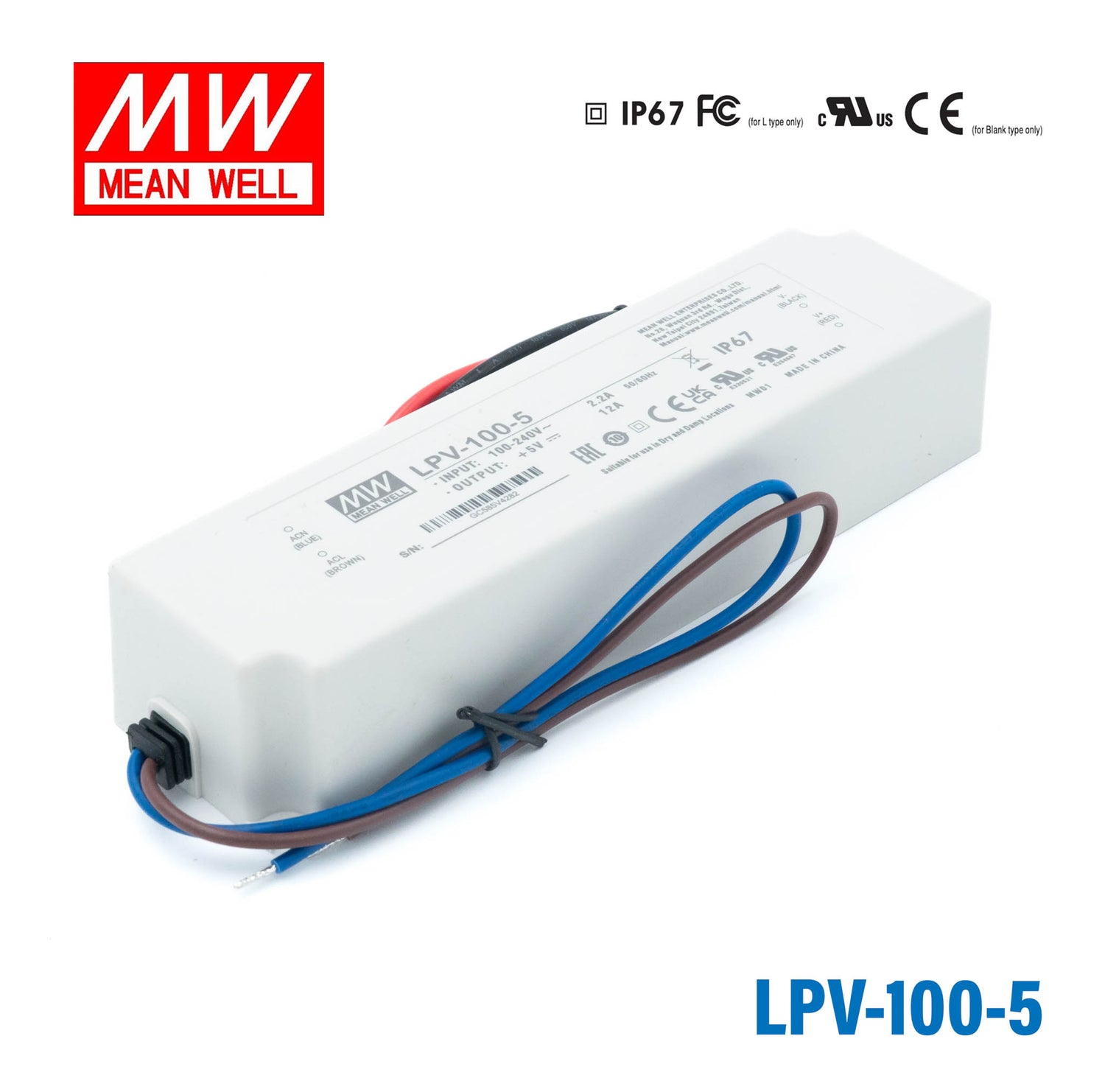

Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
Please Login for Pricing
Description
Description
Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
The Mean Well LPV-100-5 is a 60W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 12A and carries CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-100-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- Constant voltage output: 5V DC at up to 12A (60W max)
- IP67 waterproof and dustproof — suitable for outdoor installations
- Universal AC input: 90-264VAC
- Certifications: CE, EAC, UL
- Wide operating temperature: -25°C to +70°C
- Built-in protections: short circuit, overload, over-voltage
- Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.61 kg
- 2-year Mean Well warranty
Specifications
| Model | LPV-100-5 |
| Output Power | 60W |
| Output Voltage | 5V DC |
| Output Current | 12A |
| Operation Mode | Constant Voltage |
| Input Voltage Range | 90-264VAC |
| IP Rating | IP67 Waterproof |
| Certifications | CE, EAC, UL |
| Operating Temperature | -25°C to +70°C |
| Dimensions (L × W × H) | 190.0 × 52.0 × 37.0 mm |
| Weight | 0.61 kg |
| Warranty | 2 Years |
Applications
- LED signage and electronic displays
- Architectural and decorative LED lighting
- Outdoor and landscape LED installations
- Stage and theater LED lighting
- LED strip and tape lighting
- LED pixel and addressable lighting (5V systems)
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED applications use a 5V DC supply?
The LPV-100-5 outputs 5V DC at up to 12A (60W), which is the standard supply voltage for addressable/digital LED strips such as WS2812B and SK6812 types commonly used in decorative displays, indoor signage, and pixel-mapped installations. Ensure your total strip load does not exceed 60W.
How many meters of 5V addressable LED strip can the LPV-100-5 support?
The LPV-100-5 provides 60W at 5V. Divide 60W by your strip's wattage per meter — a 5V strip at 9W/m (e.g., 30 LEDs/m at full white) allows roughly 6.6 meters, while a strip at 6W/m supports about 10 meters. Always verify the rated power per meter for your specific strip at full brightness.
Is the LPV-100-5 suitable for outdoor pixel displays or exterior decorative installations?
Yes. The IP67 rating provides full dust protection and temporary-immersion resistance, so the driver can be installed in covered outdoor sign boxes or weatherproof enclosures supporting exterior 5V LED pixel displays. The operating range of -25°C to +70°C also accommodates most outdoor climates.
Why does the LPV-100-5 show only 60W when the series family is nominally 100W?
The LPV-100 series is named for its form factor, not a fixed 100W output at every voltage. At 5V the maximum deliverable power is 60W (5V × 12A), because the output current is capped at 12A — which is the limit of the design at this lower voltage. Other members of the LPV-100 series at higher voltages deliver up to 102W.
Does the LPV-100-5 accept 120V and 240V mains without modification?
Yes. The universal input range of 90–264 VAC means the LPV-100-5 operates on both 120V North American and 230–240V international mains with no jumpers or switches to change.
