Mean Well

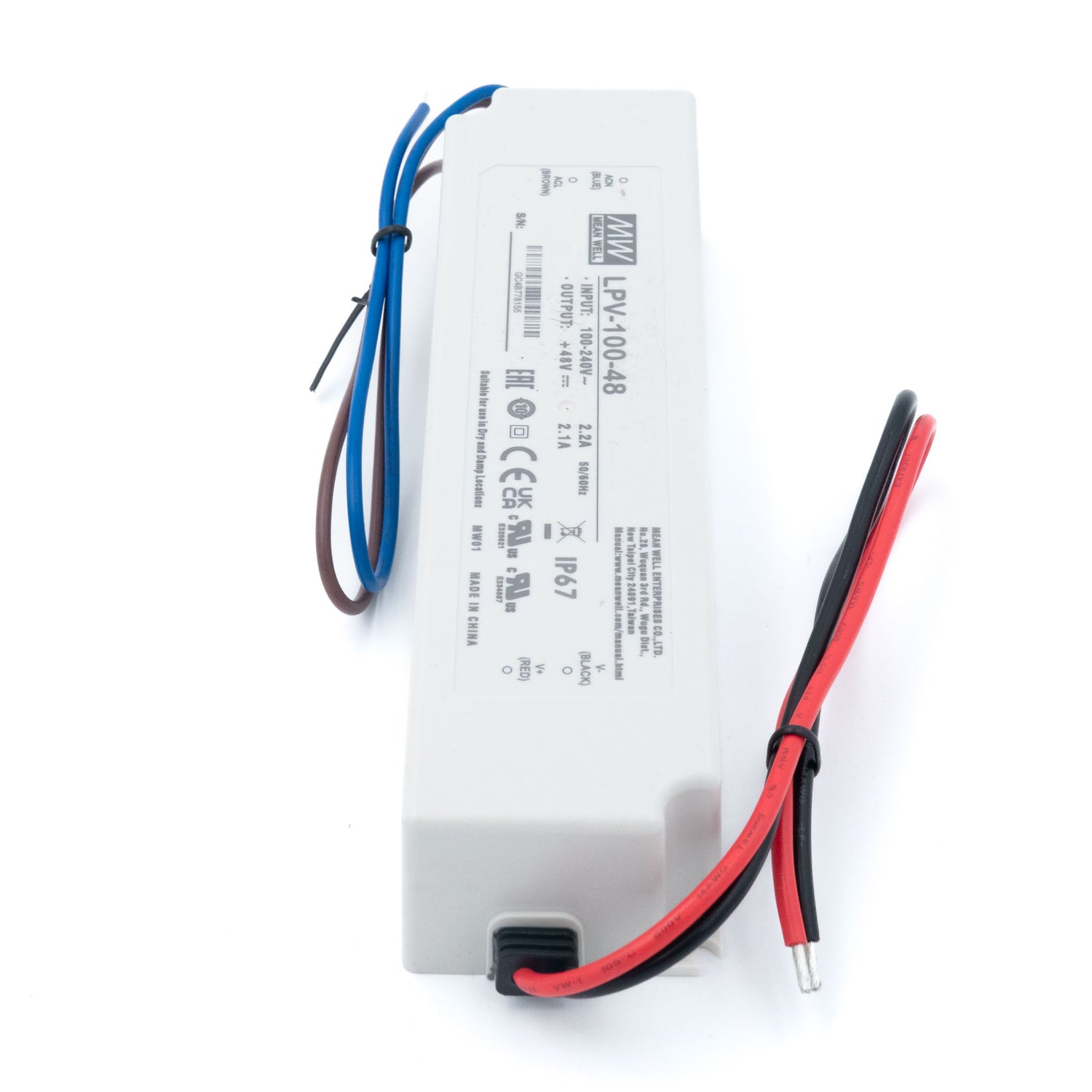

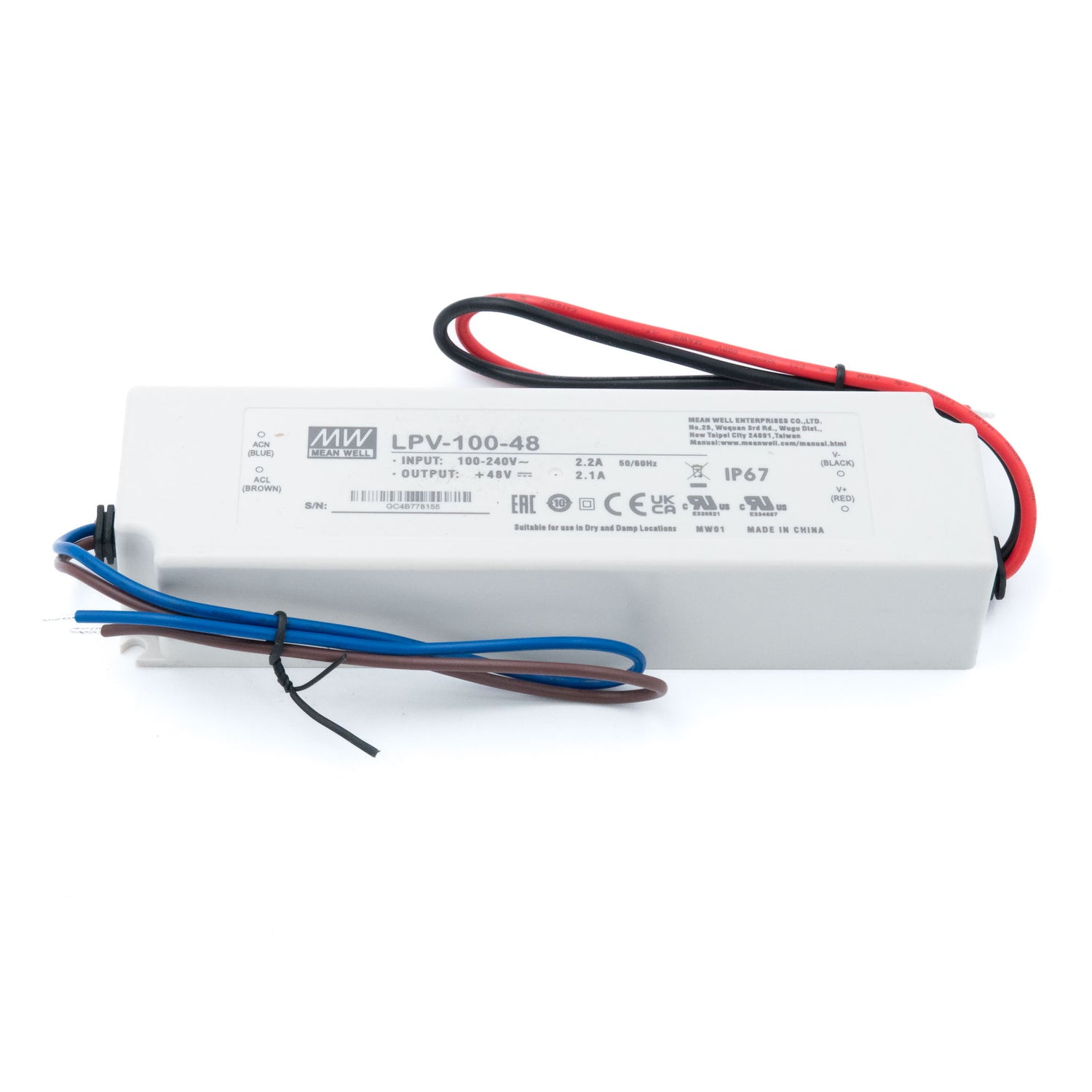

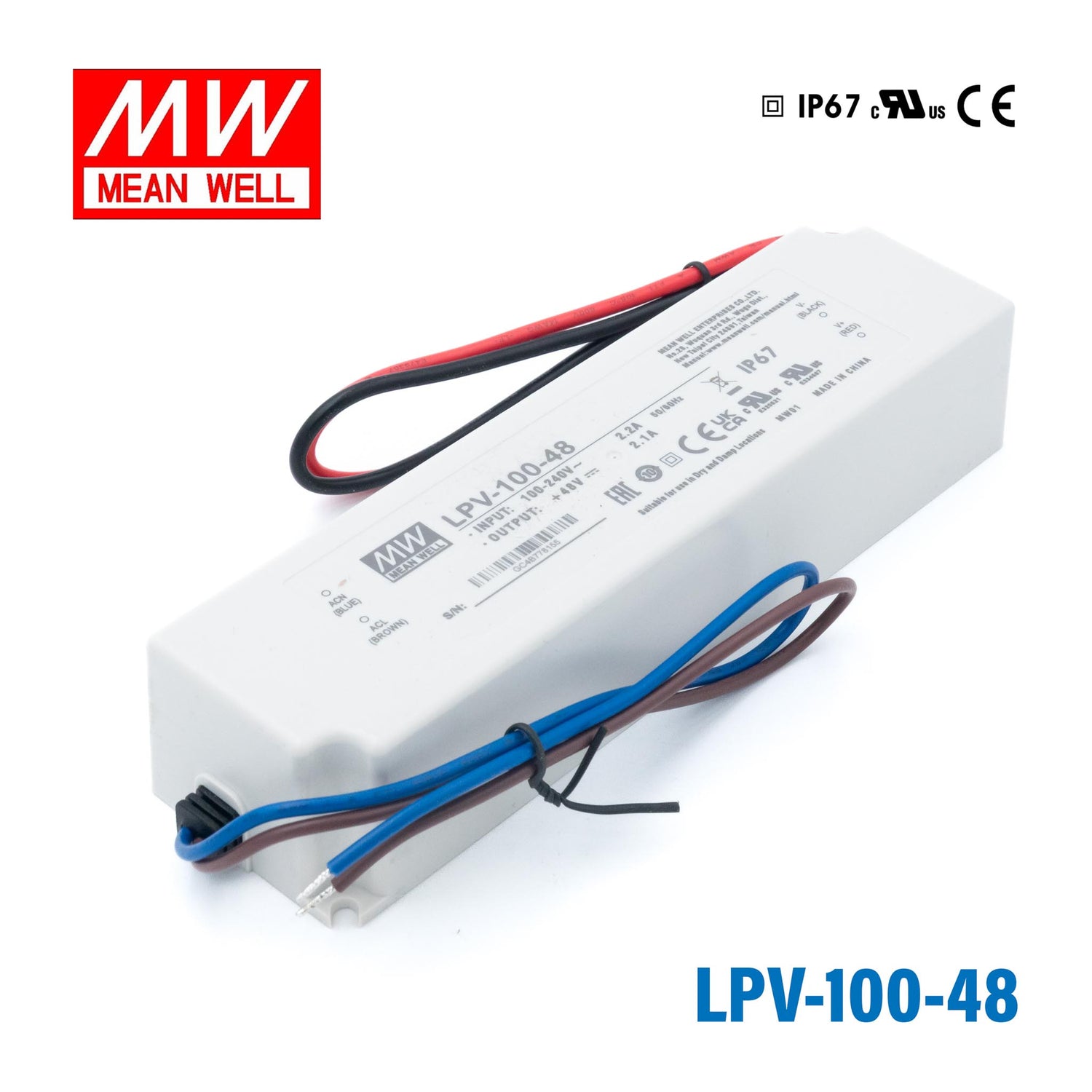

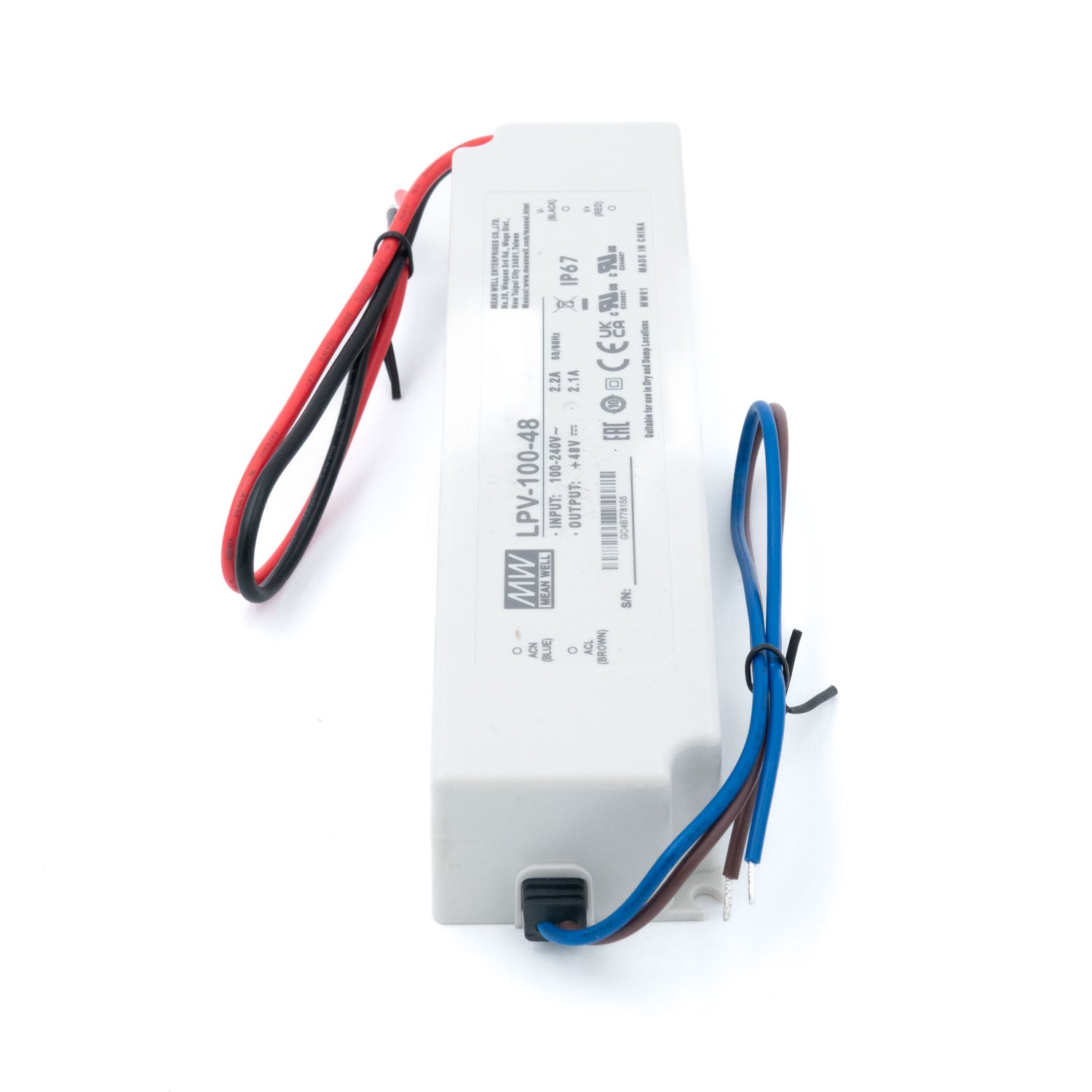

Mean Well LPV-100-48 LED Driver — 100.8W 48V 2.1A IP67 Waterproof

Constant VoltageCE/EAC/UL Certified90-264VAC Universal Input2-Year Warranty
SKU LPV-100-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

LPV-100-48
In stock
|

Overview

LPV-100-48 is the 48V output model of this series: rated current 2.1A, rated power 100.8W, typical efficiency 89%.

Features

  • Constant voltage design
  • Universal AC input / Full range
  • Fully encapsulated with IP67 level (Note.7)
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Fully isolated plastic case
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Display devices for decorative & advertising accessories (Note.11)
  • General-purpose electronics operated in dusty or damp environments
  • 2 years warranty

Specifications

LPV-100-48Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
2.1A
CURRENT RANGE
0 ~ 2.1A
RATED POWER
100.8W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±5.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
HOLD UP TIME (Typ.)
50ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT
2.2A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.)
COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
190*52*37mm (L*W*H)
PACKING
0.61Kg;20pcs/13.2Kg/0.57CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Suitable for indoor use or outdoor use without direct sunlight exposure.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
  10. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  11. 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
  12. 12. R-41027766 (GZ factory) only for 12V,24V / R-62002178 (ID factory) for 5V~48V

Technical drawings

LPV-100-48 Mechanical Specification
Mechanical Specification
LPV-100-48 Recommend Mounting Direction
Recommend Mounting Direction
LPV-100-48 Block Diagram
Block Diagram
LPV-100-48 Derating Curve
Derating Curve

Downloads

FAQ

Is 48V the right choice for long LED strip runs to minimise voltage drop?

A 48V supply has a lower operating current for the same wattage compared to 12V or 24V, which reduces resistive voltage drop along the cable feeding the strip. The LPV-100-48 delivers 100.8W at only 2.1A, so cable losses are smaller — though you still need LED strip or modules specifically rated for 48V input.

How many meters of 48V LED strip can the LPV-100-48 drive?

With 100.8W at 48V available, divide by your strip's wattage per meter — a 48V strip at 10 W/m supports roughly 10 meters, and at 14.4 W/m about 7 meters. Always check the rated power per meter on your specific 48V strip before sizing the run.

Can the LPV-100-48 be used outdoors in rain-exposed locations?

The LPV-100-48 is fully encapsulated to IP67, meaning it is dust-tight and protected against temporary water immersion. Mean Well rates it for indoor use or outdoor use without direct sunlight exposure, so outdoor installations should be shaded from the sun, and the waterproof installation cautions in Mean Well's user manual should be followed before use.

What input voltage range does the LPV-100-48 accept?

The LPV-100-48 accepts 90–264 VAC, covering standard 120V North American and 230V European mains without any adjustment.
