What dimming methods are built into the NPF-90D-15?

The NPF-90D-15 has built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control. All three methods are natively supported without additional hardware.

Can the NPF-90D-15 drive dimmable 15V LED modules in a commercial aquarium display?

The NPF-90D-15 delivers 90W at 15V with a constant current of 6A and a CC range of 9–15V, suitable for 15V LED modules used in commercial aquarium or vivarium displays where adjustable light intensity is needed. Its IP67 rating handles the high-humidity aquarium environment.

How does the NPF-90D-15 compare to the NPF-90D-12 and NPF-90D-20?

All three are 90W dimmable IP67 drivers with 3-in-1 dimming and the same 171.0 × 63.0 × 37.5 mm dimensions. They differ in output voltage and current: NPF-90D-12 is 12V at 7.5A, NPF-90D-15 is 15V at 6A, and NPF-90D-20 is 20V at 4.5A. Match the model to your LED module’s rated voltage.

Is the NPF-90D-15 rated for outdoor wet locations?

Yes. The NPF-90D-15 carries IP67 protection against dust and temporary water immersion and operates from -40°C to +85°C, making it suitable for direct outdoor wet location installation.

What certifications does the NPF-90D-15 carry?

The NPF-90D-15 holds CB, CCC, CE, EAC, ENEC, and UL certifications and includes a 5-year manufacturer warranty.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

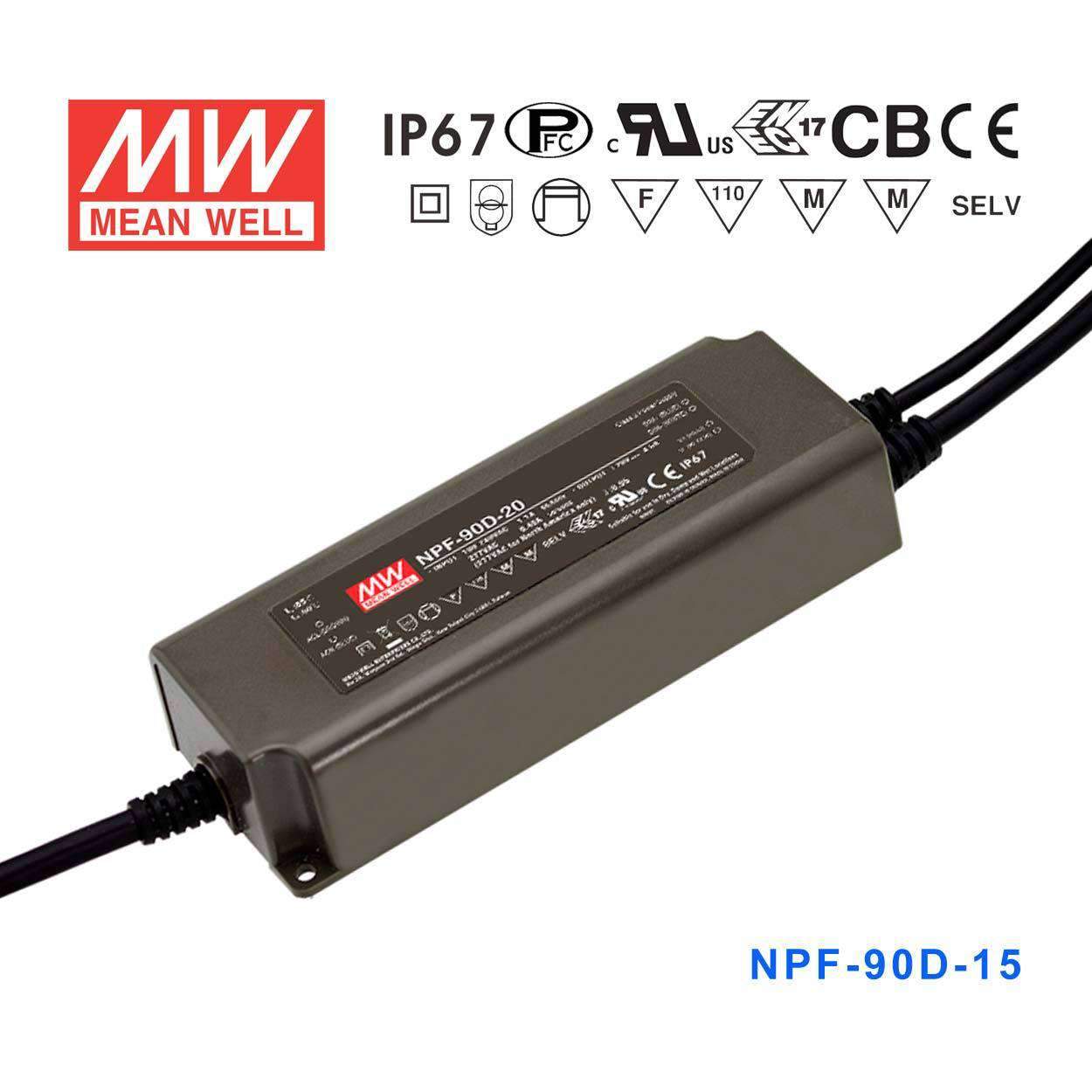

Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable 6A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU NPF-90D-15

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

NPF-90D-15

NPF-40-15 Fixed output Backorder

NPF-120-15 Fixed output Backorder

NPF-120D-15 Dimmable Backorder

NPF-40D-15 Dimmable Backorder

NPF-60-15 Fixed output Backorder

NPF-60D-15 Dimmable Backorder

NPF-90-15 Fixed output Backorder

NPF-90D-15 Dimmable Backorder

Product variants

Notify me when it's back in stock

The NPF-90D is a 90W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 15V
✓ Rated output current: 6A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable 1.67A	90.18W	54V	1.67A	IP67	View
Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable 1.88A	90.24W	48V	1.88A	IP67	View
Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable 2.15A	90.3W	42V	2.15A	IP67	View
Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable 2.5A	90W	36V	2.5A	IP67	View
Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable 3A	90W	30V	3A	IP67	View
Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable 3.75A	90W	24V	3.75A	IP67	View
Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable 4.5A	90W	20V	4.5A	IP67	View
Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable 7.5A	90W	12V	7.5A	IP67	View
