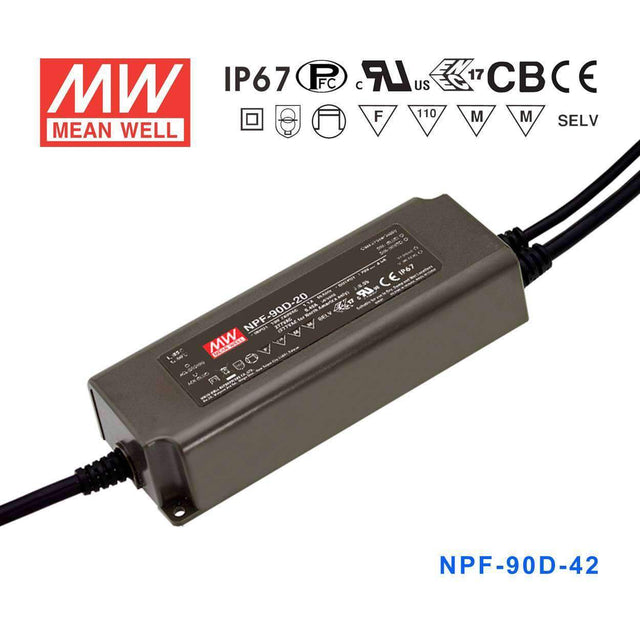

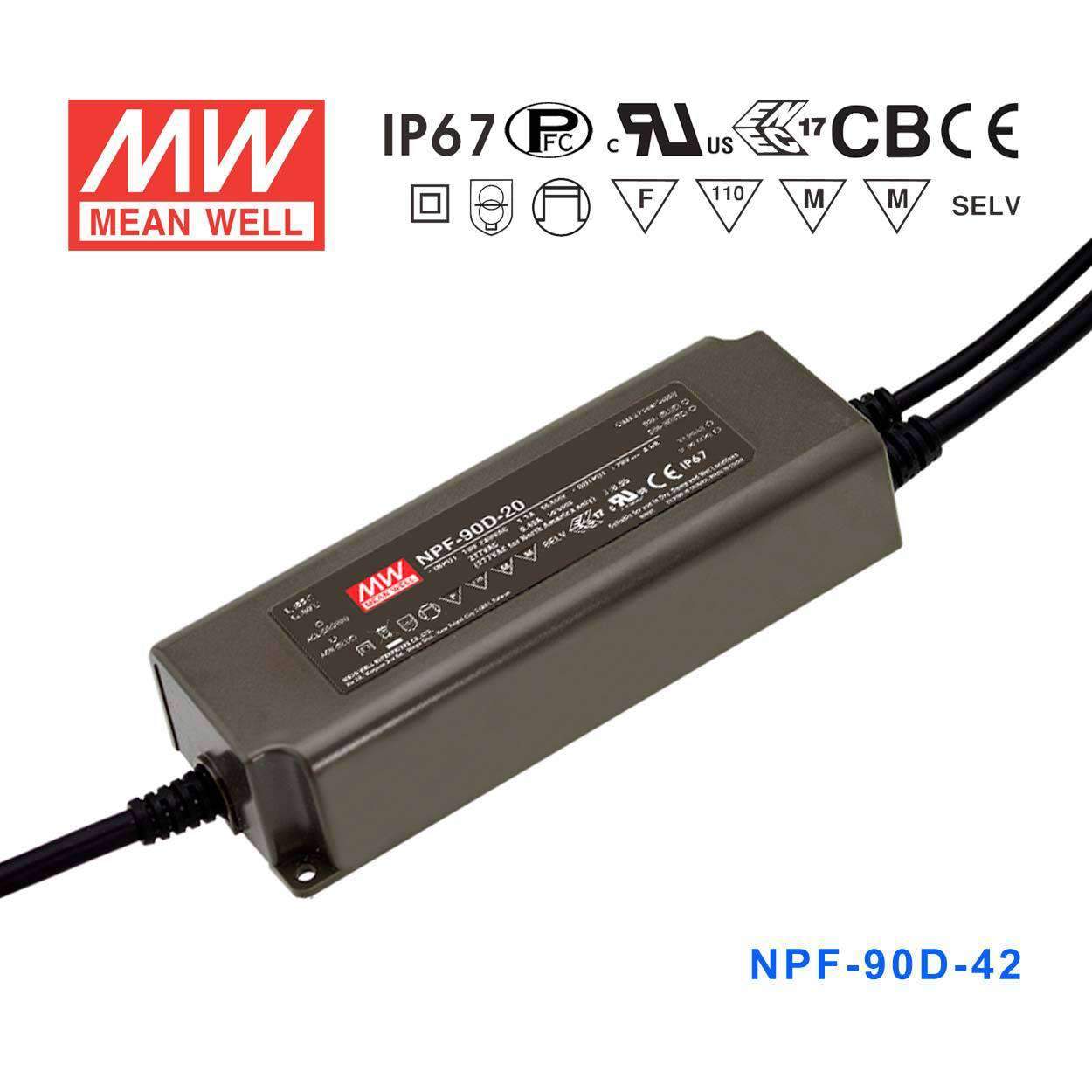

Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable
Please Login for Pricing
Description
Description
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90.3 Watt
-
Output Voltage42 Volt
-
Rated Current2.15 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length17.1 cm
-
Width6.3 cm
-
Height3.75 cm
-
Weight0.77 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming signals are supported by the NPF-90D-42?
The NPF-90D-42 has built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control, all natively integrated without external dimming accessories.
Can the NPF-90D-42 power dimmable 42V LED fixtures in outdoor architectural lighting of a commercial building facade?
The NPF-90D-42 delivers 90.3W at 42V with a constant current of 2.15A and a CC voltage range of 25–42V, making it appropriate for 42V LED facade lighting modules where dimming for evening scenes or energy management is needed. Its IP67 rating supports direct outdoor mounting.
How does the NPF-90D-42 compare to the NPF-90D-36 and NPF-90D-48?
All three are 90W dimmable IP67 drivers with 3-in-1 dimming and the same 171.0 × 63.0 × 37.5 mm form factor, differing in output voltage: NPF-90D-36 is 36V at 2.5A (CC range 21–36V), NPF-90D-42 is 42V at 2.15A (CC range 25–42V), and NPF-90D-48 is 48V at 1.88A (CC range 28–48V).
Is the NPF-90D-42 appropriate for outdoor use in high-rainfall regions?
Yes. The NPF-90D-42 is IP67-rated for full dust protection and resistance to temporary water immersion, and its -40°C to +85°C operating range covers humid, high-rainfall outdoor environments.
Does the NPF-90D-42 require an earth ground connection?
No. The NPF-90D-42 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, so protective earth grounding is not required.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | View |
| Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | View |
| Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable | 90W | 15V | 6A | IP67 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | View |
