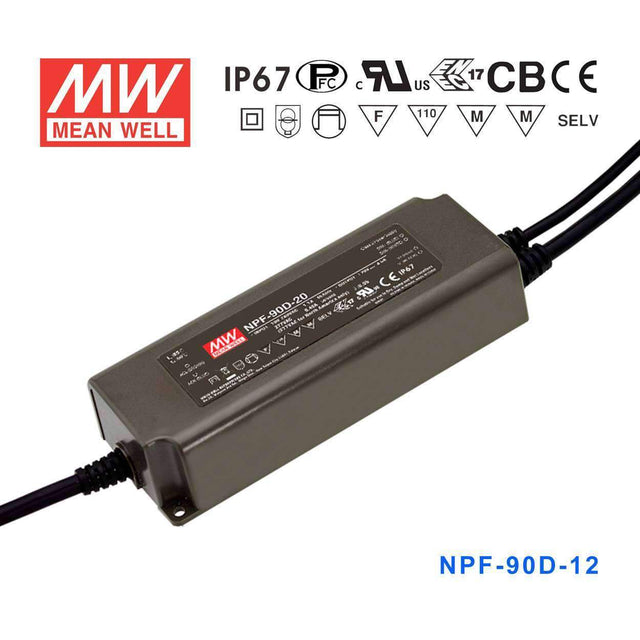

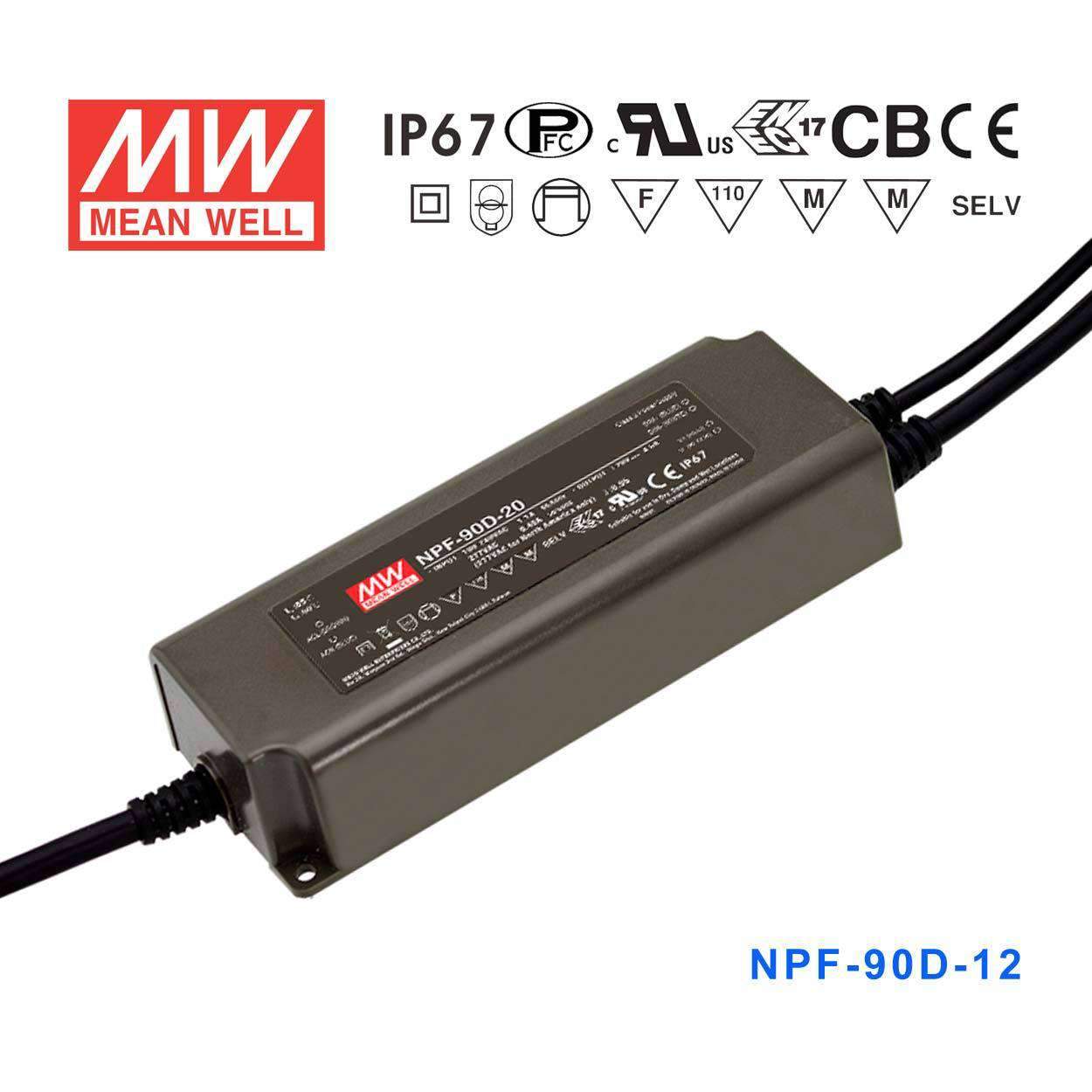

Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable

fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
NPF-90D-12

|

Description

Features

Fully isolated plastic case with IP67 level
Built-in active PFC function
Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)]
Standby power consu,ption <0.5W
Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance) for D type
Typical lifetime >50000hours
5 years warranty

General Specification

AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) COLD START 60A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410
Over current protection 95%~108% constant current limiting, auto-recovery
Over-voltage protection 110%~140% rated output voltage
Over temp. protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -40~+85°C
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending];
Design refers to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547,
[NPF-40(D)/60(D)/120(D)/pending]
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output NPF-90:
SJTW 16AWGx2C (30cm)
NPF-90D:
SJTW 16AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 171 x 63 x 37.5

Specifications

  • Brand
    Mean Well
  • Series
    NPF Series
  • Power Rating
    90 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    7.5 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    17.1 cm
  • Width
    6.3 cm
  • Height
    3.75 cm
  • Weight
    0.77 kg
