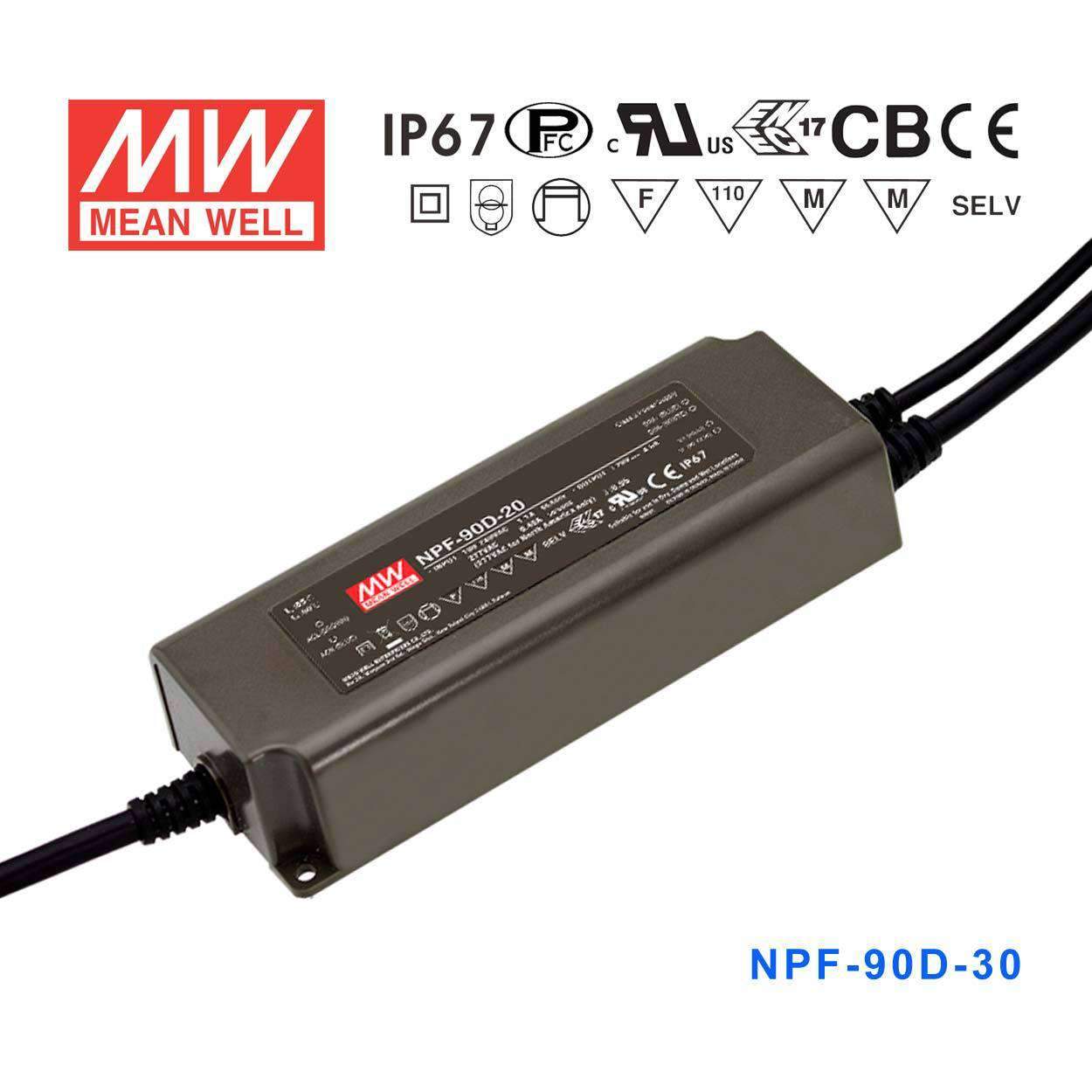

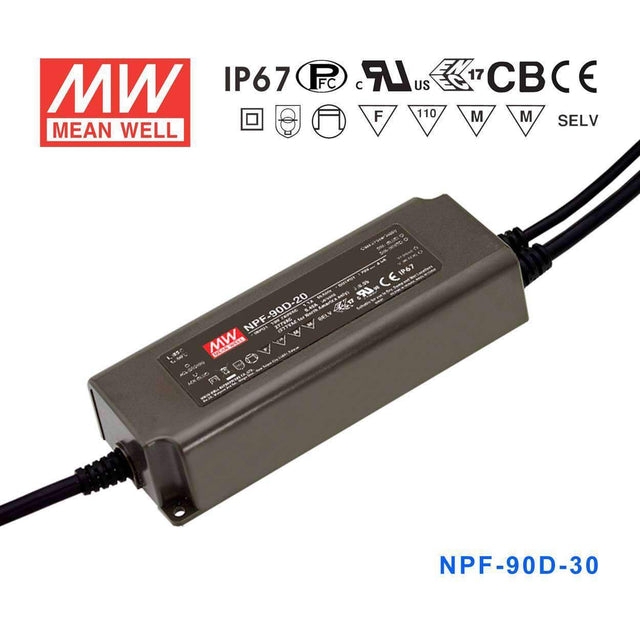

Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable
Please Login for Pricing
Description
Description
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage30 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length17.1 cm
-
Width6.3 cm
-
Height3.75 cm
-
Weight0.77 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods does the NPF-90D-30 support?
The NPF-90D-30 integrates built-in 3-in-1 dimming, accepting PWM signal, 0–10V analog, and resistance control simultaneously, without any external add-on dimmer.
Can the NPF-90D-30 drive dimmable 30V LED street lights in a smart city lighting project?
Yes. The NPF-90D-30 delivers 90W at 30V with a constant current of 3A and a CC range of 18–30V, matching many 30V LED street light modules. Its built-in 0–10V dimming input is compatible with smart city dimming controllers that use analog 0–10V control.
How does the NPF-90D-30 differ from the NPF-60D-30?
Both are dimmable 30V IP67 drivers with 3-in-1 dimming, but the NPF-60D-30 is rated at 60W and 2A (150.0 × 53.0 × 35.0 mm, 0.49 kg), while the NPF-90D-30 is rated at 90W and 3A (171.0 × 63.0 × 37.5 mm, 0.77 kg). Choose based on the LED load’s wattage requirement.
Is the NPF-90D-30 suitable for outdoor installation in coastal humid environments?
Yes. The NPF-90D-30 is rated IP67 for dust and temporary water immersion protection, and its -40°C to +85°C range accommodates coastal humidity and temperature variation. For permanent salt-air exposure, protecting field wiring and terminal connections separately is advisable.
Does the NPF-90D-30 carry UL certification?
Yes. The NPF-90D-30 holds UL, CB, CCC, CE, EAC, and ENEC certifications, with a 5-year manufacturer warranty.
