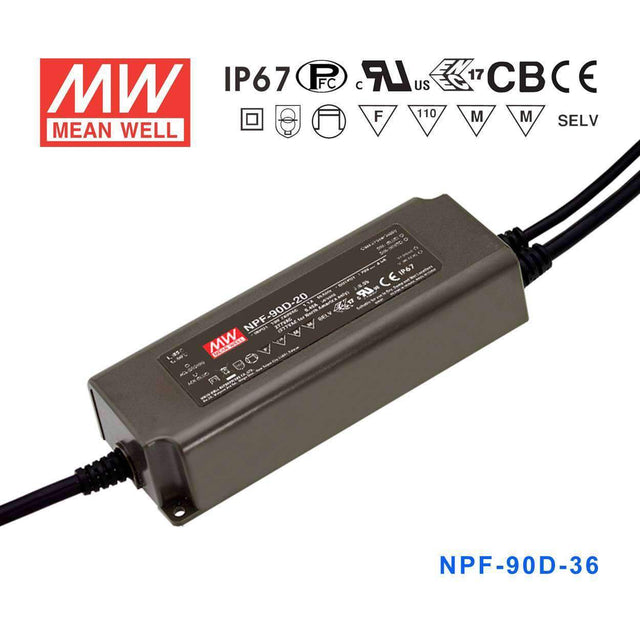

Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable
Please Login for Pricing
Description
Description
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length17.1 cm
-
Width6.3 cm
-
Height3.75 cm
-
Weight0.77 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming inputs does the NPF-90D-36 accept?
The NPF-90D-36 features built-in 3-in-1 dimming supporting PWM signal, 0–10V analog, and resistance control, all integrated without external hardware.
Is the NPF-90D-36 suitable for dimmable 36V LED modules in outdoor sports stadium lighting?
The NPF-90D-36 delivers 90W at 36V with a constant current of 2.5A and a CC voltage range of 21–36V, which covers 36V LED modules used in outdoor sports field and stadium fixtures. Built-in dimming allows intensity control for different event lighting requirements, and IP67 protects against weather exposure.
How does the NPF-90D-36 compare to the NPF-60D-36 and NPF-90-36?
The NPF-60D-36 is a dimmable 36V driver at 60.12W and 1.67A in a 150.0 × 53.0 × 35.0 mm body. The NPF-90D-36 is the dimmable 36V version at 90W and 2.5A in a 171.0 × 63.0 × 37.5 mm body. The NPF-90-36 matches the 90D-36 electrically but lacks built-in dimming.
Can the NPF-90D-36 be installed in an outdoor wall-mounted fixture without additional weather sealing?
Yes. With an IP67 waterproof rating and a -40°C to +85°C operating range, the NPF-90D-36 can be installed directly in outdoor wall-mounted fixtures exposed to rain and temperature extremes.
What certifications does the NPF-90D-36 carry?
The NPF-90D-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards and includes a 5-year manufacturer warranty.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | View |
| Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | View |
| Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable | 90W | 15V | 6A | IP67 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | View |
