What dimming methods does the NPF-90D-48 support?

The NPF-90D-48 includes built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control, all natively integrated without requiring an external dimmer.

Is the NPF-90D-48 suitable for driving dimmable 48V LED modules in outdoor tunnel lighting?

The NPF-90D-48 delivers 90.24W at 48V with a constant current of 1.88A and a CC voltage range of 28–48V, which covers many 48V LED tunnel or underpass lighting modules. Its IP67 rating and -40°C to +85°C range suit the damp, variable-temperature conditions inside road tunnels.

How does the NPF-90D-48 compare to the NPF-90D-54 and the NPF-60D-48?

NPF-60D-48 is a dimmable 48V, 60W, 1.25A driver in a 150.0 × 53.0 × 35.0 mm body. NPF-90D-48 is the 90W, 1.88A version at 171.0 × 63.0 × 37.5 mm. NPF-90D-54 is the higher-voltage sibling at 54V and 1.67A with the same 90W power and body size as the NPF-90D-48.

Can the NPF-90D-48 be used outdoors in a freeze-thaw climate without additional weatherproofing?

Yes. With IP67 waterproof protection and a -40°C to +85°C operating range, the NPF-90D-48 handles outdoor freeze-thaw cycles and precipitation without a secondary enclosure.

What certifications apply to the NPF-90D-48?

The NPF-90D-48 holds CB, CCC, CE, EAC, ENEC, and UL certifications and comes with a 5-year manufacturer warranty.

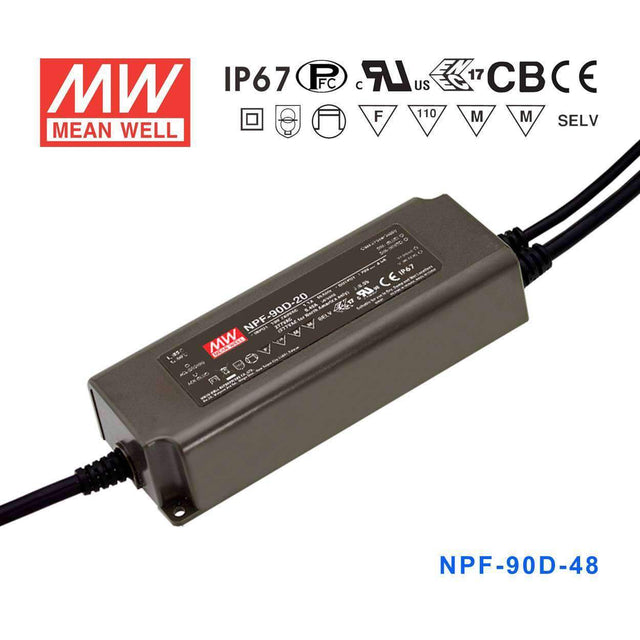

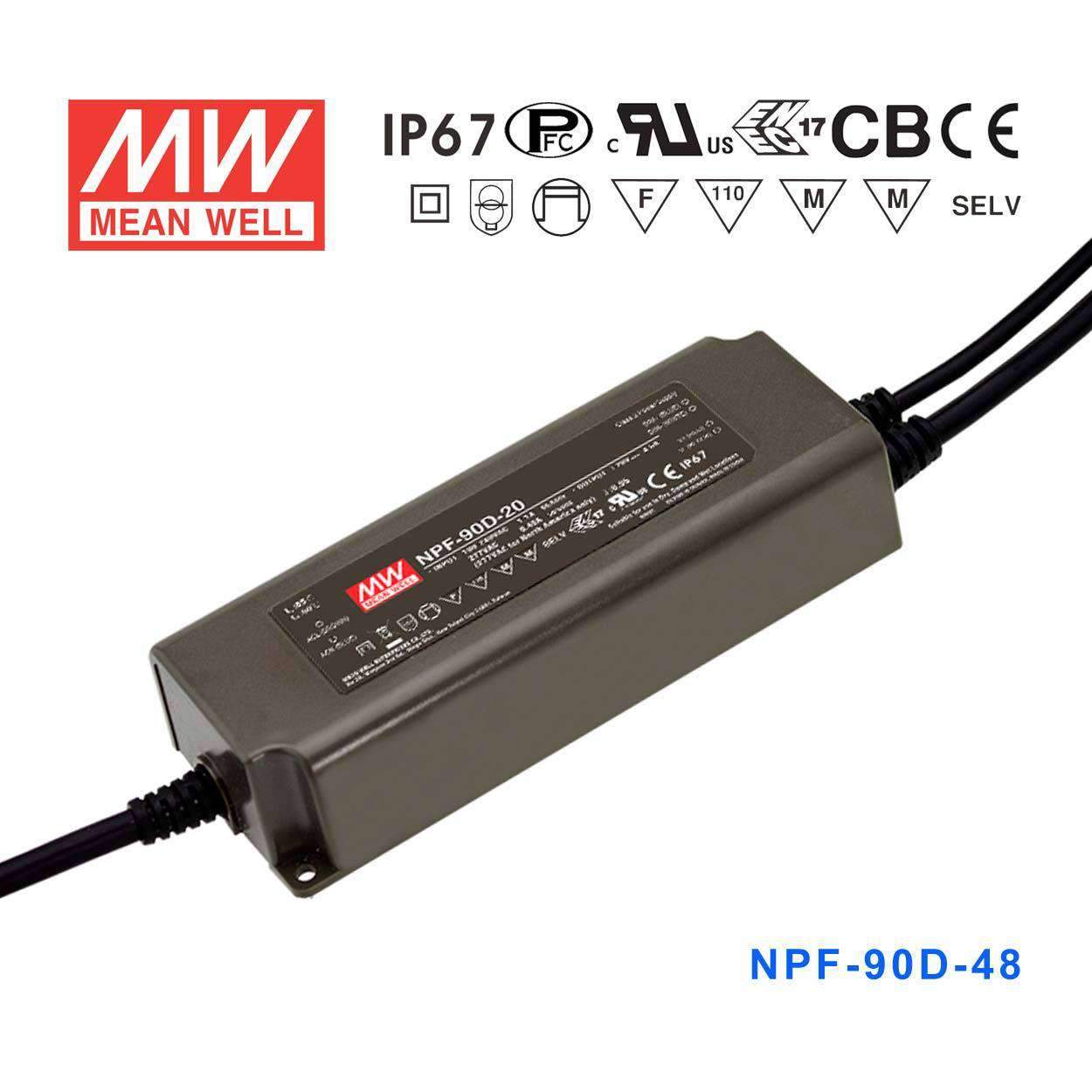

Mean Well NPF-90D-48 Power Supply - Constant Voltage + Constant Current LED Driver

The NPF-90D is a 90.24W Mean Well AC-DC LED driver (input: 90~305VAC, output: 48V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 48V
✓ Rated output current: 1.88A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable 1.67A	90.18W	54V	1.67A	IP67	View
Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable 2.15A	90.3W	42V	2.15A	IP67	View
Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable 2.5A	90W	36V	2.5A	IP67	View
Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable 3A	90W	30V	3A	IP67	View
Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable 3.75A	90W	24V	3.75A	IP67	View
Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable 4.5A	90W	20V	4.5A	IP67	View
Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable 6A	90W	15V	6A	IP67	View
Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable 7.5A	90W	12V	7.5A	IP67	View
