What dimming signals does the NPF-90D-54 accept?

The NPF-90D-54 integrates built-in 3-in-1 dimming, natively supporting PWM signal, 0–10V analog, and resistance control without external dimming accessories.

Can the NPF-90D-54 drive dimmable 54V LED modules in large outdoor high-mast lighting?

Yes. The NPF-90D-54 delivers 90.18W at 54V with a constant current of 1.67A and a CC voltage range of 32–54V, suitable for 54V constant-current LED modules used in high-mast or large-area outdoor lighting where dimming for energy savings or scene control is required. IP67 rating supports direct outdoor pole or fixture mounting.

How does the NPF-90D-54 compare to the NPF-90D-48 and NPF-90D-42?

All three are 90W dimmable IP67 drivers with built-in 3-in-1 dimming and a 171.0 × 63.0 × 37.5 mm form factor, differing only in output voltage and current: NPF-90D-42 is 42V at 2.15A, NPF-90D-48 is 48V at 1.88A, and NPF-90D-54 is 54V at 1.67A. Match the model to the LED string’s rated forward voltage.

Is the NPF-90D-54 suitable for outdoor installation in cold northern climates?

Yes. The NPF-90D-54 operates from -40°C to +85°C and carries IP67 waterproof protection, making it appropriate for direct outdoor installation in cold northern climates with heavy snow and sub-zero temperatures.

Does the NPF-90D-54 require a protective earth ground?

No. The NPF-90D-54 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, so no protective earth connection is needed.

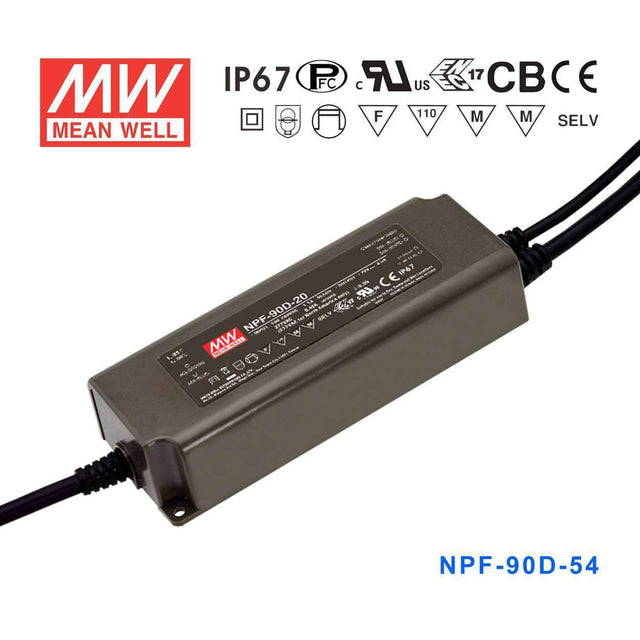

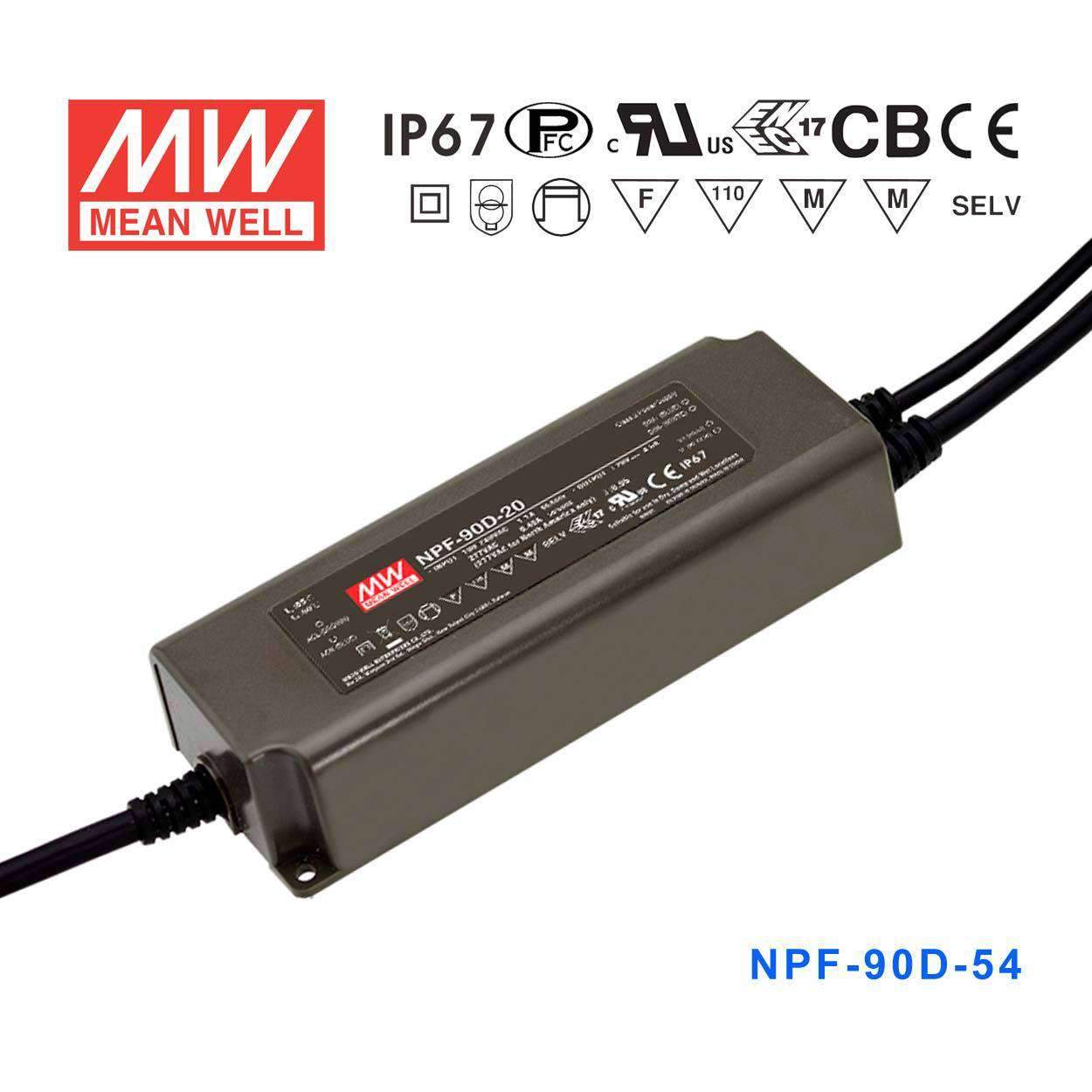

Mean Well NPF-90D-54 LED Driver | 90W 54V Dimmable Power Supply

The NPF-90D is a 90.18W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 1.67A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable 1.88A	90.24W	48V	1.88A	IP67	View
Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable 2.15A	90.3W	42V	2.15A	IP67	View
Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable 2.5A	90W	36V	2.5A	IP67	View
Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable 3A	90W	30V	3A	IP67	View
Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable 3.75A	90W	24V	3.75A	IP67	View
Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable 4.5A	90W	20V	4.5A	IP67	View
Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable 6A	90W	15V	6A	IP67	View
Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable 7.5A	90W	12V	7.5A	IP67	View

Please log in to write a review.

{ "id":8423870562603, "variants" :[{ "context":"default", "variant_id": 45636300013867, "sku":"NPF-90D-54", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage: 90~305VAC

✓ Output voltage: 54V

✓ Rated output current: 1.67A

✓ 3-in-1 dimming (0–10V / PWM / resistance)

✓ Class II design — no earth connection required

✓ Ingress protection: IP67

✓ Operating temperature: -40~+85°C

✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL

✓ 5 year warranty

Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable 1.67A
