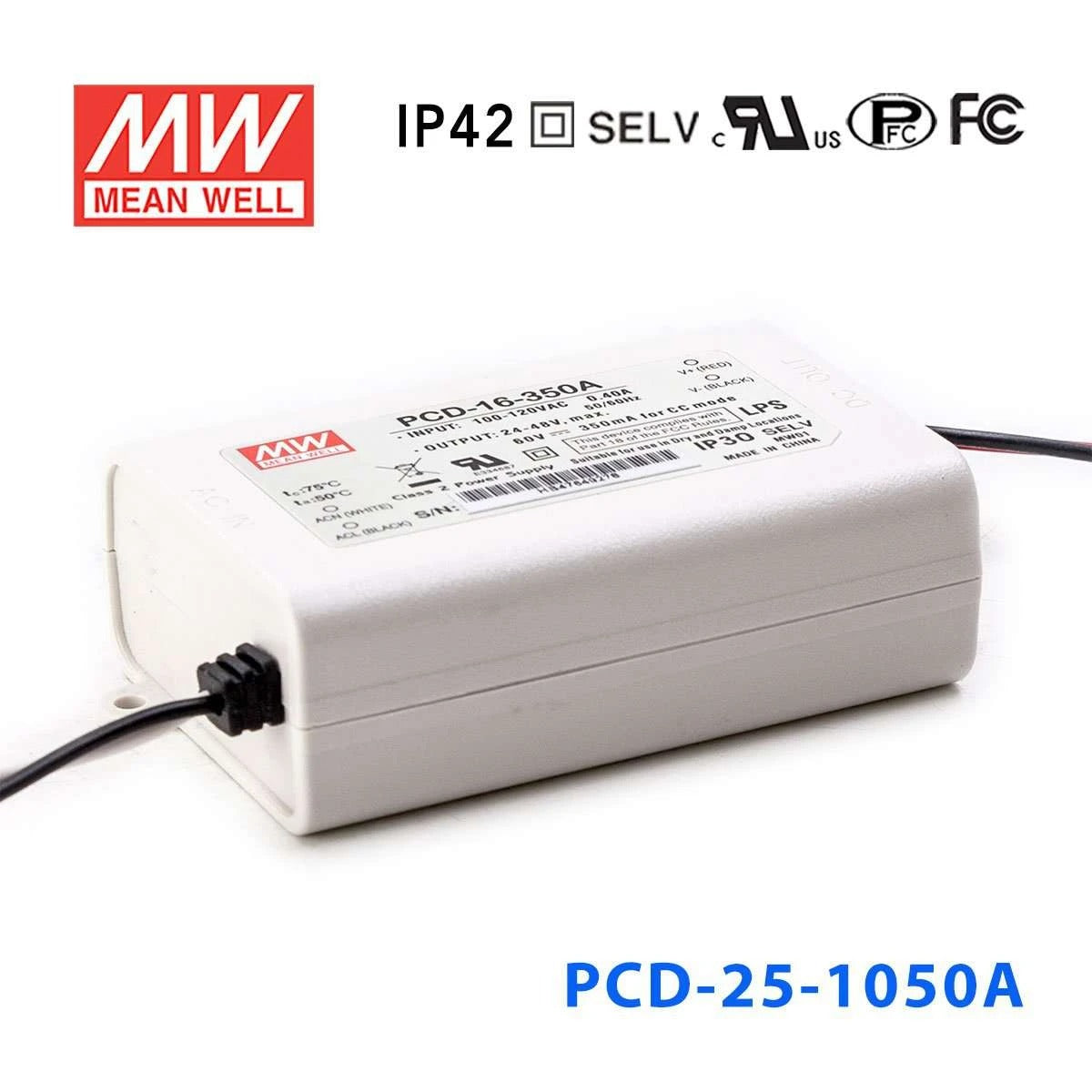

Mean Well PCD-25-1050A Power Supply 25W 1050mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-25-1050A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-25-1050A is the model of this series: rated current 1050mA, rated power 25.2W, typical efficiency 80.5%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-25-1050ASpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
16 ~ 24V
CURRENT ACCURACY
±5.0%
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.1
2.2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
80.5%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-25-1050A Mechanical Specification
Mechanical Specification
PCD-25-1050A Block Diagram
Block Diagram
PCD-25-1050A Derating Curve
Derating Curve
PCD-25-1050A Power Factor Characteristic
Power Factor Characteristic
PCD-25-1050A EFFICIENCY vs LOAD (PCD-25-350)
EFFICIENCY vs LOAD (PCD-25-350)
PCD-25-1050A P C D - 2 5 series
P C D - 2 5 series

Downloads

FAQ

Can I use the PCD-25-1050A for higher-output LED downlights?

Yes, if the downlight is designed for 1050mA constant current and the total LED forward-voltage requirement stays within 16-24V. This driver provides up to 25.2W, so the downlight's LED load must stay within that rating.

Is the PCD-25-1050A suitable for constant-current signage modules?

It can be used for signage modules when the module assembly requires 1050mA constant current and operates within the 16-24V constant-current range. It is not a constant-voltage supply, so it should not be selected for constant-voltage LED signage products.

Can this model run a small LED array at 1050mA?

Yes, if the small LED array is specified for 1050mA constant current and its total forward voltage falls between 16V and 24V. The exact number of LEDs depends on each LED forward voltage, and the overall load must stay within 25.2W.

How do I verify LED compatibility with the PCD-25-1050A?

Match the load to 1050mA constant current and keep the combined LED forward voltage inside the 16-24V constant-current range. Because this is a constant-current driver, it is used differently from a constant-voltage power supply.

What operating conditions is the PCD-25-1050A rated for?

This driver is IP42 approved and has an operating temperature range of -30C to +60C (refer to the derating curve). Those specs make it appropriate for protected conditions rather than open wet-location exposure.

How does the PCD-25-1050A compare with nearby PCD models?

At 25.2W, the PCD-25-1050A/B cover 16-24V, the PCD-25-1400A/B cover 12-18V, and the PCD-25-700A/B cover 24-36V, while the PCD-25-350A/B are 20.3W with a 40-58V range. The A versions are for 90-135VAC input and the B versions for 180-295VAC input.
