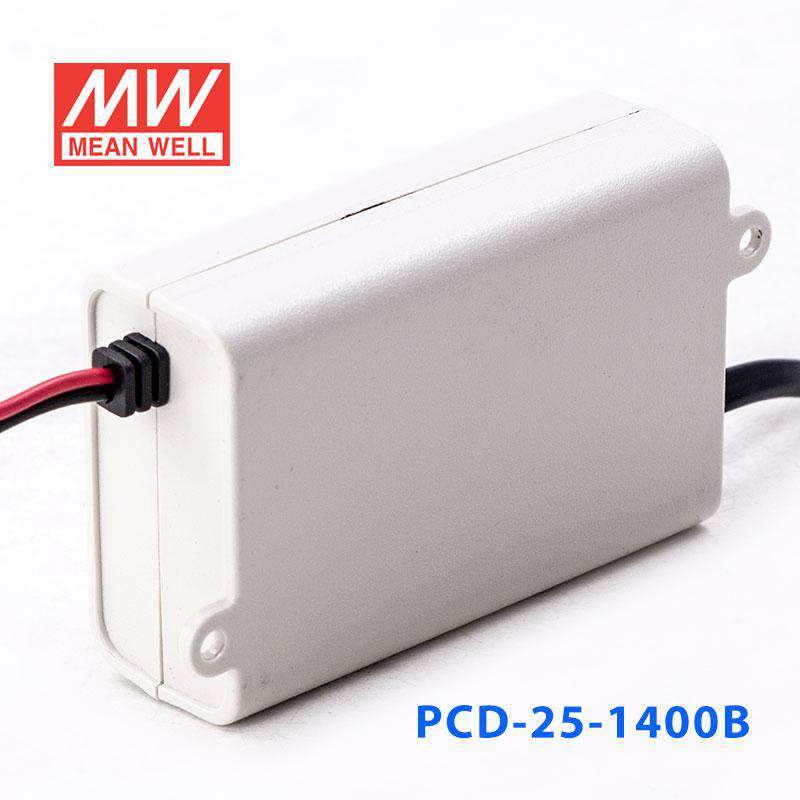

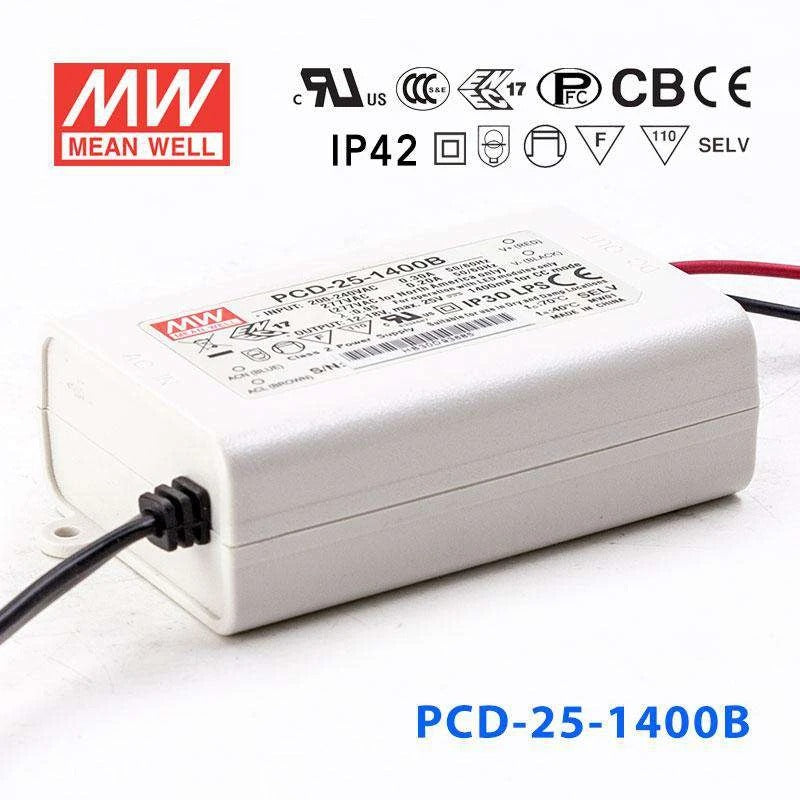

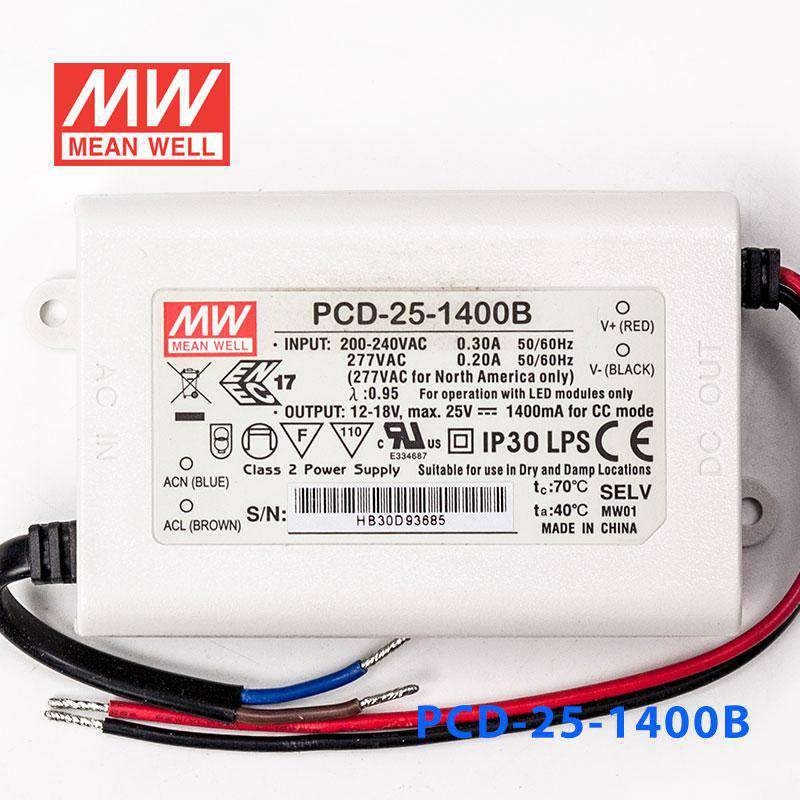

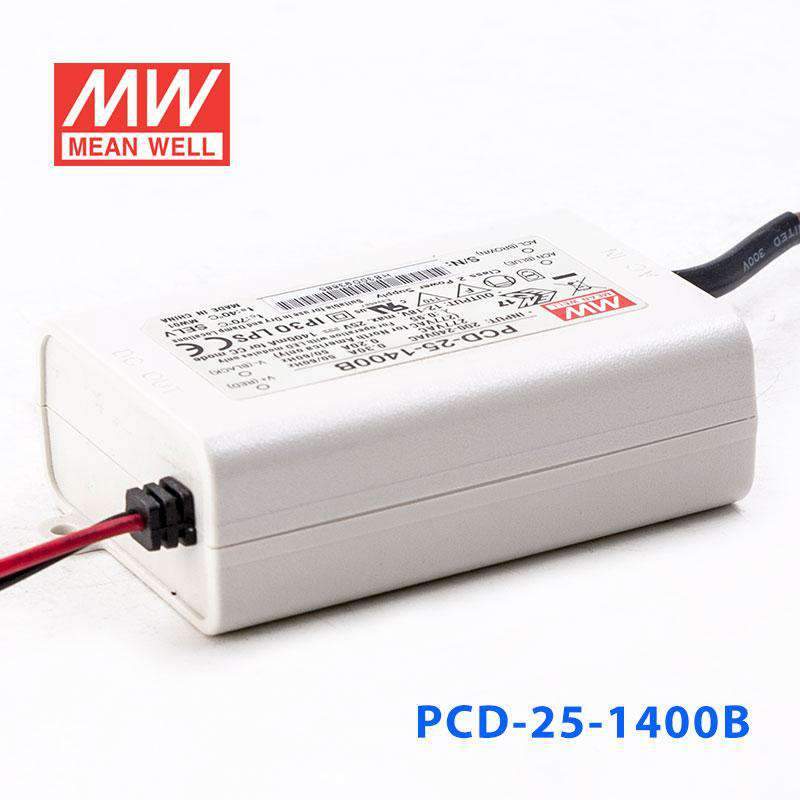

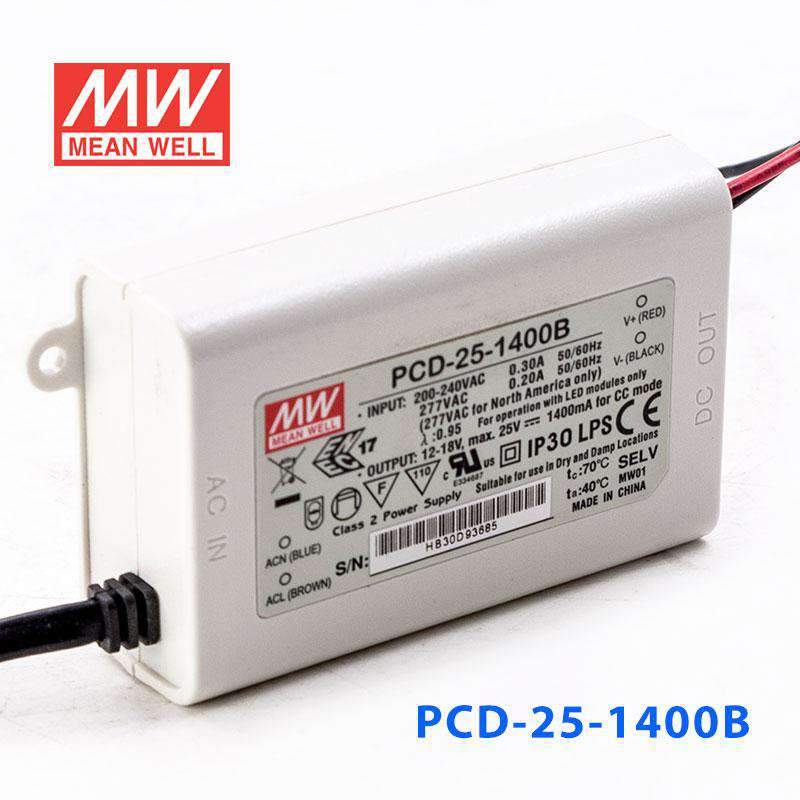

Mean Well PCD-25-1400B Power Supply 25W 1400mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-25-1400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-25-1400B is the model of this series: rated current 1400mA, rated power 25.2W, typical efficiency 81%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-25-1400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
12 ~ 18V
CURRENT ACCURACY
±5.0%
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.1
2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
25V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
81%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-25-1400B Mechanical Specification
Mechanical Specification
PCD-25-1400B Block Diagram
Block Diagram
PCD-25-1400B Derating Curve
Derating Curve
PCD-25-1400B Power Factor Characteristic
Power Factor Characteristic
PCD-25-1400B EFFICIENCY vs LOAD (PCD-25-350)
EFFICIENCY vs LOAD (PCD-25-350)
PCD-25-1400B P C D - 2 5 series
P C D - 2 5 series

Downloads

FAQ

Can I use the PCD-25-1400B for an LED downlight?

Yes, if the downlight is designed for a constant current driver at 1400mA and the LED load stays within the 12-18V constant current range. This model provides up to 25.2W, so it fits compact downlights that match those electrical limits.

Is the PCD-25-1400B suitable for signage LED modules?

It can be used for signage modules when the module string requires constant current operation at 1400mA and runs within 12-18V. Because this is a constant current driver, it is not a substitute for constant voltage signage power supplies.

Can this driver run a small high-current LED array?

Yes, this model is intended for constant current LED loads at 1400mA with a 12-18V working range. A small LED array can be a fit if its total forward voltage lands inside that range and the load stays within 25.2W.

How do I know if my LEDs are electrically compatible with the PCD-25-1400B?

Check that your LEDs need a constant current source at 1400mA and that the combined forward voltage falls within 12-18V. The number of LEDs depends on each LED's forward voltage, so this driver should be matched by current and total voltage rather than by a fixed LED count.

Where does the PCD-25-1400B fit within the PCD constant current series?

In the 25W group, the series includes 350mA models at 40-58V and 20.3W, 700mA models at 24-36V and 25.2W, 1050mA models at 16-24V and 25.2W, and 1400mA models at 12-18V and 25.2W. This PCD-25-1400B is the 1400mA, 12-18V, 25.2W option with 180-295VAC input.
