Mean Well

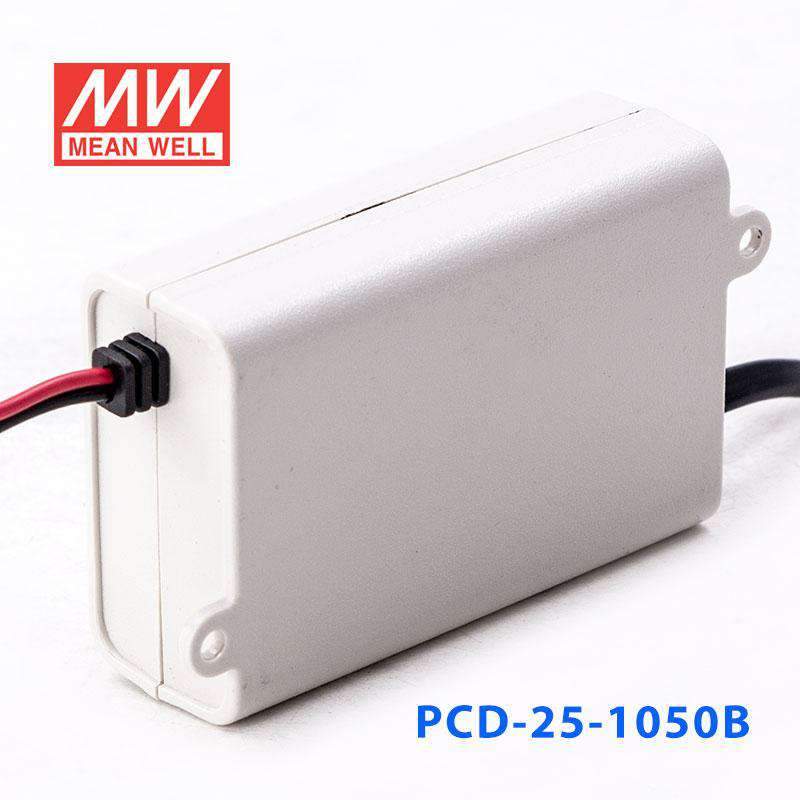

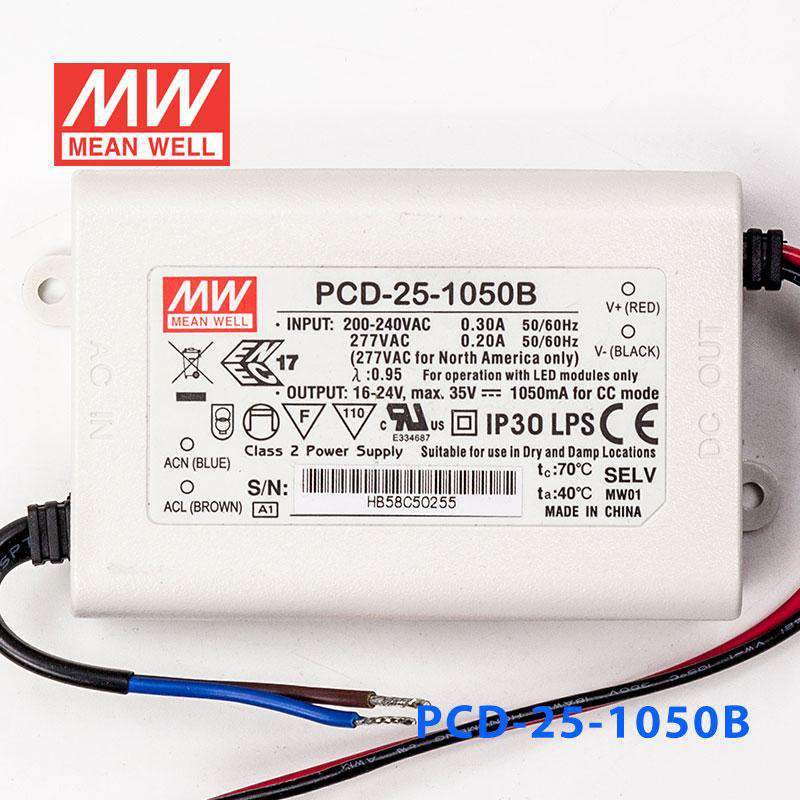

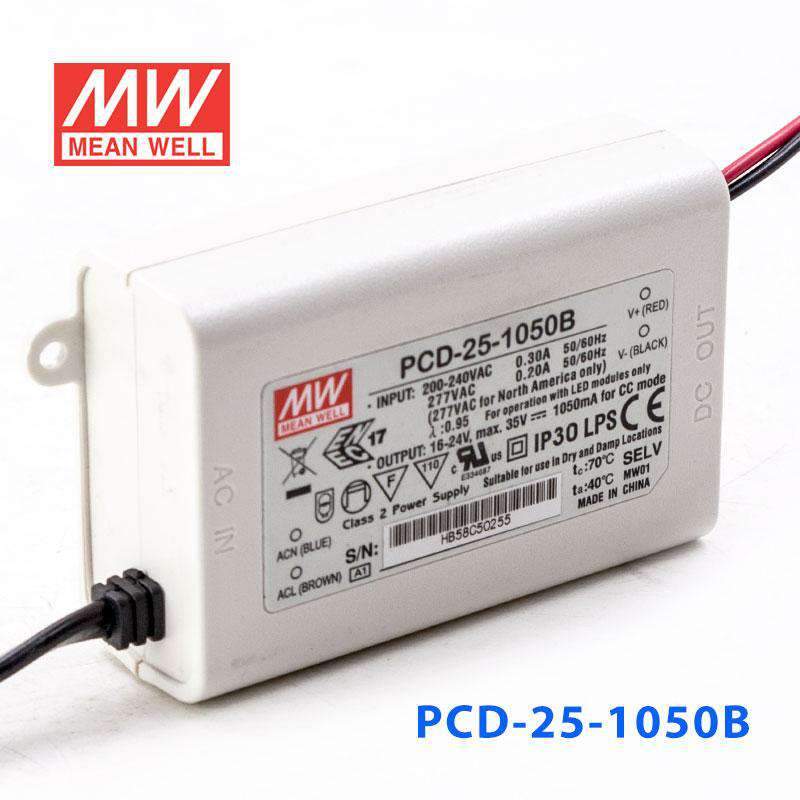

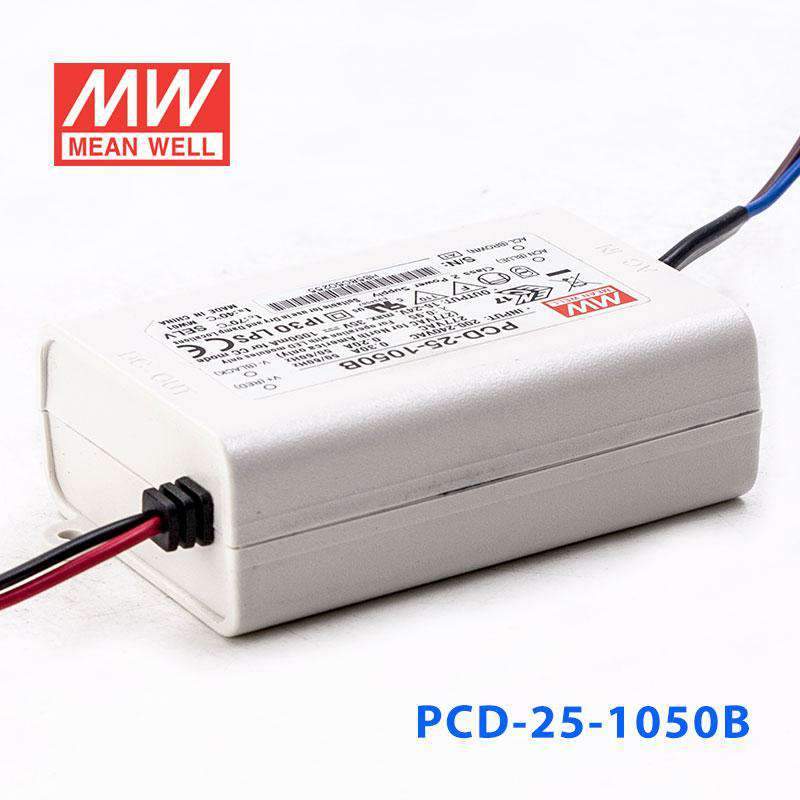

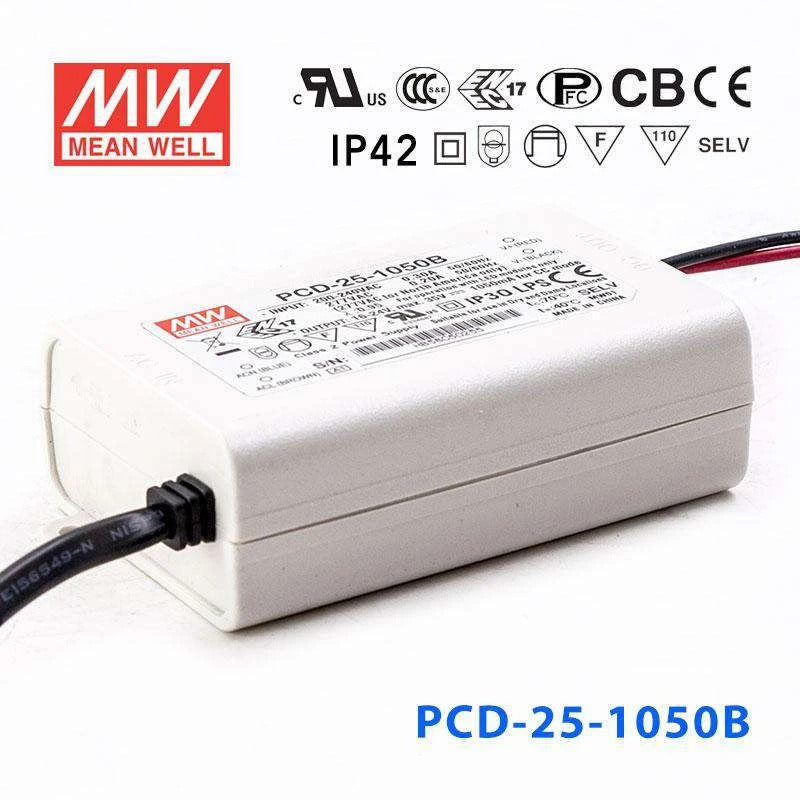

Mean Well PCD-25-1050B Power Supply 25W 1050mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-25-1050B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-25-1050B is the model of this series: rated current 1050mA, rated power 25.2W, typical efficiency 80.5%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-25-1050BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
16 ~ 24V
CURRENT ACCURACY
±5.0%
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.1
2.2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
80.5%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-25-1050B Mechanical Specification
Mechanical Specification
PCD-25-1050B Block Diagram
Block Diagram
PCD-25-1050B Derating Curve
Derating Curve
PCD-25-1050B Power Factor Characteristic
Power Factor Characteristic
PCD-25-1050B EFFICIENCY vs LOAD (PCD-25-350)
EFFICIENCY vs LOAD (PCD-25-350)
PCD-25-1050B P C D - 2 5 series
P C D - 2 5 series

Downloads

FAQ

Can the PCD-25-1050B drive 1050mA LED downlights?

Yes, when the downlight is a constant-current 1050mA load and the total forward voltage stays within 16-24V. The unit is rated for 25.2W, so the connected LED load needs to stay within that limit.

Is this driver appropriate for 1050mA signage modules?

It can be used for signage modules if the module set is specified for 1050mA constant current and falls within the 16-24V constant-current range. This B version is designed for 180-295VAC input.

Can I use the PCD-25-1050B with a small LED array?

Yes, for a small LED array that requires 1050mA constant current and whose total forward voltage is between 16V and 24V. It is not intended for constant-voltage LED products because the operating mode is constant current.

What matters most for compatibility with this 1050mA driver?

The LED load needs to match 1050mA constant current and stay within the 16-24V constant-current output range. The number of LEDs depends on each LED forward voltage, so compatibility is based on total forward voltage rather than a fixed count.

Is the PCD-25-1050B suitable for protected indoor environments?

Yes, its IP42 rating and -30C to +60C operating range (refer to the derating curve) fit protected indoor conditions. IP42 does not indicate a fully sealed outdoor enclosure.
