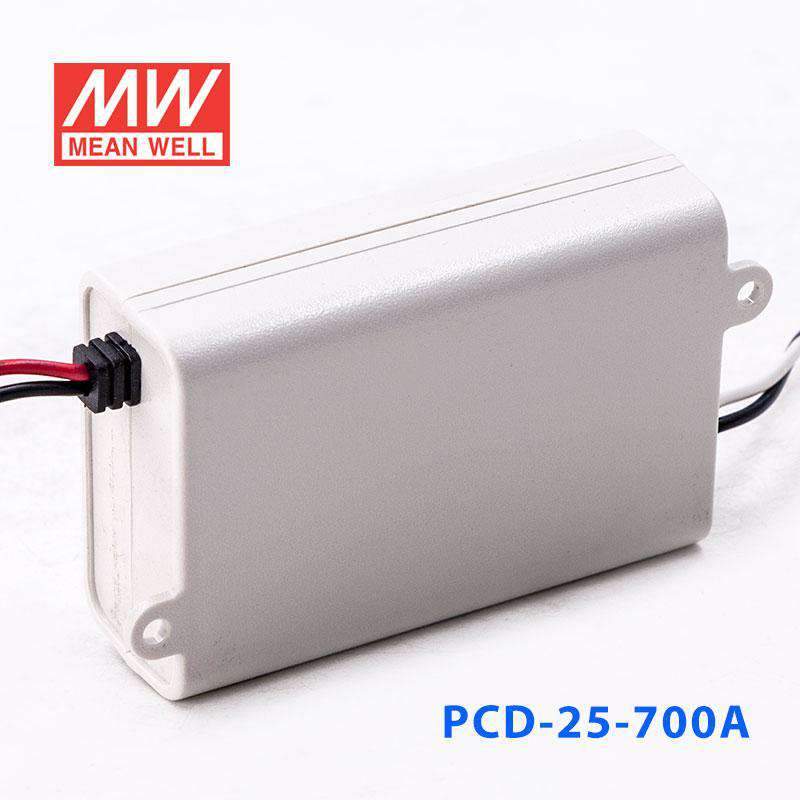

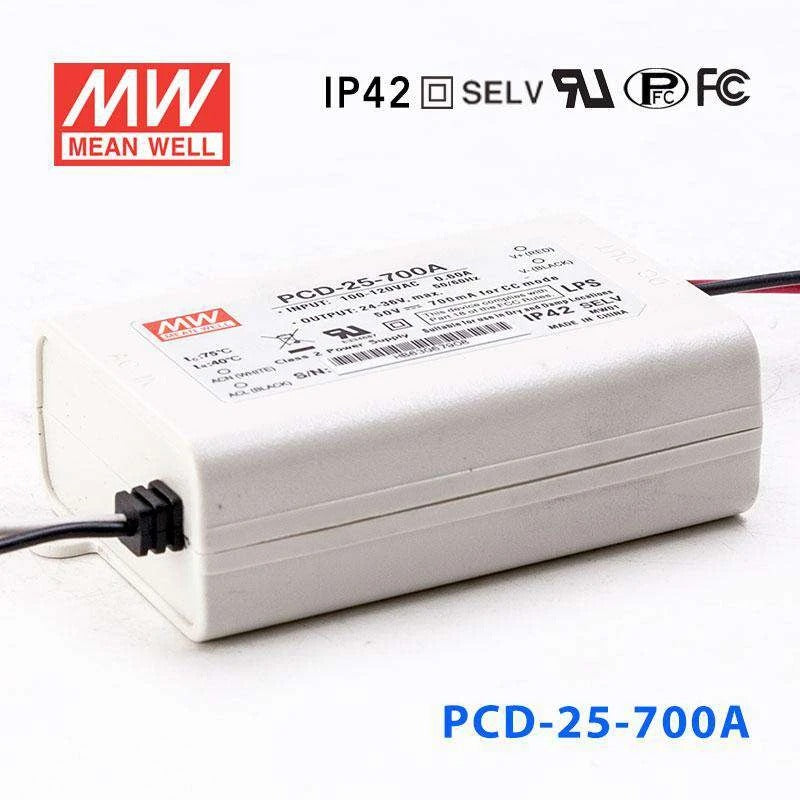

Mean Well PCD-25-700A Power Supply 25W 700mA
Please Login for Pricing
Description
Description
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~135V
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PCD-25-700A for an LED downlight project?
Yes, if the downlight is specified for constant current operation at 700mA and the LED load falls within 24-36V. With 25.2W available, it is suited to downlights that match both that current and voltage range.
Is the PCD-25-700A suitable for signage LED modules?
It can be used for signage modules that require a 700mA constant current driver and operate across 24-36V. It should not be used where the signage system expects a constant voltage power supply instead.
Can this driver run a small LED array with a mid-voltage string?
Yes, this model is designed for 700mA constant current loads in the 24-36V range. A small LED array is a fit when its total forward voltage stays inside that window and its load remains within 25.2W.
How do I check LED compatibility for the PCD-25-700A?
Your LED load should be rated for constant current at 700mA, and the total forward voltage should land between 24V and 36V. The number of LEDs depends on each LED's forward voltage, so the correct match is based on current plus total voltage, not a fixed LED count.
What environmental limits apply to the PCD-25-700A?
The driver uses a plastic casing rated IP42 and operates from -30°C to +60°C. Those limits make it appropriate where the project specification does not require a higher enclosure rating than IP42.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well PCD-25-1050B Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | View |
| Mean Well PCD-25-700B Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | View |
| Mean Well PCD-25-350B Power Supply 25W 350mA | 20.3W | 58V | 0.35A | Indoor | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | View |
| Mean Well PCD-25-1400B Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | View |
| Mean Well PCD-25-1050A Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | View |
