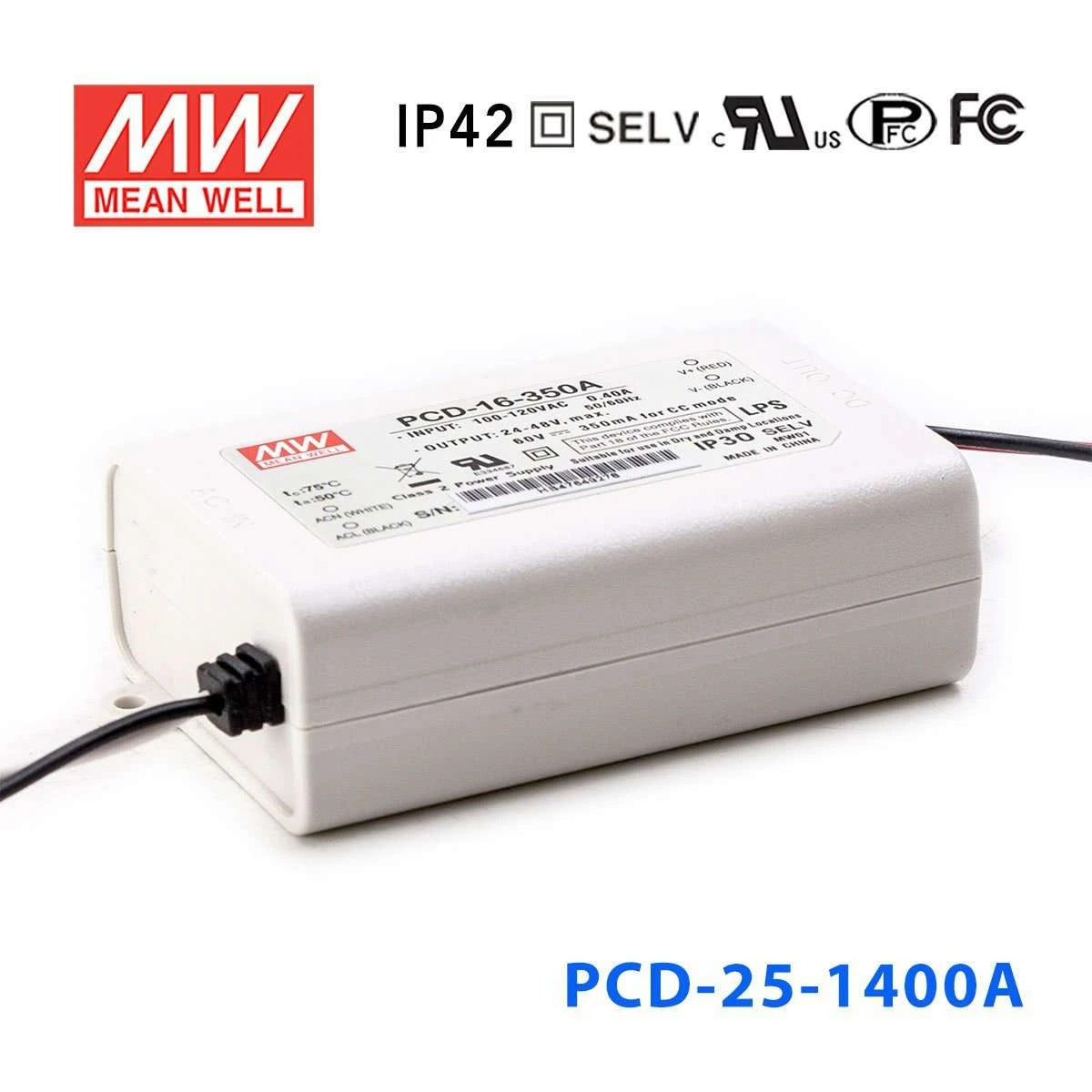

Mean Well PCD-25-1400A Power Supply 25W 1400mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-25-1400A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-25-1400A is the model of this series: rated current 1400mA, rated power 25.2W, typical efficiency 81%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-25-1400ASpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
12 ~ 18V
CURRENT ACCURACY
±5.0%
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.1
2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
25V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
81%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-25-1400A Mechanical Specification
Mechanical Specification
PCD-25-1400A Block Diagram
Block Diagram
PCD-25-1400A Derating Curve
Derating Curve
PCD-25-1400A Power Factor Characteristic
Power Factor Characteristic
PCD-25-1400A EFFICIENCY vs LOAD (PCD-25-350)
EFFICIENCY vs LOAD (PCD-25-350)
PCD-25-1400A P C D - 2 5 series
P C D - 2 5 series

Downloads

FAQ

Can I use the PCD-25-1400A for 1400mA LED downlights?

Yes, if the downlight is specified for constant current at 1400mA and the total LED forward-voltage load stays within 12-18V. The driver is rated for 25.2W, so the fixture load also needs to stay within that power limit.

Is the PCD-25-1400A suitable for signage modules that need higher current?

It can be suitable for signage modules when the module assembly requires 1400mA constant current and operates within the 12-18V constant-current range. Because this is a constant-current model, it is not the same thing as a constant-voltage LED power supply.

Can this driver run a compact small LED array?

Yes, if the small LED array is designed for 1400mA constant current and its total forward voltage falls between 12V and 18V. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.

How do I check if my LEDs are compatible with the PCD-25-1400A?

Confirm that the LEDs need 1400mA constant current and that the total forward-voltage requirement stays inside the 12-18V constant-current range. The overall load also needs to remain within the 25.2W rating.

What kind of environment is this driver rated for?

The PCD-25-1400A is IP42 approved and rated for -30C to +60C operation (refer to the derating curve). That points to protected indoor use rather than direct exposure to water or harsher outdoor conditions.

How is the PCD-25-1400A different from other 25W PCD drivers?

In the 25W class, the PCD-25-1400A/B use a 12-18V constant-current range, the PCD-25-1050A/B use 16-24V, and the PCD-25-700A/B use 24-36V, all at 25.2W. The PCD-25-350A/B shift to a 40-58V range at 20.3W.
