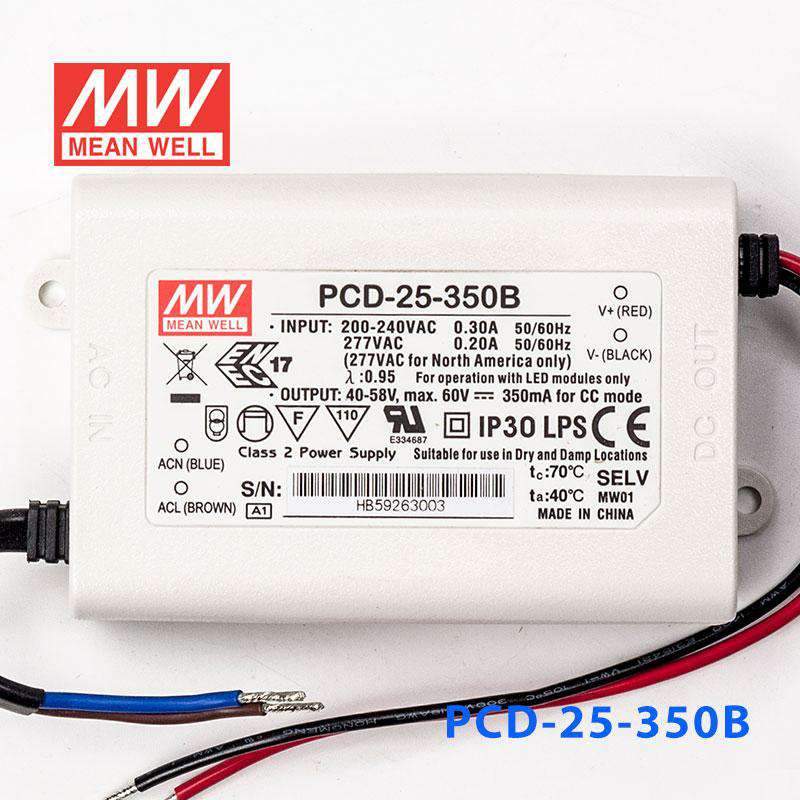

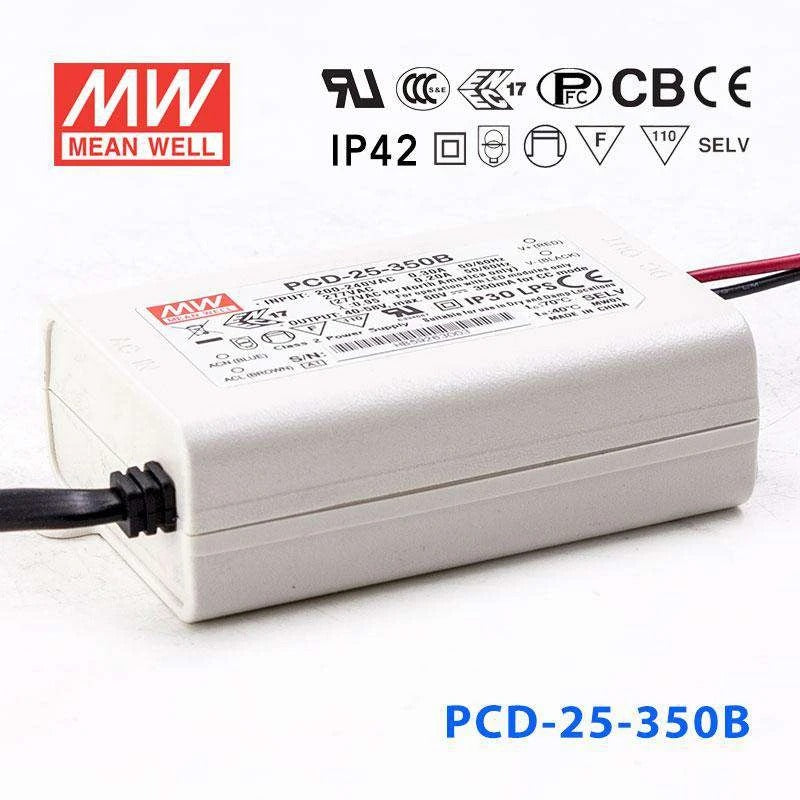

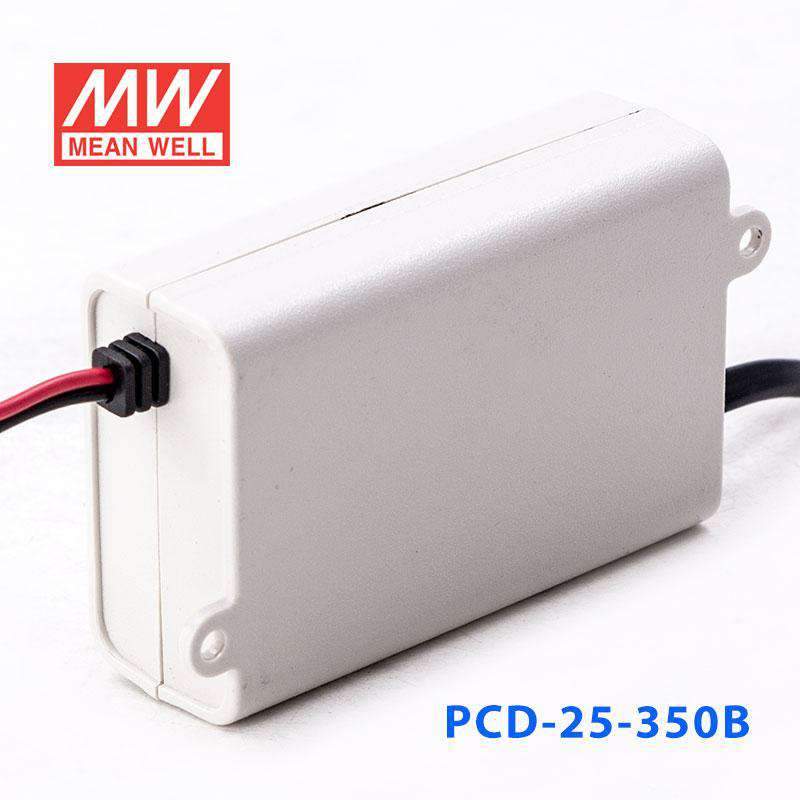

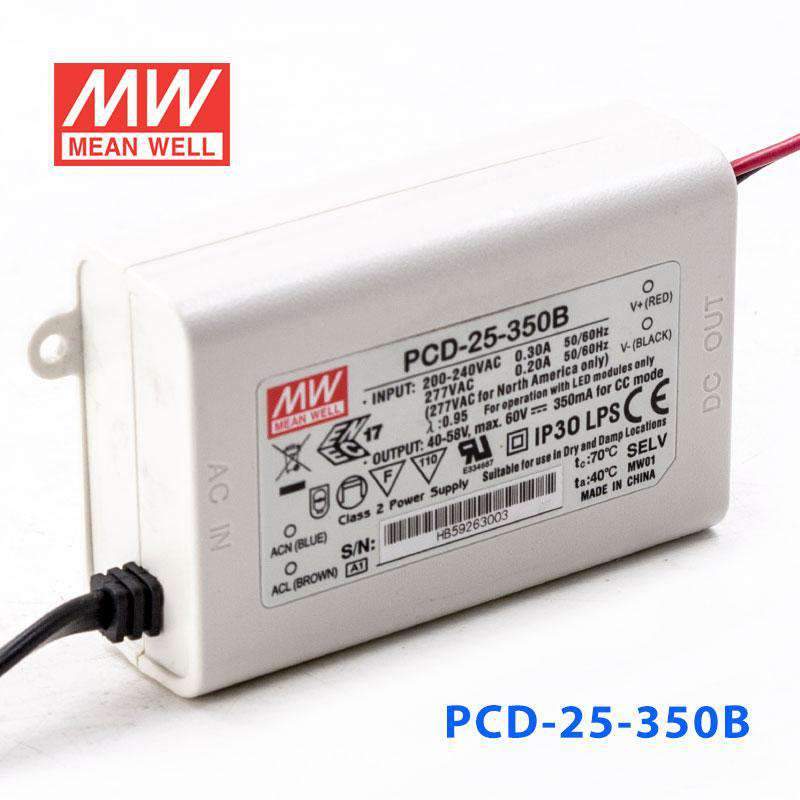

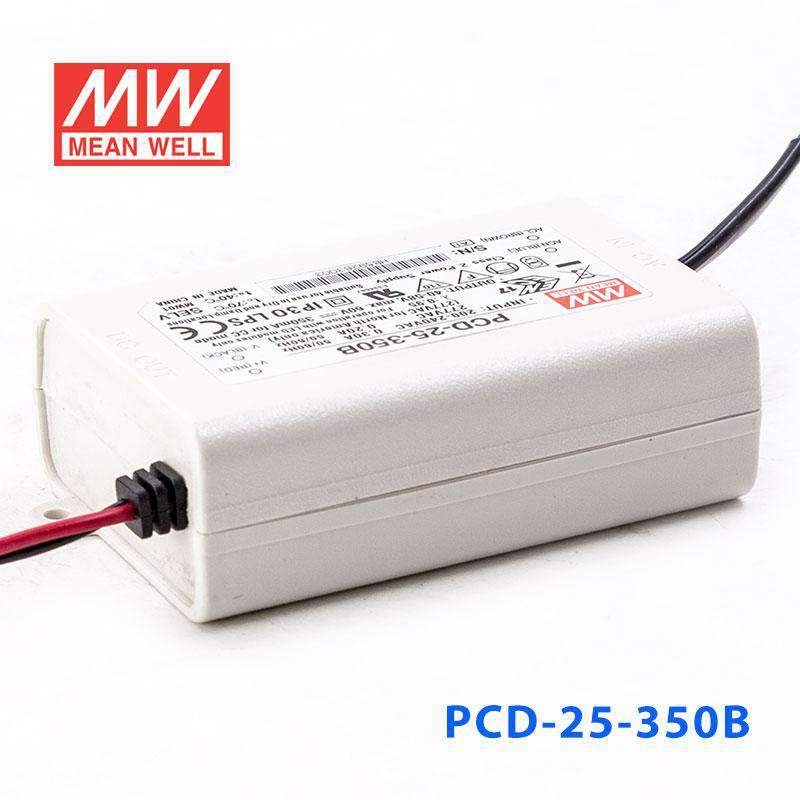

Mean Well PCD-25-350B Power Supply 25W 350mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current

SKU PCD-25-350B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PCD-25-350B is the model of this series: rated current 350mA, rated power 20.3W, typical efficiency 82%.

Features

AC phase-cut dimming
Work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
IP42 design
Class Ⅱ power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PCD-25-350BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 350mA
OPERATING VOLTAGE RANGE: 40 ~ 58V
CURRENT ACCURACY: ±5.0%
RATED POWER: 20.3W
RIPPLE & NOISE (max.)^Note.1: 4.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 60V
SETUP TIME: 500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series: THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series: THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.): COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series: 37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series: 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-25-350B Mechanical Specification — Mechanical Specification

PCD-25-350B Block Diagram — Block Diagram

PCD-25-350B Derating Curve — Derating Curve

PCD-25-350B Power Factor Characteristic — Power Factor Characteristic

PCD-25-350B EFFICIENCY vs LOAD (PCD-25-350) — EFFICIENCY vs LOAD (PCD-25-350)

PCD-25-350B P C D - 2 5 series — P C D - 2 5 series

Downloads

Certificates5

UL Certificate (PCD-25)(EN) PDF Download

CB Certificate (PCD-25)(EN) PDF Download

EMC Certificate (PCD-25)(EN) PDF Download

FCC Certificate(PCD-25)(EN) PDF Download

ENEC Certificate (PCD-25)(EN) PDF Download

Test reports1

Test Report (PCD-25-350B)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PCD-25-350B power a string of signage LEDs?

Yes, when the signage load is designed for constant current at 350mA and the total forward voltage stays within 40-58V. Because the unit is constant current, it is not the right choice for constant voltage LED systems.

Is this driver suitable for a narrow LED downlight array?

It can be, provided the downlight uses a 350mA constant current driver and the LED load operates in the 40-58V range. The available output power is 20.3W, so the fixture also needs to remain within that limit.

Can I use the PCD-25-350B with a compact custom LED array?

Yes, if the array is built around 350mA constant current operation and its combined forward voltage is between 40V and 58V. That makes it suitable for higher-voltage, lower-current LED arrays within the 20.3W rating.

What makes an LED load compatible with the PCD-25-350B?

The load must require 350mA constant current and fall within the 40-58V constant current output range. The number of LEDs depends on each LED's forward voltage, so you should size the string by current and total forward voltage instead of by a fixed count.

How does the PCD-25-350B compare with the other PCD-25 models?

Within the PCD-25 range, the 350mA versions are 40-58V at 20.3W, the 700mA versions are 24-36V at 25.2W, the 1050mA versions are 16-24V at 25.2W, and the 1400mA versions are 12-18V at 25.2W. The PCD-25-350B is the 350mA, 40-58V model with 180-295VAC input.
