Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover

This model is an enclosure box designed for applications that need an integrated 10-pole terminal box format inside a compact housing. It is suited to industrial and commercial environments where a sealed ABS enclosure is needed to help protect internal components.

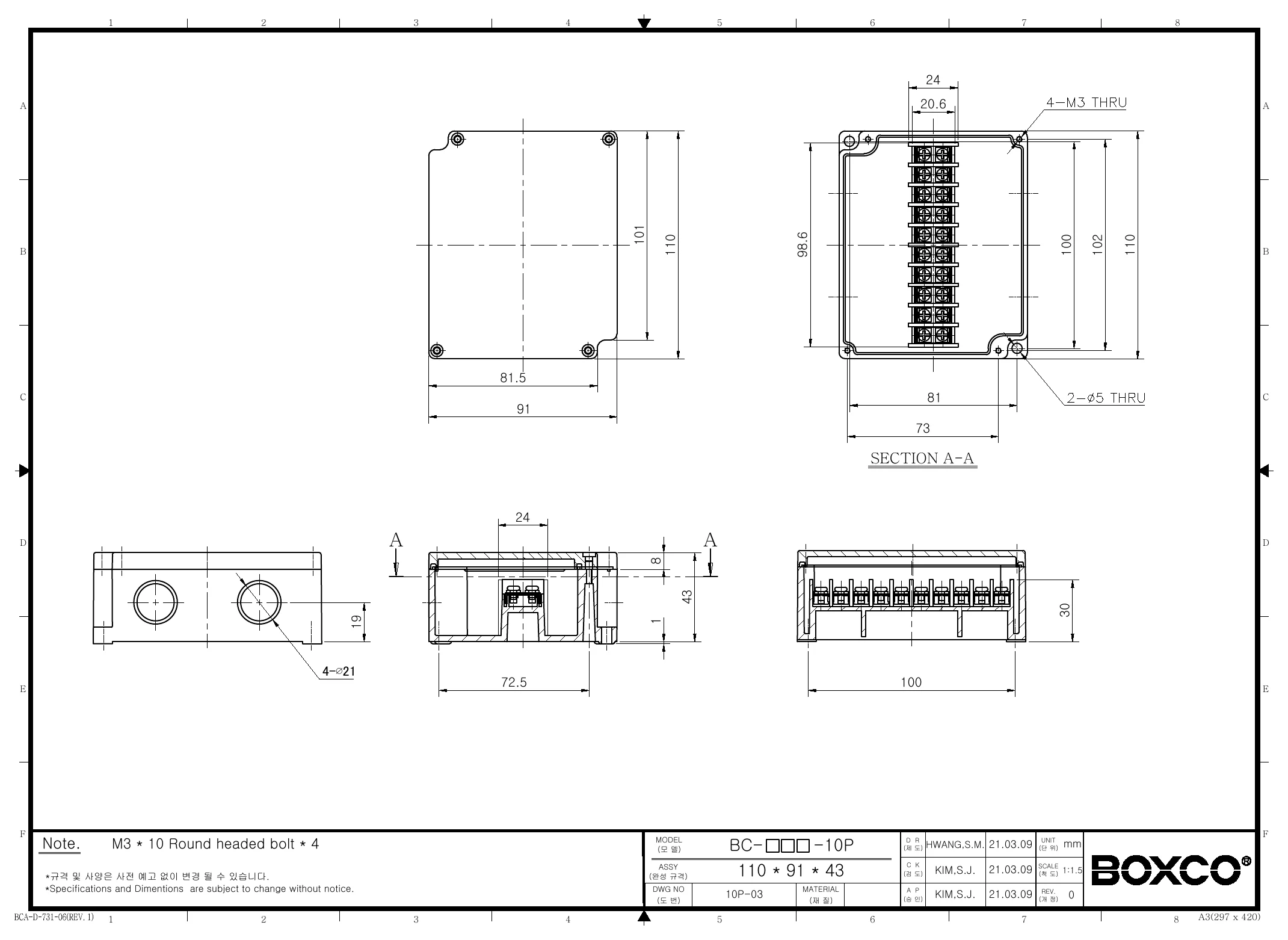

This model measures 3.58 x 4.33 x 1.69 inches (91 x 110 x 43 mm) and weighs 0.194 kg. It has a 10-pole configuration, an IP67 ingress protection rating, an IK08 impact rating, and a grey ABS cover.

It is rated IP67, which indicates a high level of protection against dust ingress and water exposure. That makes it a strong option for demanding environments where enclosure sealing is important.

This model carries an IK08 impact rating, showing it is built for applications where mechanical durability matters. The enclosure is also made from flame-retardant ABS material for added resilience in industrial and commercial settings.

The rated operating temperature range for this model is -40 degrees C to 70 degrees C. That allows it to be considered for both low-temperature and elevated-temperature environments within that range.

Yes, this Boxco terminal box is described as having integrated terminal blocks and a 10-pole configuration. Buyers looking for this specific pole count should verify that BC-AGG-10P matches their enclosure size and application requirements.
