Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

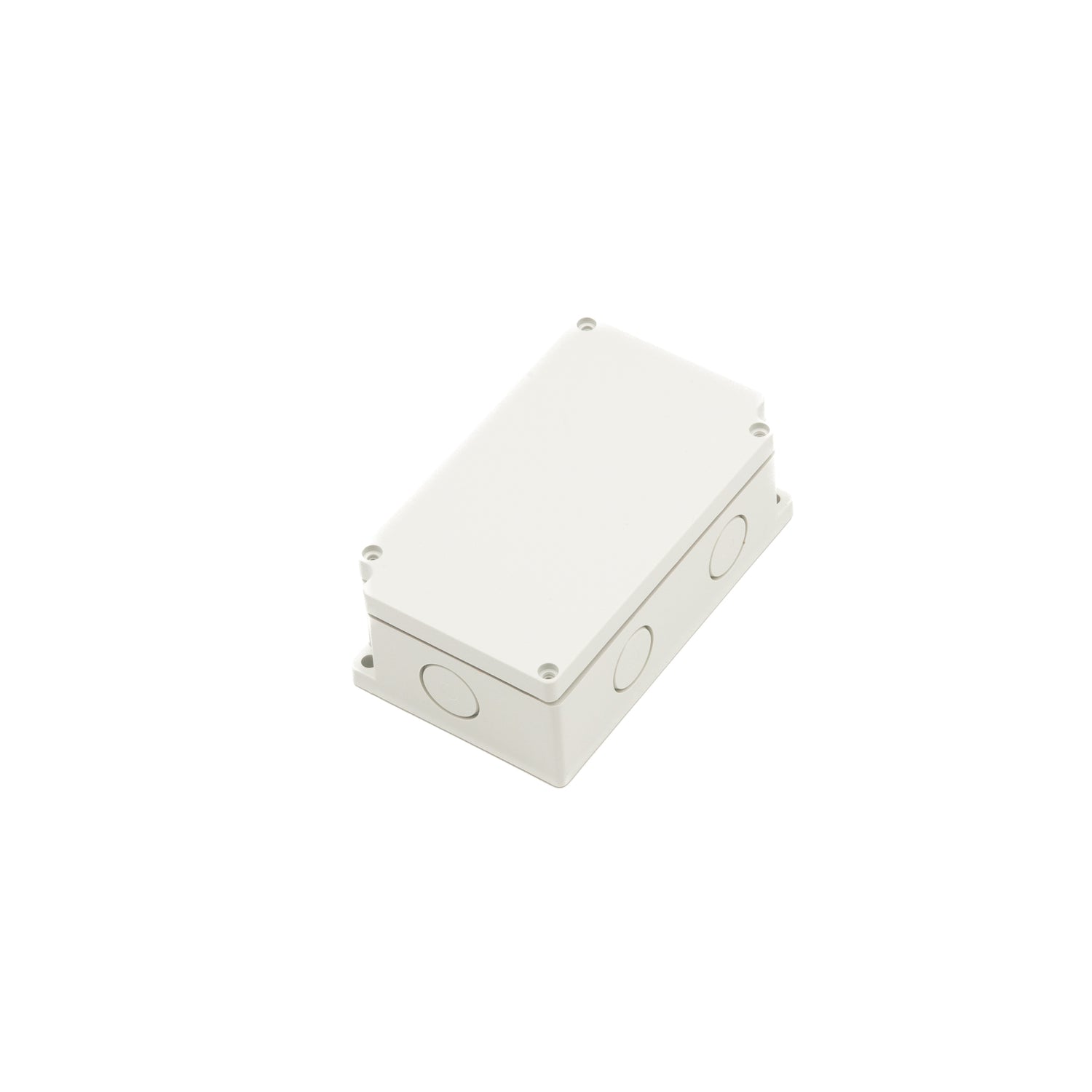

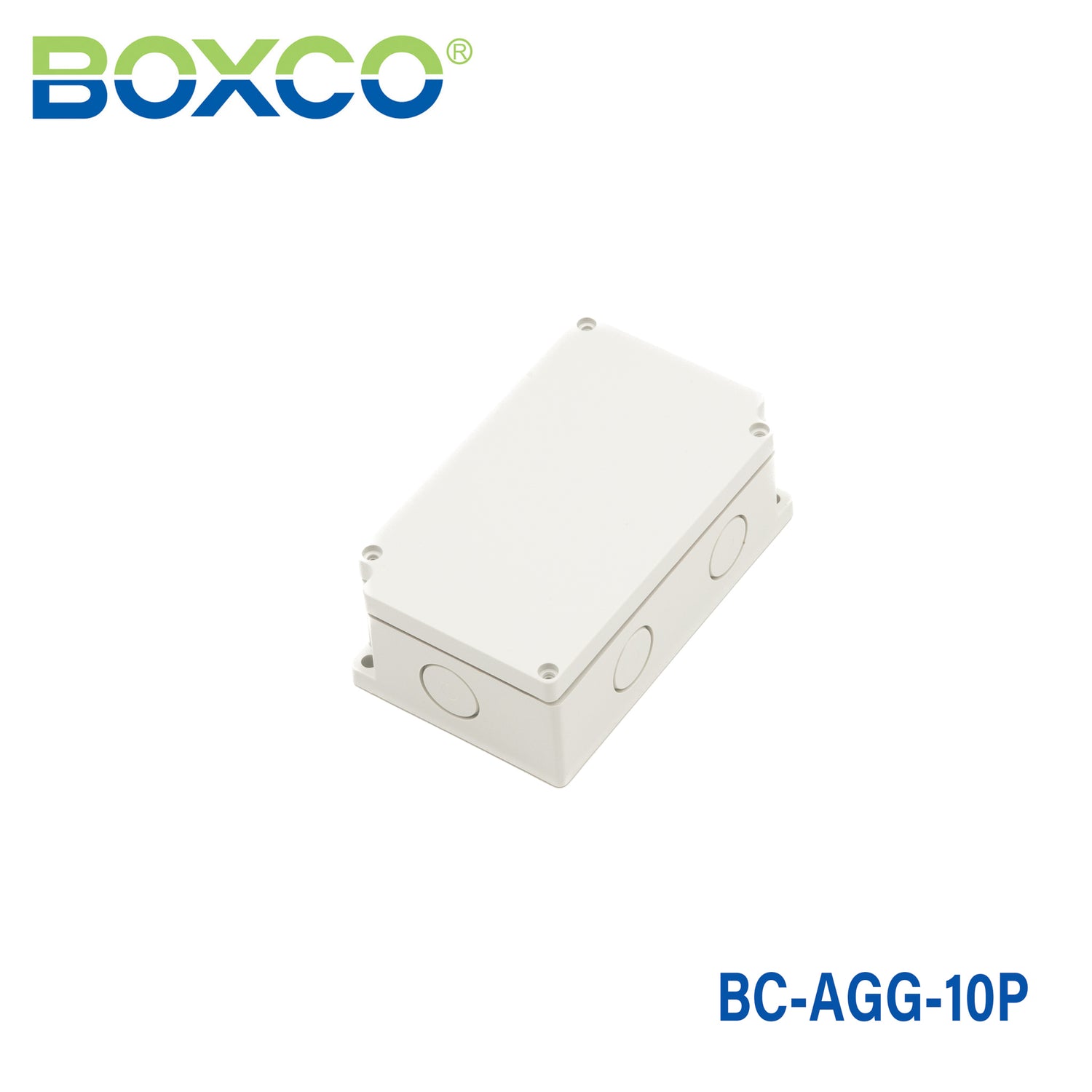

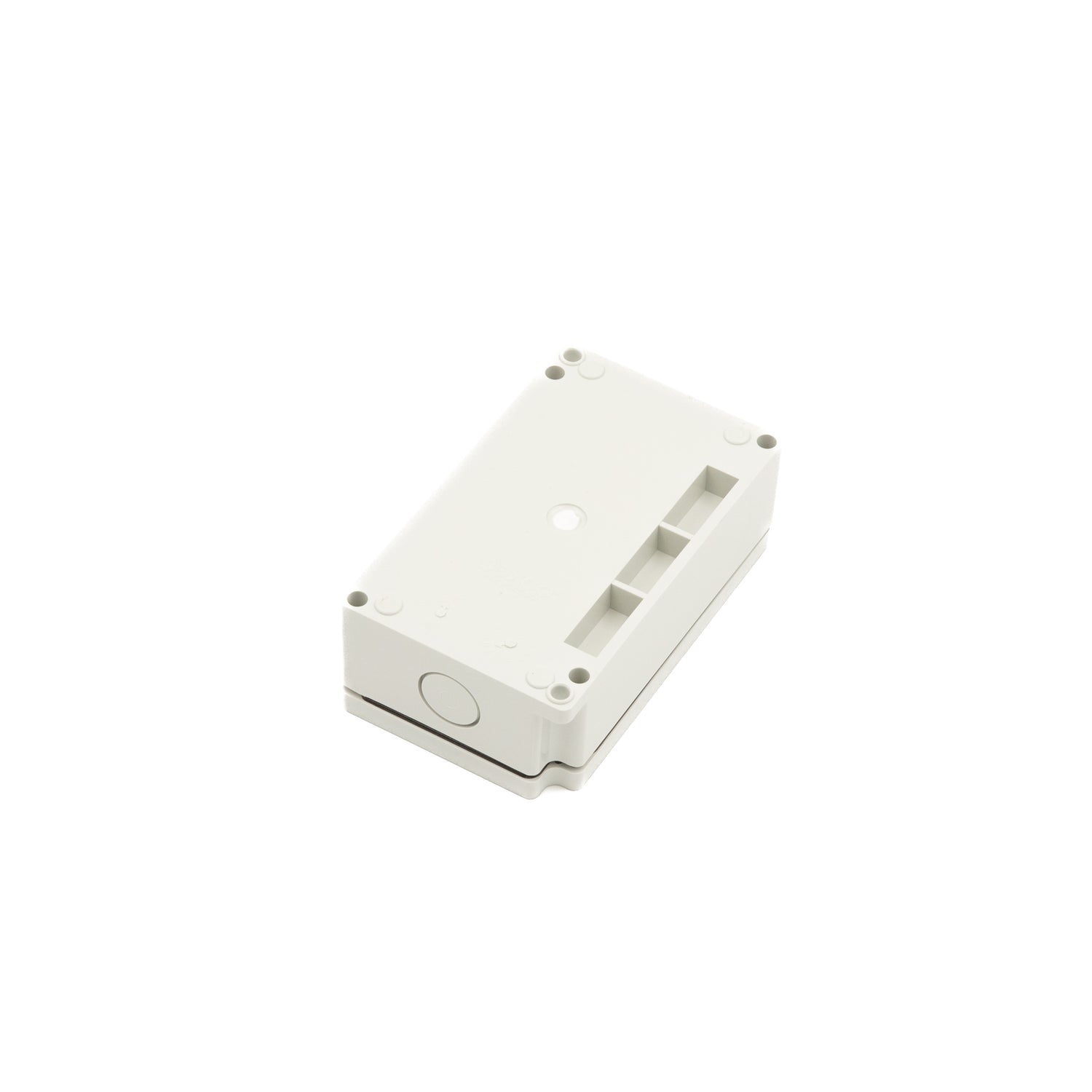

Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover

10-pole Terminal Box 91x110x43mm, IP67, IK08, ABS

SKU:

BC-AGG-10P

Notify me when it's back in stock

Description

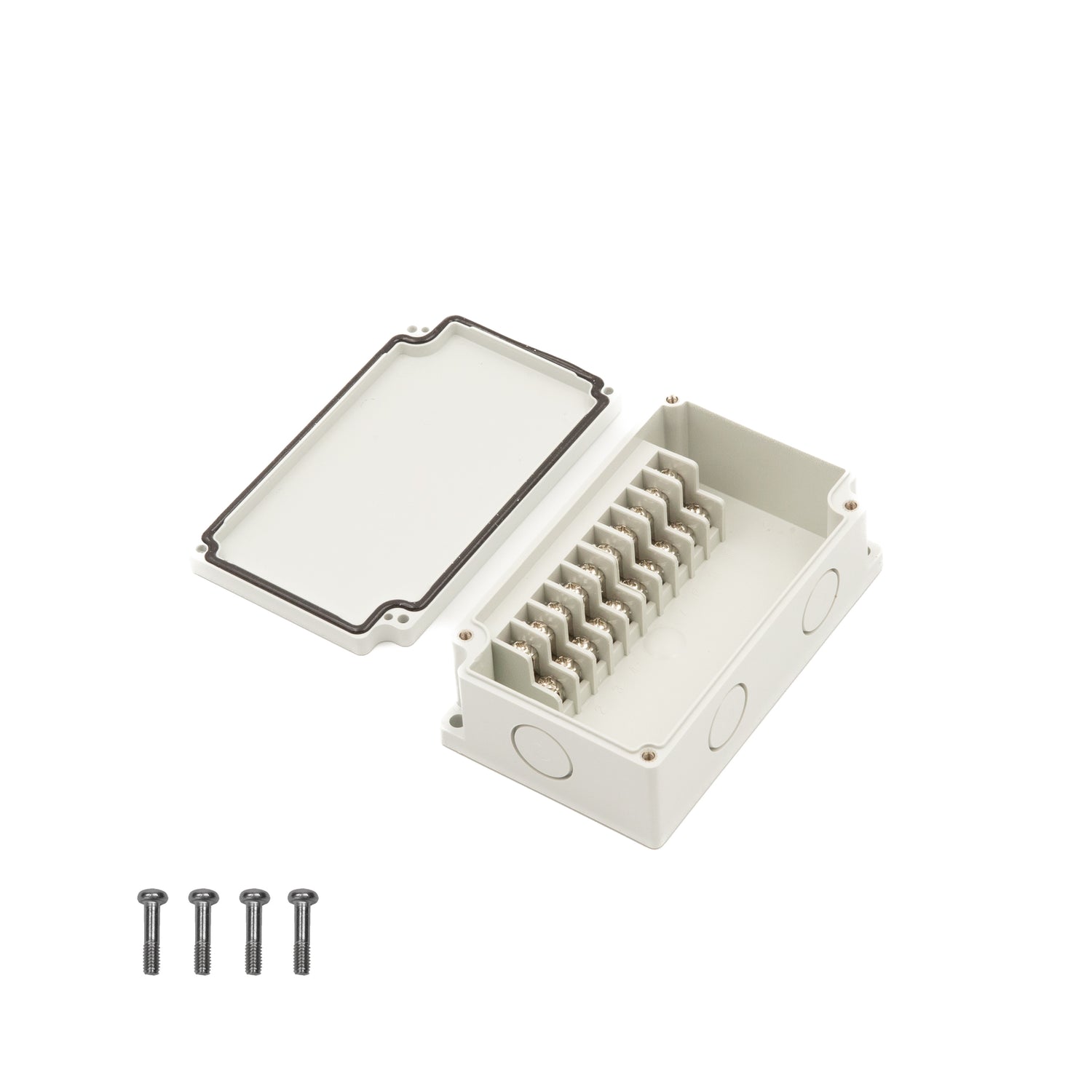

Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.

Specifications

Brand

Boxco
Series

Boxco Terminal Series
Standards Met

CE,TUV
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

9.1 cm
Width

11 cm
Height

4.3 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Boxco Terminal Box 10-pole used for?

This model is an enclosure box designed for applications that need an integrated 10-pole terminal box format inside a compact housing. It is suited to industrial and commercial environments where a sealed ABS enclosure is needed to help protect internal components.

What are the key specifications of this Boxco terminal box?

This model measures 3.58 x 4.33 x 1.69 inches (91 x 110 x 43 mm) and weighs 0.194 kg. It has a 10-pole configuration, an IP67 ingress protection rating, an IK08 impact rating, and a grey ABS cover.

Is this terminal box suitable for dusty or wet environments?

It is rated IP67, which indicates a high level of protection against dust ingress and water exposure. That makes it a strong option for demanding environments where enclosure sealing is important.

How durable is this Boxco enclosure box for industrial use?

This model carries an IK08 impact rating, showing it is built for applications where mechanical durability matters. The enclosure is also made from flame-retardant ABS material for added resilience in industrial and commercial settings.

What temperature range can this Boxco terminal box handle?

The rated operating temperature range for this model is -40 degrees C to 70 degrees C. That allows it to be considered for both low-temperature and elevated-temperature environments within that range.

Does this model include built-in terminal block capacity?

Yes, this Boxco terminal box is described as having integrated terminal blocks and a 10-pole configuration. Buyers looking for this specific pole count should verify that BC-AGG-10P matches their enclosure size and application requirements.

Model	Material	Cover
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole with Waterproof Connector 40x60x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 10-pole 75x125x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole with Waterproof Connector 50x70x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 3-pole with Waterproof Connector 33x65x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
