Boxco

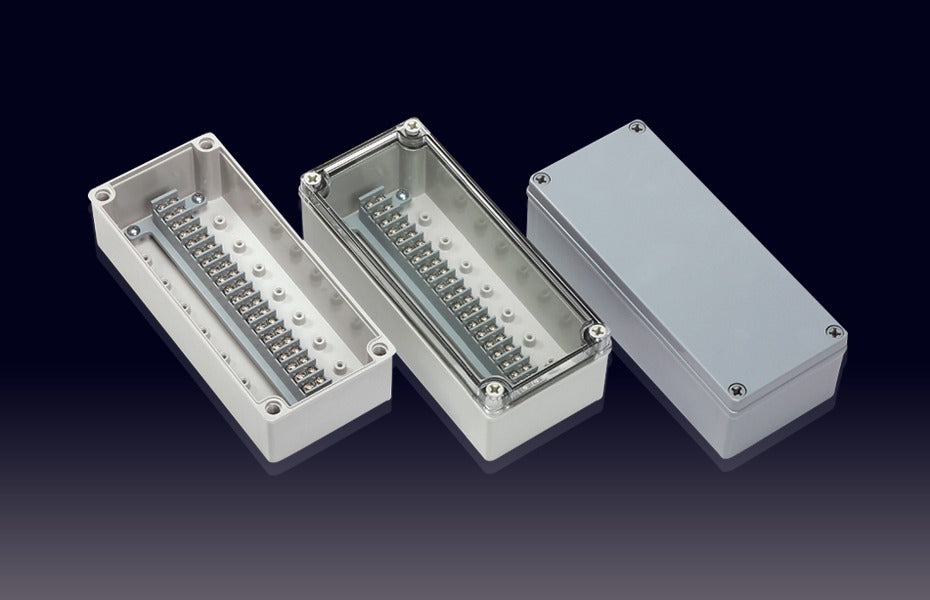

Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover

SKU BC-ATG-20P
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATG-20P is a 100×230×70 mm ABS Grey enclosure with a transparent cover from the Boxco Terminal block box.

Specifications

BC-ATG-20PSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×230×70 mm (3.94×9.06×2.76 in)

Material

Material
ABS Grey
Cover
Transparent
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-ATG-20P Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Boxco Terminal Box BC-ATG-20P used for?

The BC-ATG-20P is a terminal box designed for enclosure and protection applications where a durable housing with integrated terminal blocks is needed. Its 20-pole configuration and molded knockouts make it suitable for commercial and industrial environments that require an organized enclosed terminal box.

What are the key specifications of the BC-ATG-20P?

This model measures 3.94 x 9.06 x 2.76 inches (100 x 230 x 70 mm) and weighs 0.5100 kg. It is rated IP67 for dust-tight and water-resistant protection, IK08 for impact resistance, and features an ABS body with a transparent cover.

Is this terminal box suitable for harsh environments?

Yes, the BC-ATG-20P is built for demanding environments with an IP67 ingress protection rating and IK08 impact rating. It is also rated for operation in temperatures from -40 °C to 70 °C, which supports use across a wide range of industrial conditions.

What material is the BC-ATG-20P made from?

This Boxco terminal box is made from flame-retardant ABS material. The cover is transparent, which helps with visual inspection while maintaining the enclosure's protective design.

How does this model differ from smaller or lower-pole terminal boxes?

The BC-ATG-20P stands out by combining a 20-pole format with a relatively long enclosure size of 230 mm. Compared with smaller terminal boxes, it offers more internal capacity for applications that need a higher pole count in a sealed, impact-resistant enclosure.

What should buyers confirm before choosing the BC-ATG-20P?

Buyers should confirm that the enclosure size, 20-pole format, and environmental ratings match their project requirements. For this specific model, key considerations are its 100 x 230 x 70 mm dimensions, ABS construction, transparent cover, and operating range of -40 °C to 70 °C.
