Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

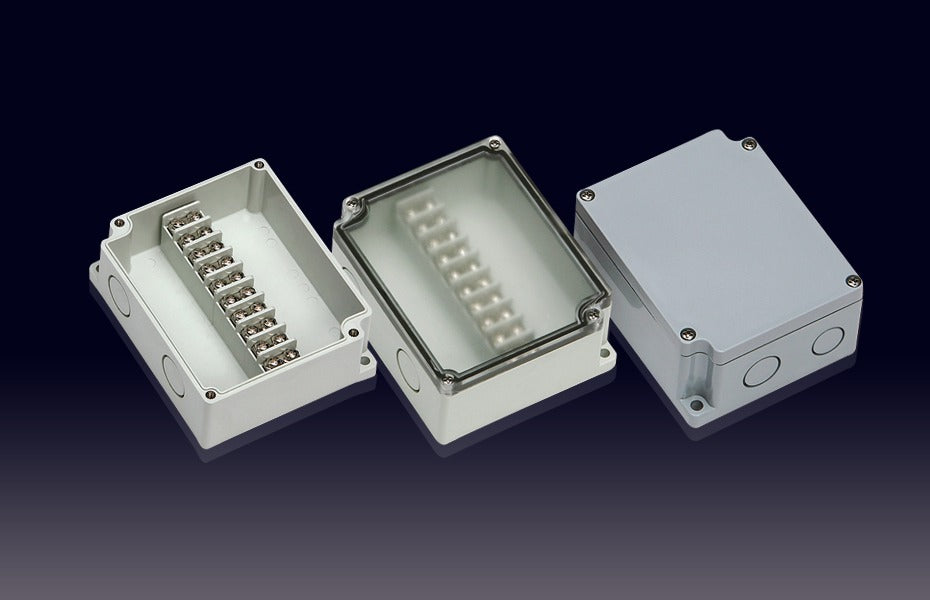

Boxco Terminal Box 10-pole 75x125x43mm, IP67, IK08, ABS, Transparent Cover

SKU:

BC-ATG-10P

Notify me when it's back in stock

Description

Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.

Specifications

Brand

Boxco
Series

Boxco Terminal Series
Standards Met

CE,TUV
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

7.5 cm
Width

12.5 cm
Height

4.3 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Boxco BC-ATG-10P terminal box used for?

The BC-ATG-10P is a compact enclosure box designed for applications that need an integrated 10-pole terminal box format in a protected housing. It is suited to industrial and commercial environments where enclosure durability, compact size, and ingress protection are important.

What are the key specifications of the BC-ATG-10P?

This model measures 2.95 x 4.92 x 1.69 inches (75 x 125 x 43 mm) and weighs 0.194 kg. It has a 10-pole configuration, an ABS body, a transparent cover, and ratings of IP67 and IK08.

Is this terminal box suitable for dusty or wet environments?

Yes. The BC-ATG-10P is rated IP67, which indicates strong protection against dust ingress and temporary immersion conditions. That makes it a practical choice for demanding environments where moisture and particulates are a concern.

How durable is the Boxco BC-ATG-10P enclosure?

This model carries an IK08 impact rating, indicating solid resistance to mechanical impact for its class. It is also made from flame-retardant ABS, which adds durability and material stability for industrial enclosure use.

What temperature range can the BC-ATG-10P handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both low-temperature and elevated-temperature environments within the product's stated limits.

Does the BC-ATG-10P have a transparent cover?

Yes. This version includes a transparent cover, which helps with visual inspection of the enclosed interior without changing the enclosure style. The cover is part of this specific BC-ATG-10P model configuration.

Model	Material	Cover
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole with Waterproof Connector 40x60x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole with Waterproof Connector 50x70x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 3-pole with Waterproof Connector 33x65x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
