Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

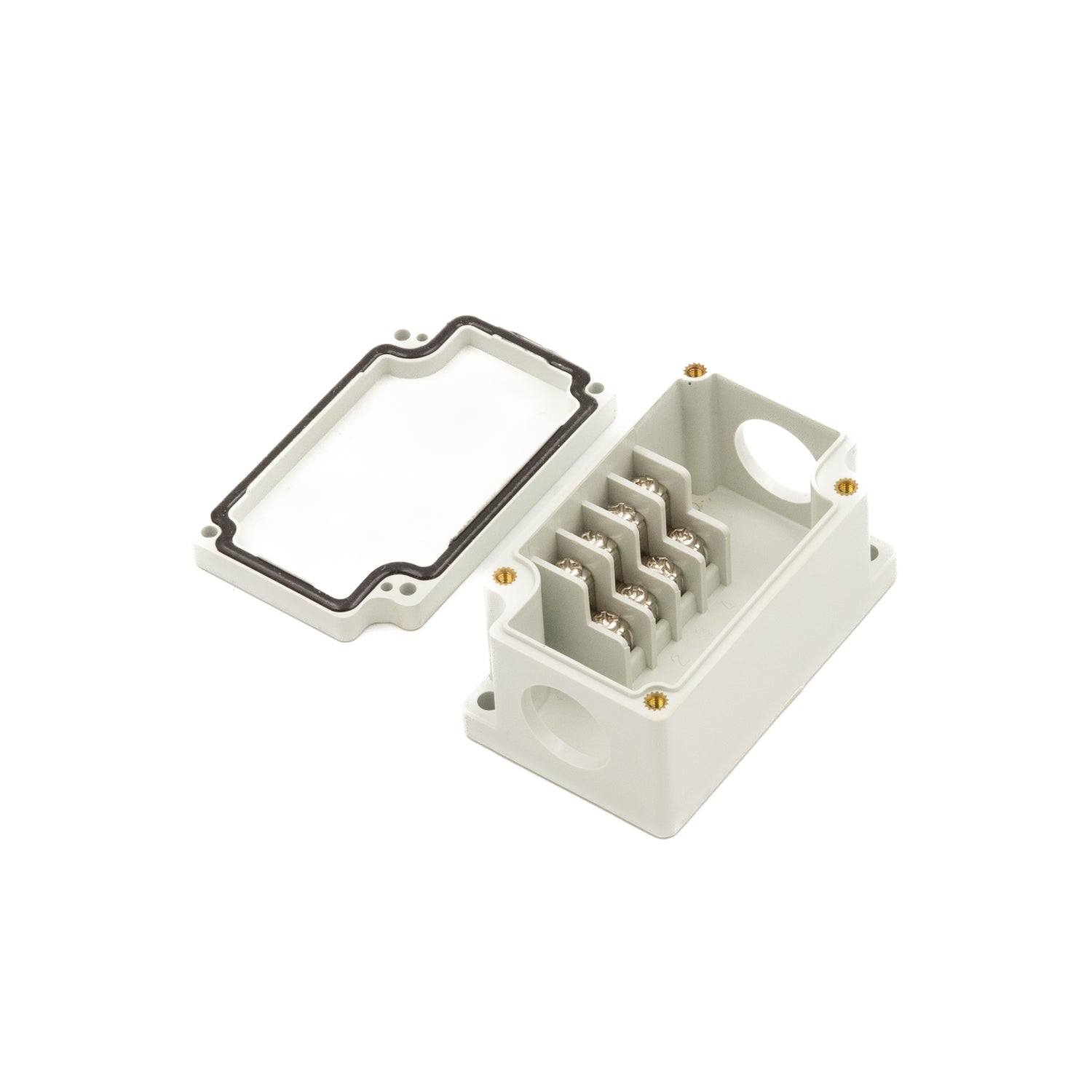

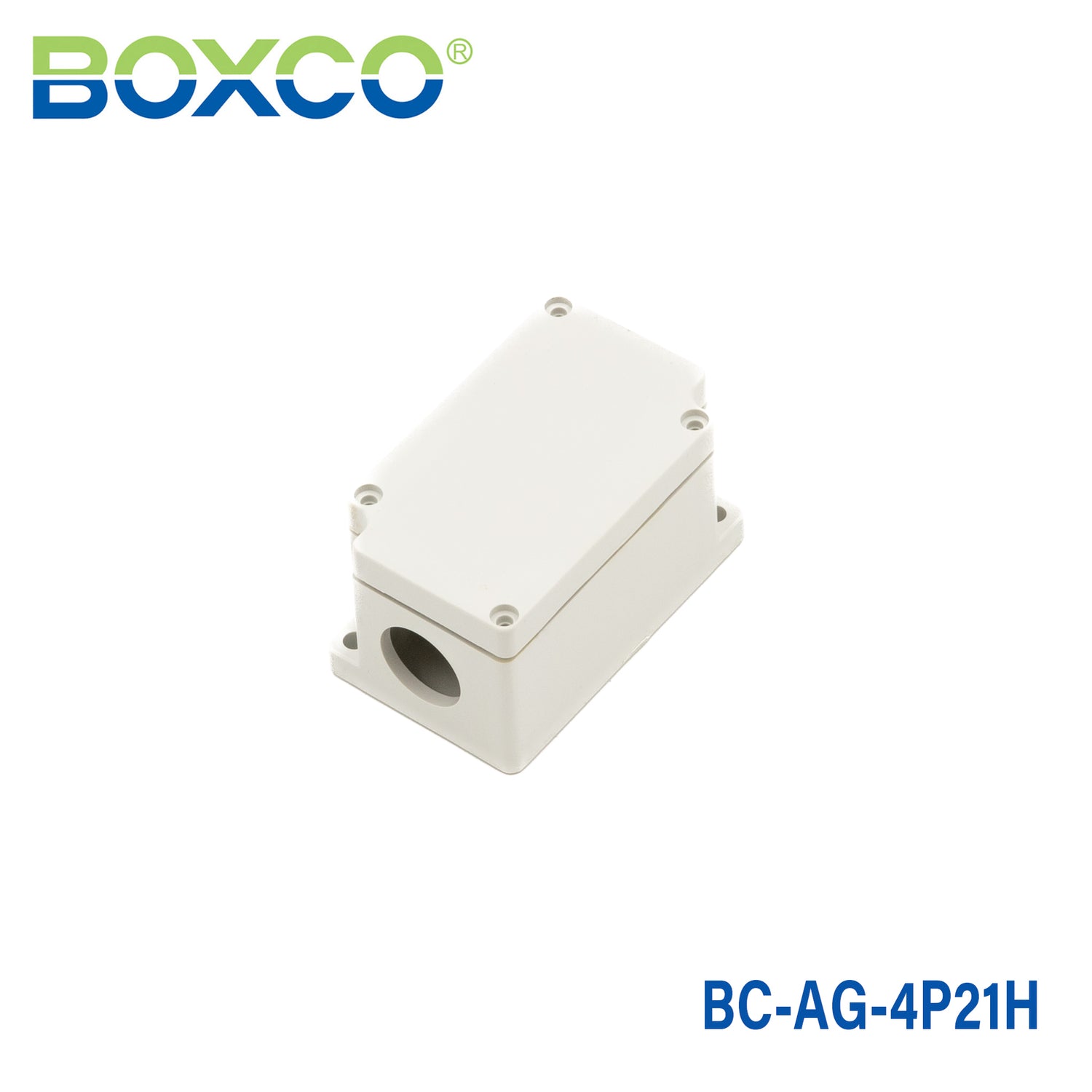

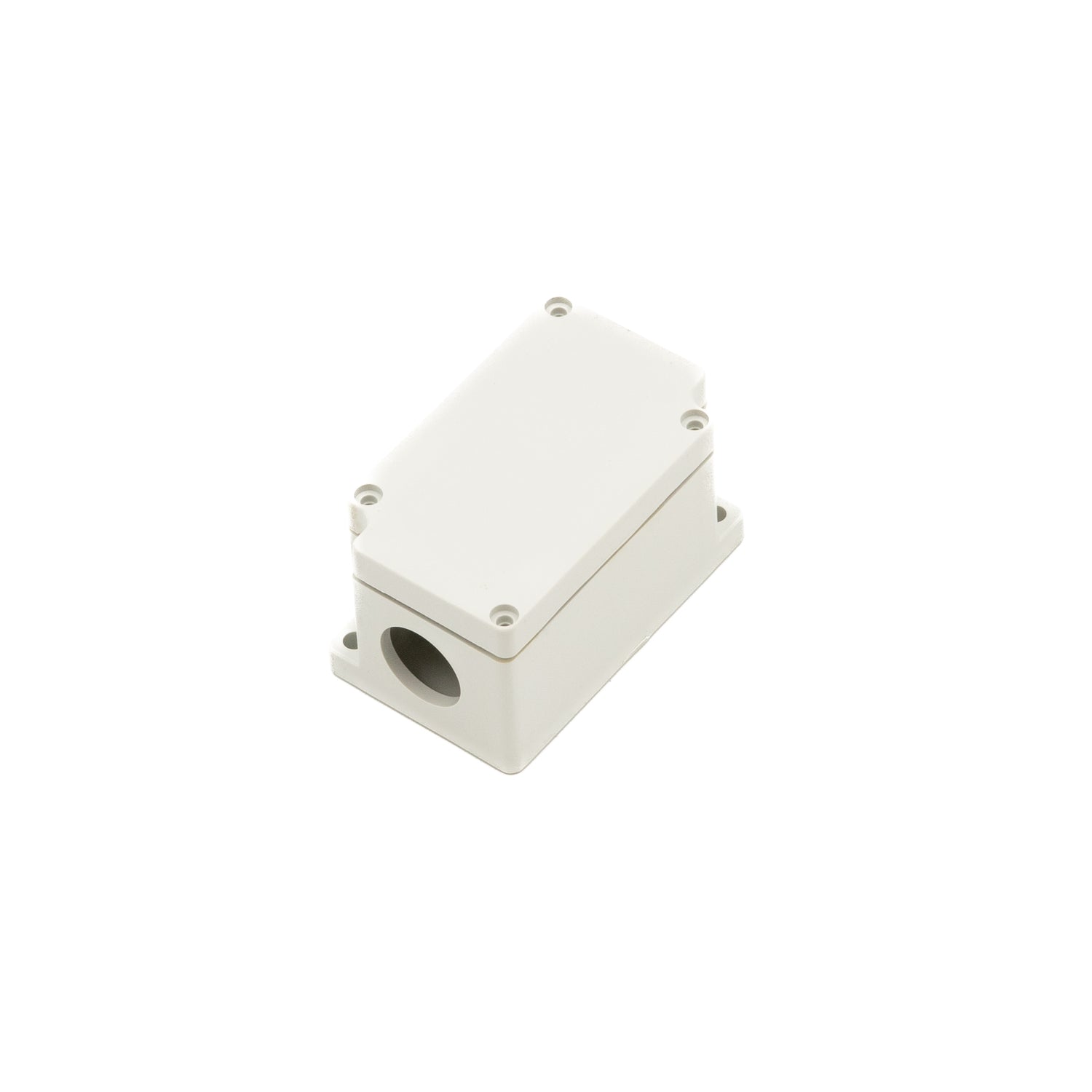

Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover

SKU:

BC-AG-4P21H

Notify me when it's back in stock

Description

Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.

Specifications

Brand

Boxco
Series

Boxco Terminal Series
Standards Met

CE,TUV
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

5 cm
Width

8.2 cm
Height

4.3 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Boxco BC-AG-4P21H used for?

The BC-AG-4P21H is a compact terminal box designed for enclosure and control box applications where a small, protected housing is needed. This model includes an integrated 4-pole terminal block and is suited to industrial and commercial use where space is limited.

What are the key specifications of this terminal box?

This Boxco model measures 1.97 x 3.23 x 1.69 inches (50 x 82 x 43 mm) and weighs 0.0200 kg. It has a grey ABS cover, a 4-pole terminal configuration, an IP67 ingress protection rating, and an IK08 impact rating.

Is the BC-AG-4P21H suitable for dusty or wet environments?

Yes. The IP67 rating indicates this terminal box is built for strong protection against dust ingress and temporary water exposure. That makes it a good fit for demanding environments where enclosure sealing is important.

How durable is this Boxco terminal box?

The BC-AG-4P21H is made from flame-retardant material and carries an IK08 impact rating for mechanical protection. These features make it a practical choice for applications that need both enclosure safety and resistance to everyday physical stress.

What temperature range can this enclosure handle?

This model is rated for ambient temperatures from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating conditions, provided the overall application stays within the product's published limits.

Does this model include internal terminal blocks?

Yes. The BC-AG-4P21H is described as an integrated terminal box with a 4-pole terminal block. It is part of Boxco's terminal box range, which combines enclosure protection with built-in pole options in a compact housing.

Model	Material	Cover
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole with Waterproof Connector 40x60x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 10-pole 75x125x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole with Waterproof Connector 50x70x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 3-pole with Waterproof Connector 33x65x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
