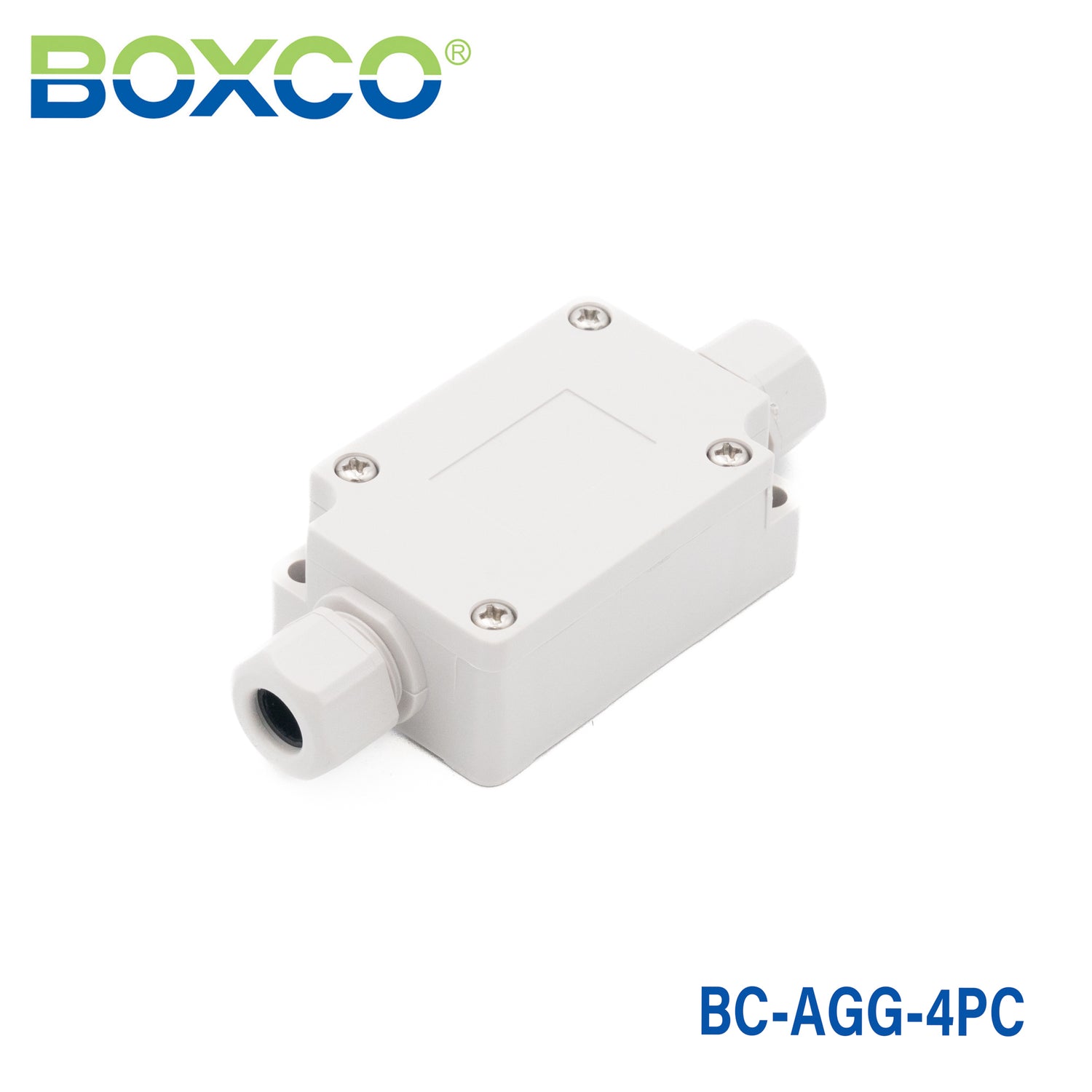

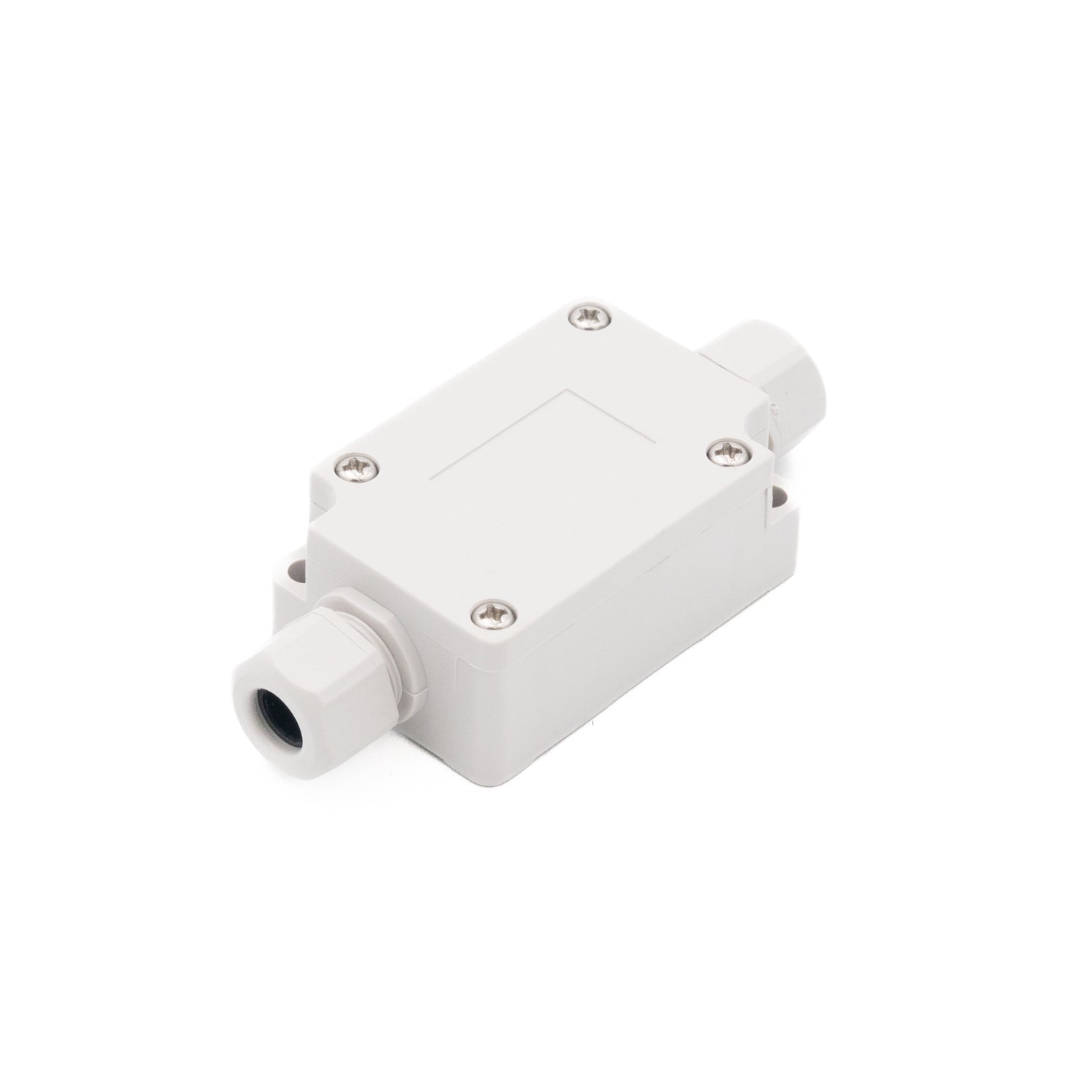

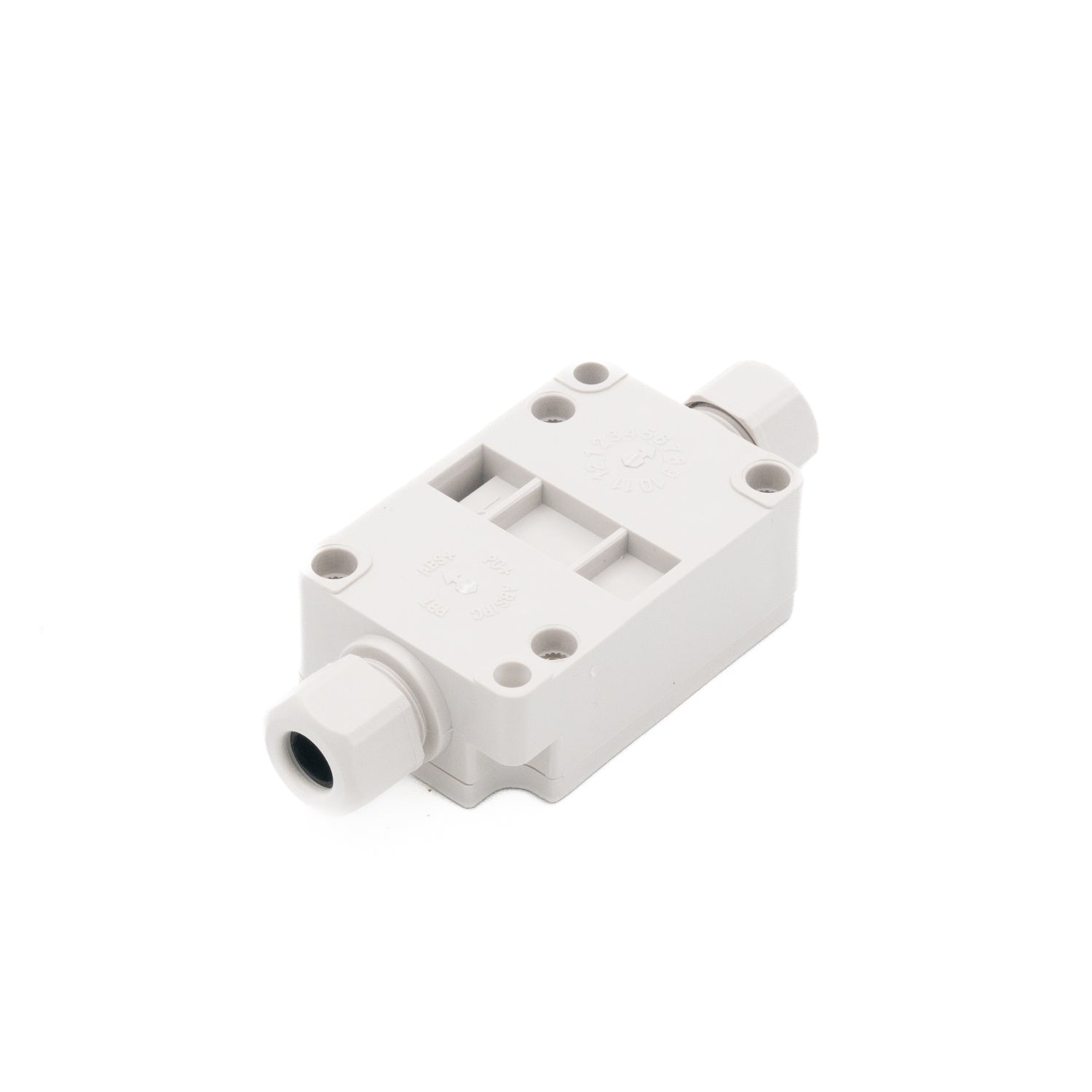

Boxco Terminal Box 4-pole with Waterproof Connector 40x60x24mm, IP67, IK08, ABS, Grey Cover

SKU:

BC-AGG-4PC

Notify me when it's back in stock

Description

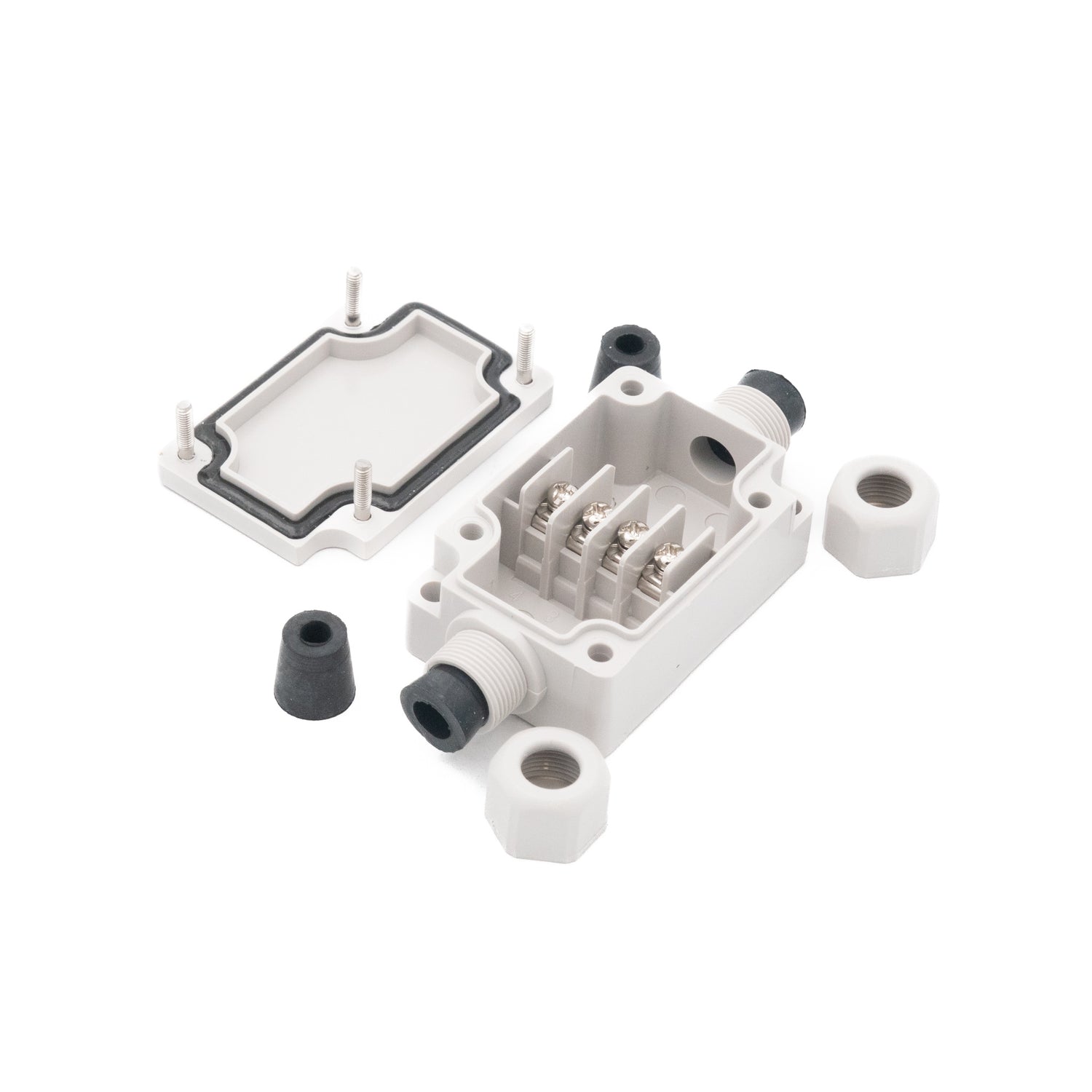

Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.

Specifications

Brand

Boxco
Series

Boxco Terminal Series
Standards Met

CE,TUV
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

4 cm
Width

6 cm
Height

2.4 cm
Weight

0.06 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Boxco BC-AGG-4PC terminal box designed for?

The BC-AGG-4PC is a compact enclosure box intended for protecting terminal block components in applications that need a small, durable housing. This model includes a 4-pole terminal box format and a waterproof connector, making it suitable for space-constrained industrial or commercial use.

What are the dimensions of this terminal box?

This Boxco model measures 1.57 x 2.36 x 0.94 inches, which is 40 x 60 x 24 mm. Its compact size makes it a practical choice where enclosure space is limited.

Is the BC-AGG-4PC suitable for wet or dusty environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. That makes it a good option for environments where moisture and contamination resistance are important.

How durable is the enclosure housing on this model?

The BC-AGG-4PC carries an IK08 impact rating, which indicates resistance to mechanical impact in demanding environments. It is also made from flame-retardant ABS material for added durability and material safety.

What temperature range can this Boxco terminal box handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in both cold and moderately hot operating conditions, depending on the surrounding application requirements.

What distinguishes this model from other terminal box options?

The BC-AGG-4PC combines a compact 40 x 60 x 24 mm enclosure size with a 4-pole terminal box configuration, IP67 protection, and IK08 impact resistance. It also features a grey cover and molded knockouts on each end, which helps differentiate it within Boxco's enclosure box range.

Model	Material	Cover
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 10-pole 75x125x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole with Waterproof Connector 50x70x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 3-pole with Waterproof Connector 33x65x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
