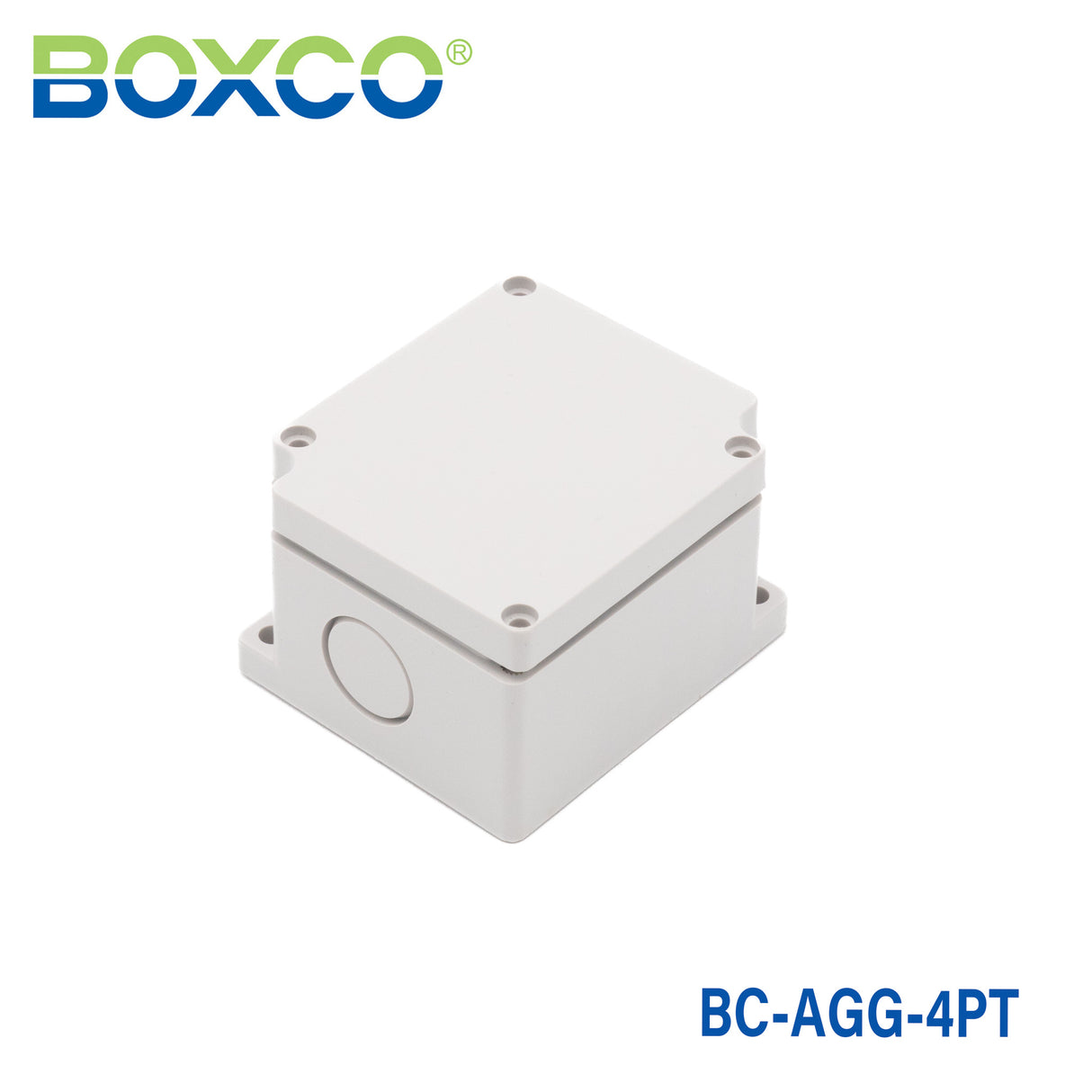

Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover

SKU:

BC-AGG-4PT

Notify me when it's back in stock

Description

Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.

Specifications

Brand

Boxco
Series

Boxco Terminal Series
Standards Met

CE,TUV
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

5.5 cm
Width

9.1 cm
Height

4.3 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Boxco Terminal Box 4-pole BC-AGG-4PT used for?

This model is a compact terminal box designed for enclosure and control box applications where a small, durable housing is needed. It includes integrated terminal blocks with a 4-pole configuration, making it suitable for organized internal distribution in space-constrained industrial or commercial setups.

What are the dimensions of the BC-AGG-4PT terminal box?

The Boxco BC-AGG-4PT measures 2.17 x 3.58 x 1.69 inches, which is 55 x 91 x 43 mm. Its compact size makes it a practical option when panel or enclosure space is limited.

Is this terminal box suitable for demanding indoor or outdoor environments?

Yes, this model is rated IP67 and IK08, which indicates strong protection against dust, water ingress, and impact. It is intended for applications that require a more durable enclosure than general-purpose indoor boxes.

What material is the BC-AGG-4PT made from?

This Boxco terminal box is made from flame-retardant ABS and features a grey cover. That material choice helps provide durability while supporting use in applications where a robust enclosure material is important.

What temperature range can this Boxco terminal box handle?

The BC-AGG-4PT is specified for temperatures from -40 degrees C to 70 degrees C. That range supports use in both cold and moderately hot operating environments, depending on the overall system requirements.

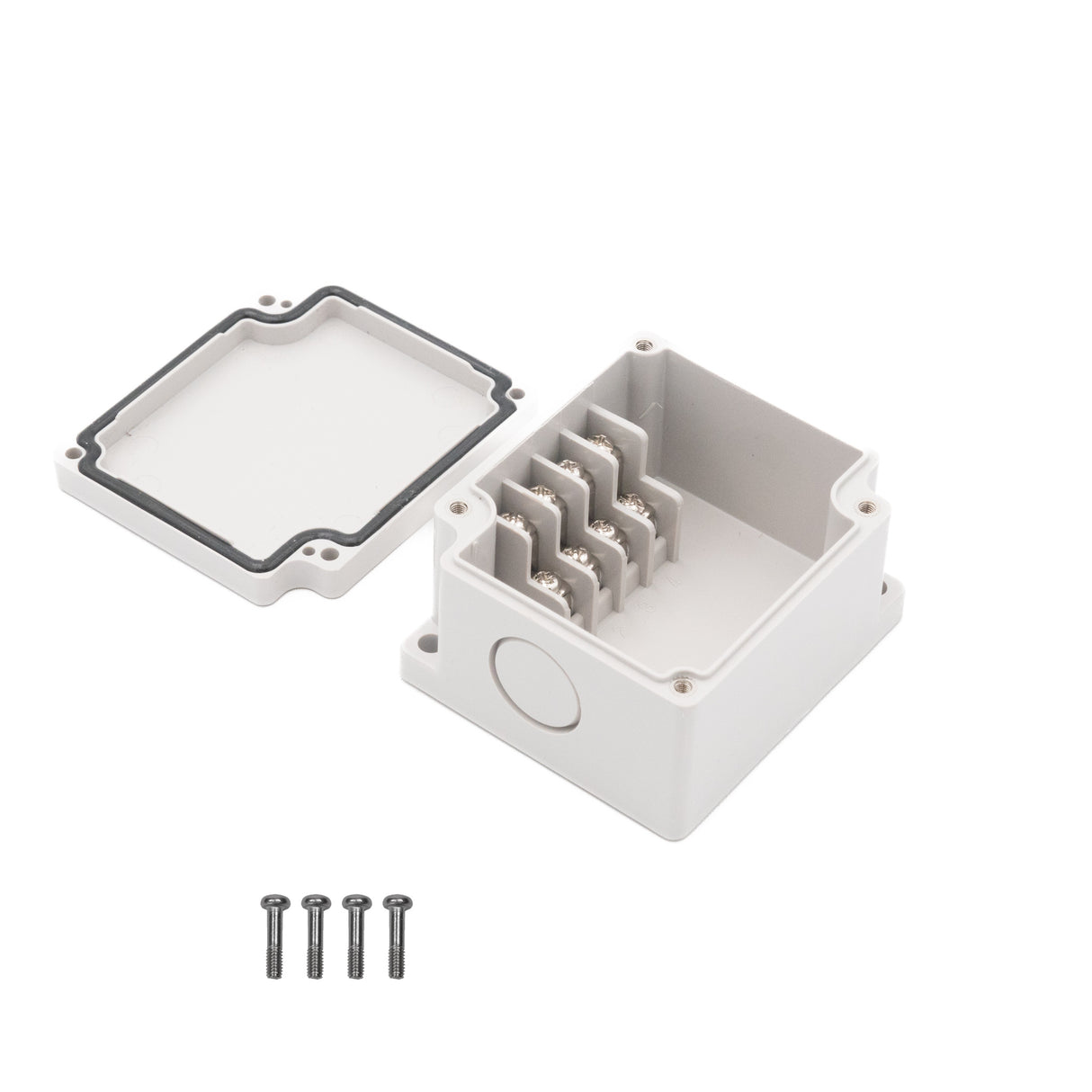

Does this model include built-in terminal blocks?

Yes, the product description states that it integrates terminal blocks and this version is the 4-pole model. That distinguishes it from enclosure boxes that are supplied only as empty housings.

Model	Material	Cover
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole with Waterproof Connector 40x60x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 10-pole 75x125x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Transparent	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Transparent Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole with Waterproof Connector 50x70x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 75x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 3-pole with Waterproof Connector 33x65x24mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 20-pole 100x230x70mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 10-pole 91x110x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover	ABS	Grey	View
