Boxco

Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Grey Cover

SKU BC-AGG-15P
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGG-15P is a 100×185×70 mm ABS Grey enclosure with a opaque cover from the Boxco Terminal block box.

Specifications

BC-AGG-15PSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×185×70 mm (3.94×7.28×2.76 in)

Material

Material
ABS Grey
Cover
Opaque
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

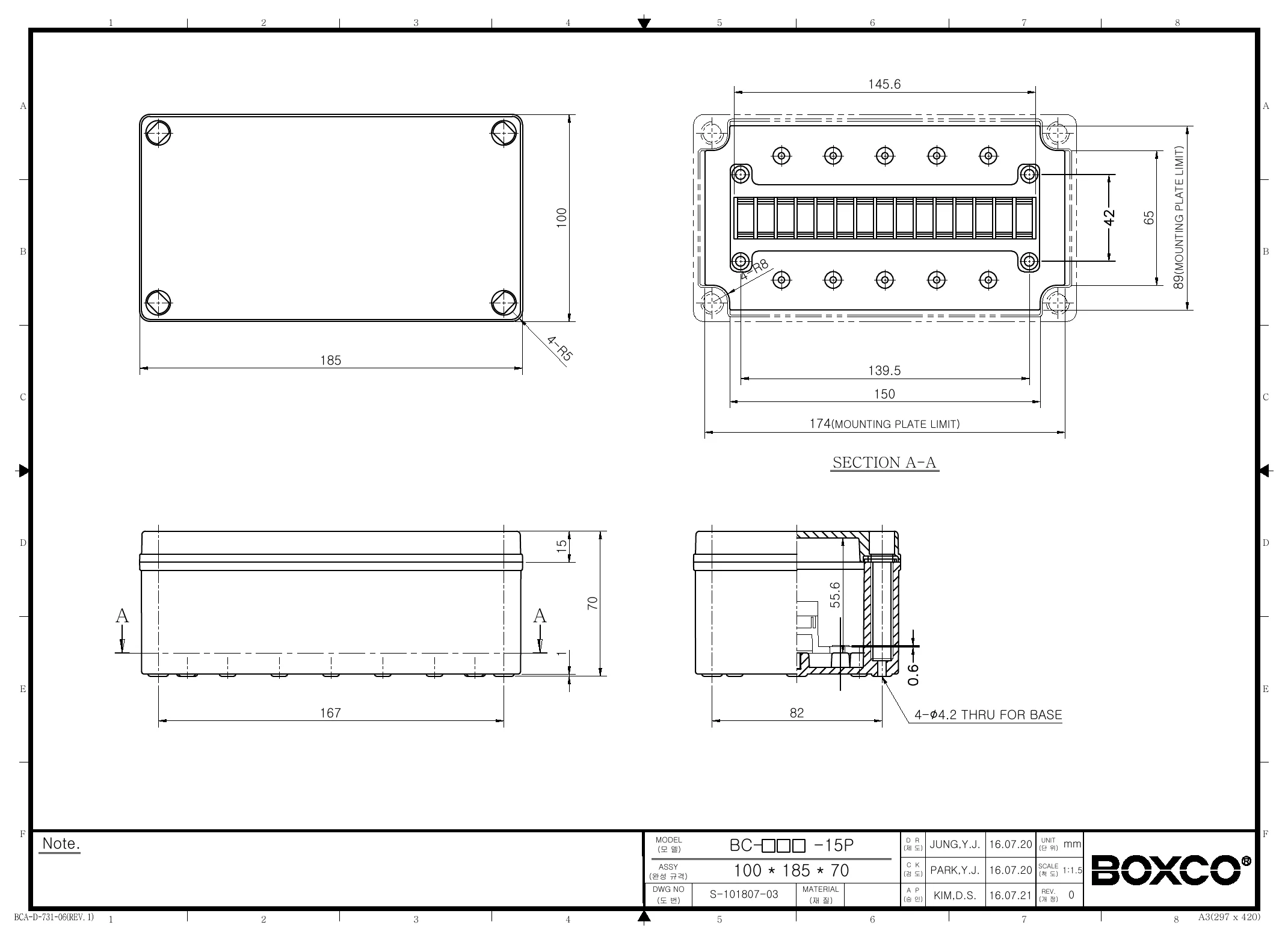

Technical drawings

BC-AGG-15P Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the enclosure size of the Boxco BC-AGG-15P terminal box?

This model measures 3.94 x 7.28 x 2.76 inches, which is 100 x 185 x 70 mm. That makes it a compact enclosure option for applications that need a 15-pole terminal box in a space-conscious form factor.

What protection ratings does the Boxco BC-AGG-15P have?

The BC-AGG-15P is rated IP67 and IK08. IP67 indicates strong protection against dust and temporary water exposure, while IK08 reflects resistance to mechanical impact for demanding industrial environments.

What material is this Boxco terminal box made from?

This model is made from flame-retardant ABS and includes a grey cover. The material choice makes it suitable for general enclosure use where durability and a non-metallic housing are important.

Can the BC-AGG-15P be used in harsh temperature conditions?

Yes, this terminal box is specified for use from -40 degrees C to 70 degrees C. That operating range supports use in both low-temperature and elevated-temperature industrial settings within those limits.

What makes the BC-AGG-15P different from a standard empty enclosure box?

The BC-AGG-15P is a terminal box with integrated terminal blocks and a 15-pole configuration. Compared with a standard empty enclosure, this model is intended for applications that require an enclosure built around an integrated terminal-box format.

What kinds of applications is the Boxco BC-AGG-15P suited for?

This model is suited for industrial and commercial enclosure applications that need a compact terminal box with IP67 sealing and IK08 impact resistance. Its molded knockouts on each end and integrated terminal-block design make it a practical choice where a protected multi-pole enclosure is needed.

What is the warranty period for the Boxco BC-AGG-15P?

The listed warranty period for this model is 1 year. That provides baseline coverage for this specific terminal box model as supplied.
