Boxco

Boxco Terminal Box 15-pole 100x185x70mm, IP67, IK08, ABS, Transparent Cover

SKU BC-ATG-15P
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATG-15P is a 100×185×70 mm ABS Grey enclosure with a transparent cover from the Boxco Terminal block box.

Specifications

BC-ATG-15PSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×185×70 mm (3.94×7.28×2.76 in)

Material

Material
ABS Grey
Cover
Transparent
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

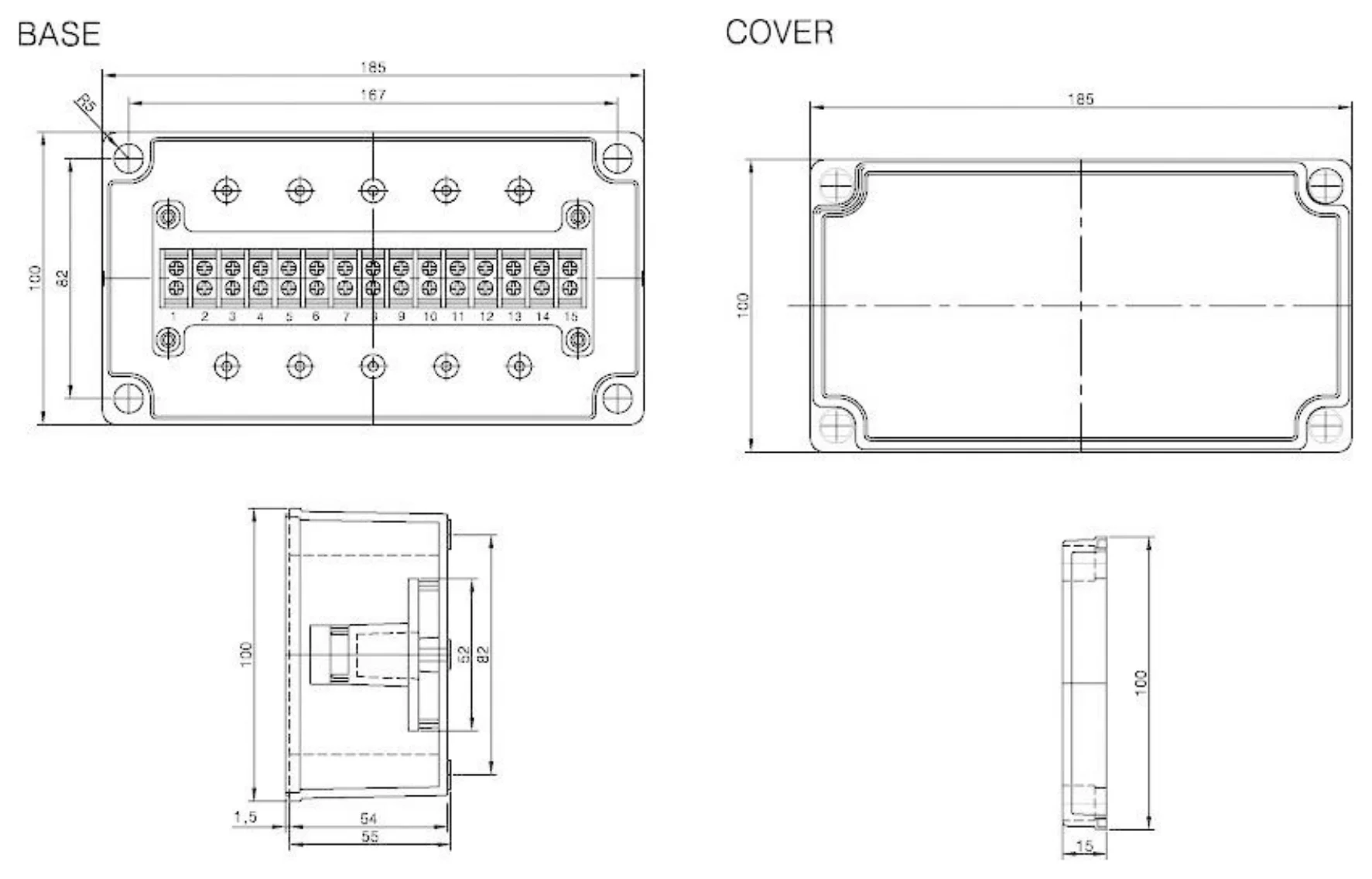

BC-ATG-15P Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the main use of the Boxco BC-ATG-15P terminal box?

The Boxco BC-ATG-15P is designed as a terminal box enclosure for applications that need a compact, durable housing. This model includes a 15-pole configuration and is suited for industrial or commercial environments where enclosure protection and organized internal terminal capacity are important.

What are the dimensions of the Boxco BC-ATG-15P?

This terminal box measures 3.94 x 7.28 x 2.76 inches, which is 100 x 185 x 70 mm. Its size makes it a mid-format enclosure option for applications that need more internal space than very compact boxes while still remaining relatively lightweight.

How well is this enclosure protected against dust, water, and impact?

The Boxco BC-ATG-15P is rated IP67 and IK08. That means it is built for strong protection against dust ingress and temporary water exposure, along with solid resistance to mechanical impact for demanding environments.

What material is the Boxco BC-ATG-15P made from?

This model is made from flame-retardant ABS and includes a transparent cover. The material choice helps provide durability in industrial settings while the clear cover allows visual inspection without opening the enclosure.

What temperature range can this Boxco terminal box handle?

The BC-ATG-15P is specified for operating environments from -40°C to 70°C. This wide temperature range makes it suitable for use in both cold and warm conditions where standard-purpose enclosures may be too limited.

Does this model include built-in terminal capacity?

Yes, this Boxco terminal box is described as an integrated terminal block model with a 15-pole configuration. Buyers comparing enclosure options can use that pole count to determine whether this specific model matches their required terminal capacity.
