Boxco

Boxco Terminal Box 4-pole 50x82x43mm, IP67, IK08, ABS, Grey Cover

SKU BC-AG-4P21H
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AG-4P21H is an ABS terminal box (82×50×43 mm) from Boxco.

Specifications

BC-AG-4P21HSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H
82×50×43 mm (3.23×1.97×1.69 in)
Number of terminals
4

Material

Material
ABS
Base colour
Grey
Cover
Grey

Protection & environment

IP rating
IP67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Use
Outdoor
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

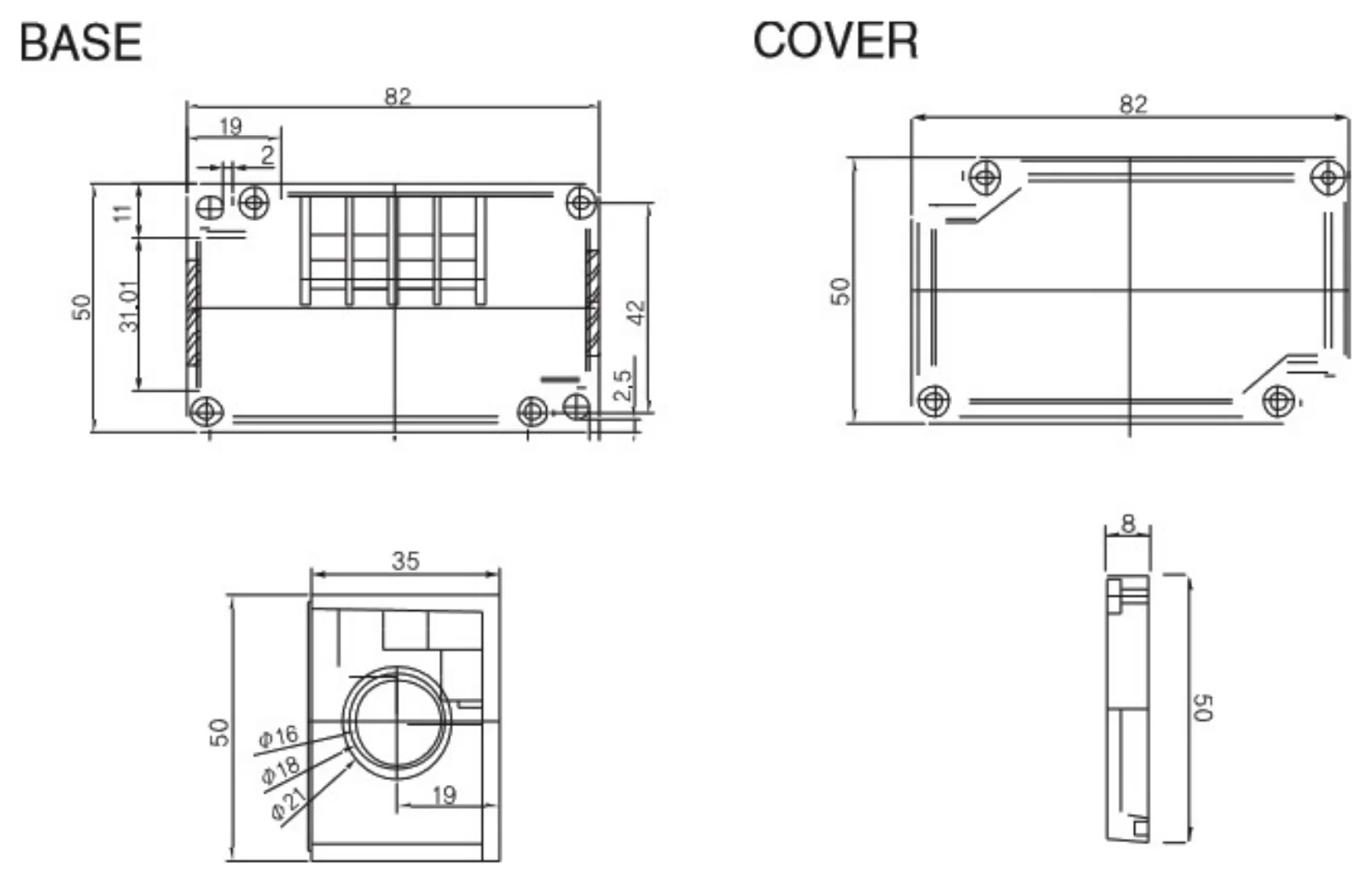

BC-AG-4P21H Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Boxco BC-AG-4P21H used for?

The BC-AG-4P21H is a compact terminal box designed for enclosure and control box applications where a small, protected housing is needed. This model includes an integrated 4-pole terminal block and is suited to industrial and commercial use where space is limited.

What are the key specifications of this terminal box?

This Boxco model measures 1.97 x 3.23 x 1.69 inches (50 x 82 x 43 mm) and weighs 0.0200 kg. It has a grey ABS cover, a 4-pole terminal configuration, an IP67 ingress protection rating, and an IK08 impact rating.

Is the BC-AG-4P21H suitable for dusty or wet environments?

Yes. The IP67 rating indicates this terminal box is built for strong protection against dust ingress and temporary water exposure. That makes it a good fit for demanding environments where enclosure sealing is important.

How durable is this Boxco terminal box?

The BC-AG-4P21H is made from flame-retardant material and carries an IK08 impact rating for mechanical protection. These features make it a practical choice for applications that need both enclosure safety and resistance to everyday physical stress.

What temperature range can this enclosure handle?

This model is rated for ambient temperatures from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating conditions, provided the overall application stays within the product's published limits.

Does this model include internal terminal blocks?

Yes. The BC-AG-4P21H is described as an integrated terminal box with a 4-pole terminal block. It is part of Boxco's terminal box range, which combines enclosure protection with built-in pole options in a compact housing.
