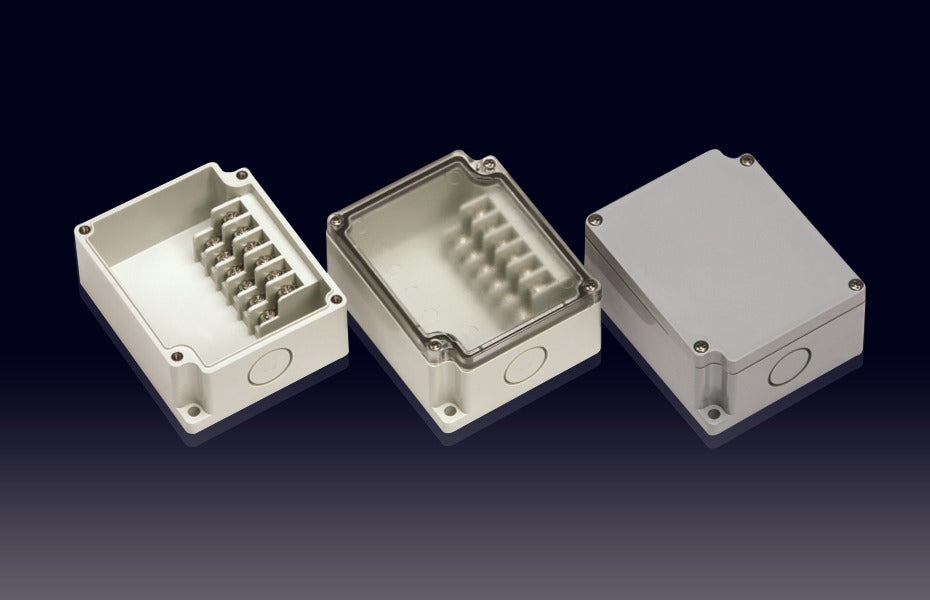

Boxco Terminal Box 6-pole 55x91x43mm, IP67, IK08, ABS, Grey Cover

The BC-AG-6P18H is a compact terminal box intended for enclosing and protecting terminal block assemblies in industrial and commercial applications. Its integrated 6-pole terminal block design makes it suited for projects that need a small, enclosed terminal box rather than a general-purpose empty enclosure.

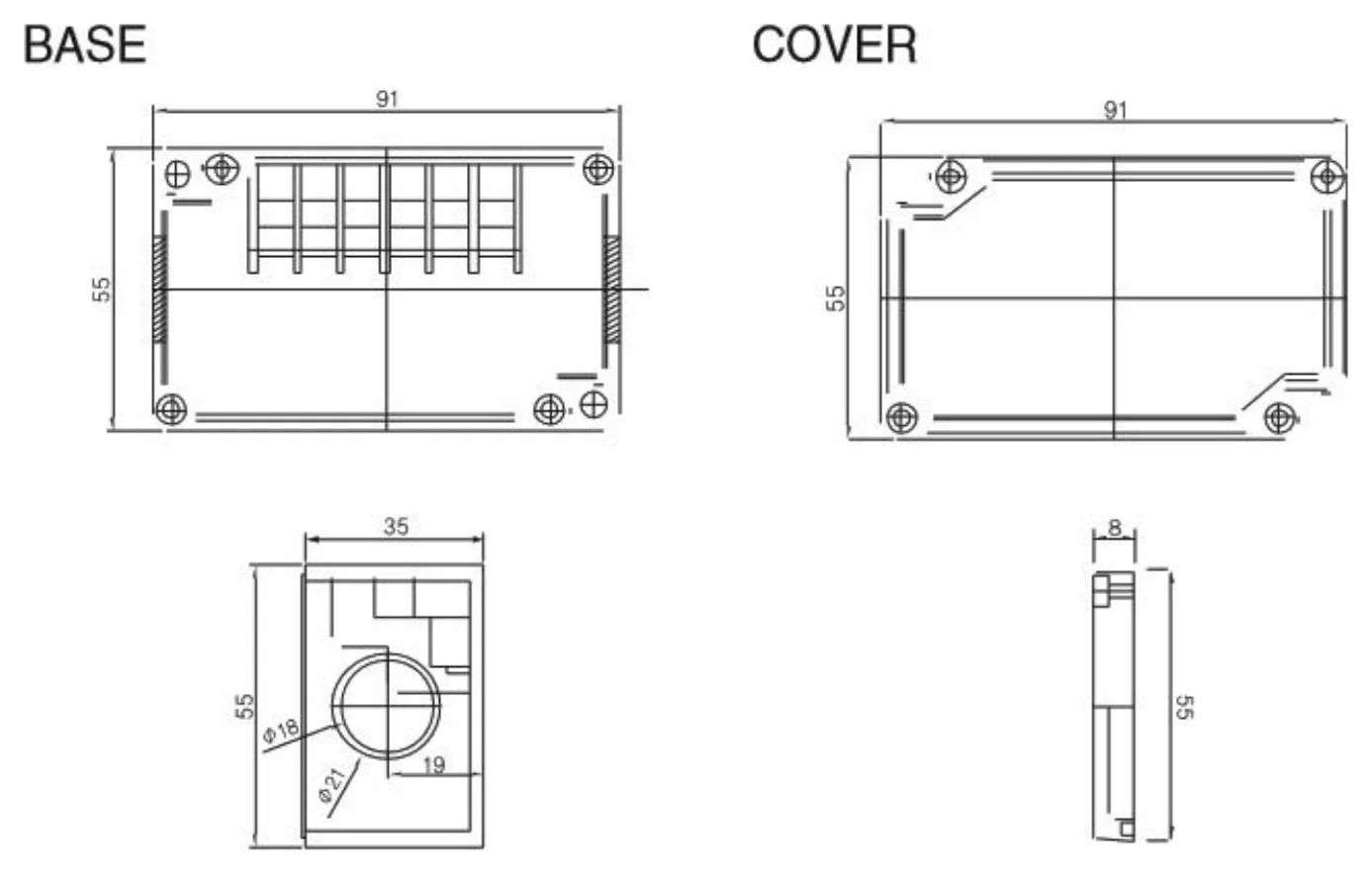

This model measures 2.17 x 3.58 x 1.69 inches (55 x 91 x 43 mm) and includes a 6-pole terminal block. It is rated IP67 and IK08, uses ABS construction, and comes with a grey cover. The listed product weight is 0.0200 kg.

This model carries an IP67 rating, which indicates a high level of protection against dust ingress and temporary immersion in water. That makes it a practical choice for environments where the enclosure may be exposed to dust or moisture, provided the overall application requirements match the product rating.

The enclosure is rated IK08 for impact resistance and is made from flame-retardant ABS material. That combination supports use in applications where both physical protection and material durability matter. It is designed as a compact protective housing rather than a heavy-duty metal enclosure.

The specified operating temperature range for the BC-AG-6P18H is -40°C to 70°C. This allows it to be considered for both low-temperature and moderately high-temperature environments within that stated range.

Yes. The product description states that Boxco terminal boxes have molded knockouts on each end. This is a built-in enclosure feature of the product family and can be useful when evaluating compatibility with your enclosure layout requirements.
