Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Actuator 1-10Vdc LED 120-230V Marine

Change-over relay output30mA

SKU VM-01975

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-01975 is Vimar 01975, actuator 1-10Vdc LED 120-230V MARINE.

Actuator with 1-10 Vdc 30 mA output for LED control, 120-230 V~ 2,5 A change-over relay output, supply voltage 120-230 V~ 50/60 Hz, for DIN (60715 TH35) installation, occupies 3 17,5 mm modules. For MARINE sector

Specifications

VM-01975Specifications from the official datasheet

Technical data

Product type: Dimming actuator for bus system
Bus system KNX: No
Bus system KNX-RF (Radio Frequency): No
Bus system radio frequency: No
Bus system LON: No
Bus system Powernet: No
Radio frequency bidirectional: No
Model: Control module
Width in number of modular spacings: 3
With bus connection: Yes
Bus module detachable: No
Local operation/hand operation: No
With LED indication: Yes
Number of outputs: 2
Power boost suitable: No
Type of load: Universal and LED Retrofit
Voltage: 120 - 230 V
Parallel-service possible: No
Frequency: 50 - 60 HZ
Degree of protection (IP): IP20

Packaging

EAN: 8007352431553
Packed size (cm): 11.7 × 10.8 × 7.1
Packed weight: 177 g

Certifications

Certifications: CE marking (EU), UK PSTI compliance, WEEE Directive

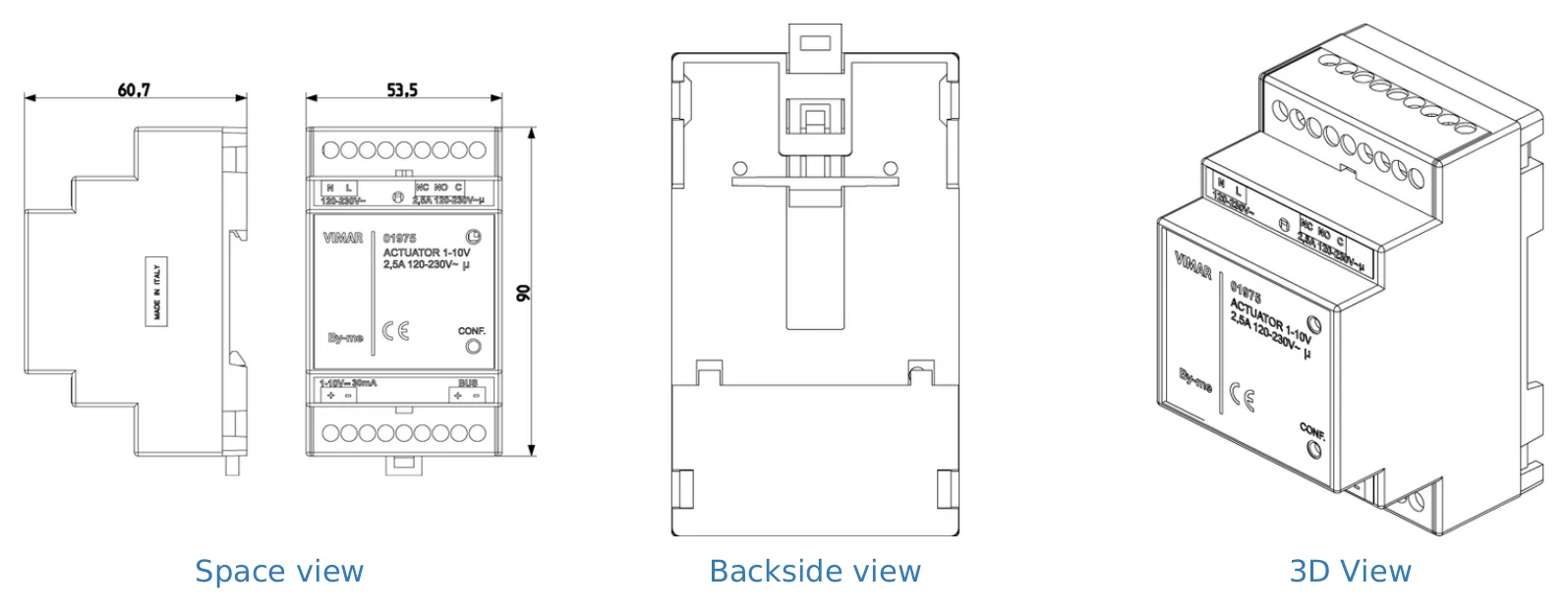

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What does the Vimar VM-01975 actuator do?

The Vimar VM-01975 is an actuator for LED control with a 1-10 Vdc output rated at 30 mA. It also includes a 120-230 V~ change-over relay output rated at 2.5 A, making it suitable for control functions in compatible building or marine electrical systems.

Is this model intended for marine environments?

Yes. This specific version is designated for the MARINE sector, which distinguishes it from general-purpose variants intended for standard building applications. Buyers looking for a marine-focused actuator should verify this model designation when comparing options.

What are the main electrical specifications of this actuator?

This model provides a 1-10 Vdc output at 30 mA for LED control. It also has a 120-230 V~ 2.5 A change-over relay output and operates on a 120-230 V~ 50/60 Hz supply.

What installation format does the VM-01975 use?

The actuator is designed for DIN rail installation on a 60715 TH35 rail. It occupies 3 modules of 17.5 mm each, which helps buyers assess panel space requirements before specifying it.

What temperature range is this actuator rated for?

The stated operating temperature range is from -20 °C to 50 °C. That makes it suitable for applications that need reliable performance across both low and moderately high ambient temperatures within that range.

How heavy is the Vimar VM-01975?

This actuator has a listed weight of 0.177 kg. That relatively compact weight can be useful when reviewing enclosure loading or comparing DIN rail components for panel planning.

What warranty period is listed for this model?

The listed warranty period for the Vimar VM-01975 is 3 years. For procurement or project documentation, this can be referenced as part of the product's support and lifecycle expectations.
