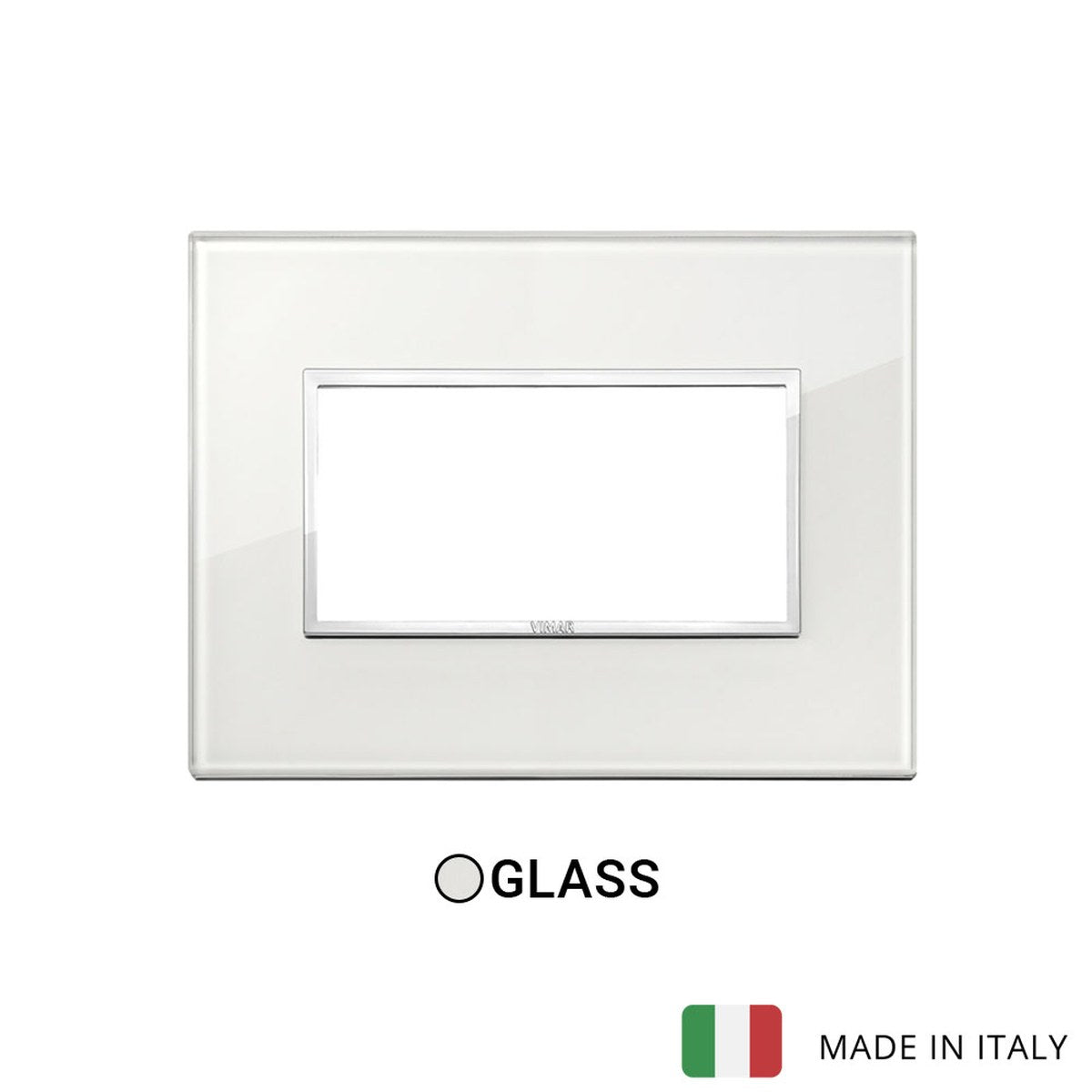

Vimar Eikon Evo Plate 4M Crystal White Diamond
Log in to see priceOverview
VM-21654.70 is Vimar EIKON 21654.70, plate 4M crystal white diamond.
4-module cover plate, bevelled crystal, diamant white
Specifications
VM-21654.70Specifications from the official datasheet
Technical data
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Glass
- Material quality
- Acrylic glass
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9016
- Transparent
- No
- With hinged lid
- No
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 140.5 mm
- Height
- 106 mm
- Depth
- 10.3 mm
- Built-in width
- 140.5 mm
- Built-in height
- 106 mm
Packaging
- EAN
- 8007352423169
- Packed size (cm)
- 18 × 14.1 × 3.9
- Packed weight
- 195 g
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

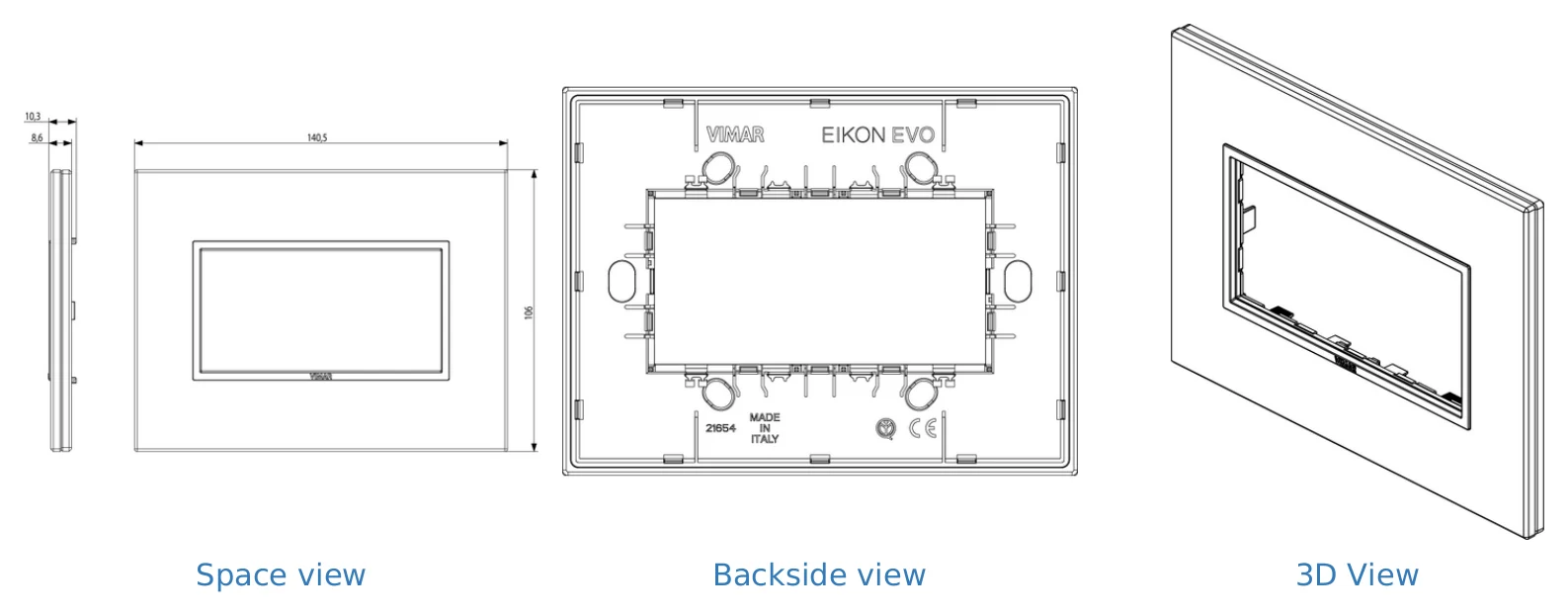

Technical drawings
Downloads
Catalogues15
