Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

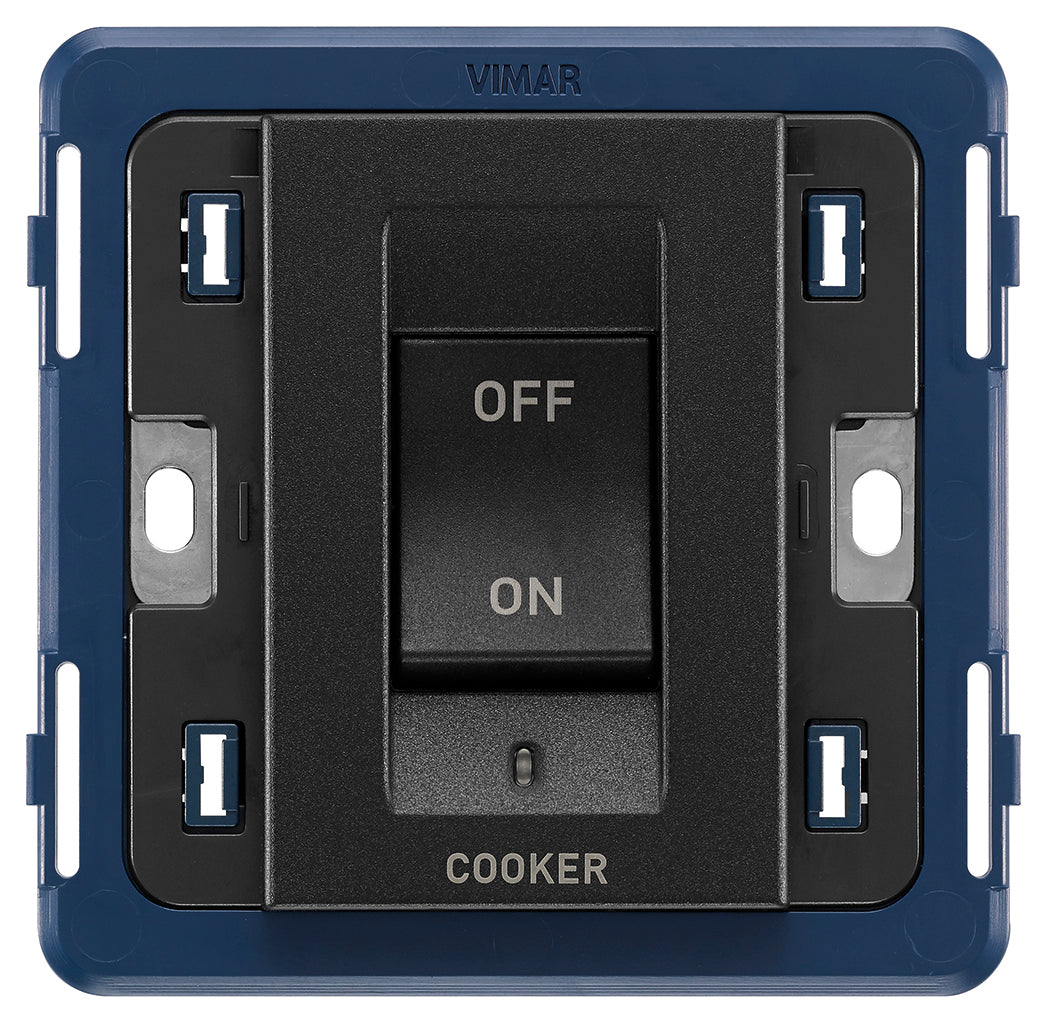

Arke 2P 45A 1-Way Cooker Switch 3M Black

2P45A3MBlack
SKU VM-19018.CK
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19018.CK is Vimar ARKÉ 19018.CK, 2P 45A 1-way switch COOKER 3M grey.

2P 45 A 250 V~ 1-way switch, lightable, COOKER symbol, with built-in frame for British standard boxes, to complete with 3- module British standard cover plates, grey. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Specifications

VM-19018.CKSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 2-pole
Operating method
Rocker/button
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
84.3 mm
Device height
82.5 mm
Device depth
32.2 mm
Built-in depth
22.5 mm

Packaging

EAN
8007352594449
Packed size (cm)
8.5 × 3.9 × 8.6
Packed weight
117.1 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, ASTA (UK), WEEE Directive

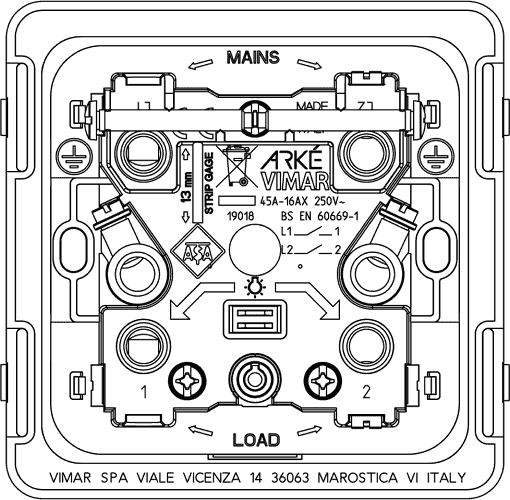

Technical drawings

VM-19018.CK Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-19018.CK used for?

The VM-19018.CK is a 2P 45A 1-way cooker switch designed for applications where a dedicated high-current switching device is required. It is part of the Vimar Arke range and is intended for professional residential or commercial electrical fit-outs that use this series.

What are the main specifications of this cooker switch?

This model is rated at 45A and 250V, and it is a 1-way, 2-pole switch. It is supplied in a 3-module format and has a black finish, making it suitable for projects that need both a specific electrical rating and a matching Arke aesthetic.

Which design series does this switch belong to?

This product belongs to the Vimar Arke series. That makes it a relevant choice for projects already using Arke devices and accessories, especially where a consistent look across switch modules is important.

Is this switch suitable for environments with varying temperatures?

Yes, the listed operating temperature range is from -20°C to 50°C. That gives it a broad environmental tolerance for indoor settings where temperature conditions may vary across seasons or building areas.

What finish and appearance does the VM-19018.CK have?

This model comes in black, giving it a darker, more contemporary appearance than standard white alternatives. It is intended for buyers who want a functional cooker switch that also aligns with a modern Arke design scheme.

What warranty is provided for this product?

The stated warranty period for this model is 3 years. That provides an additional level of assurance for trade buyers and specifiers selecting components for longer-term use.
