Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

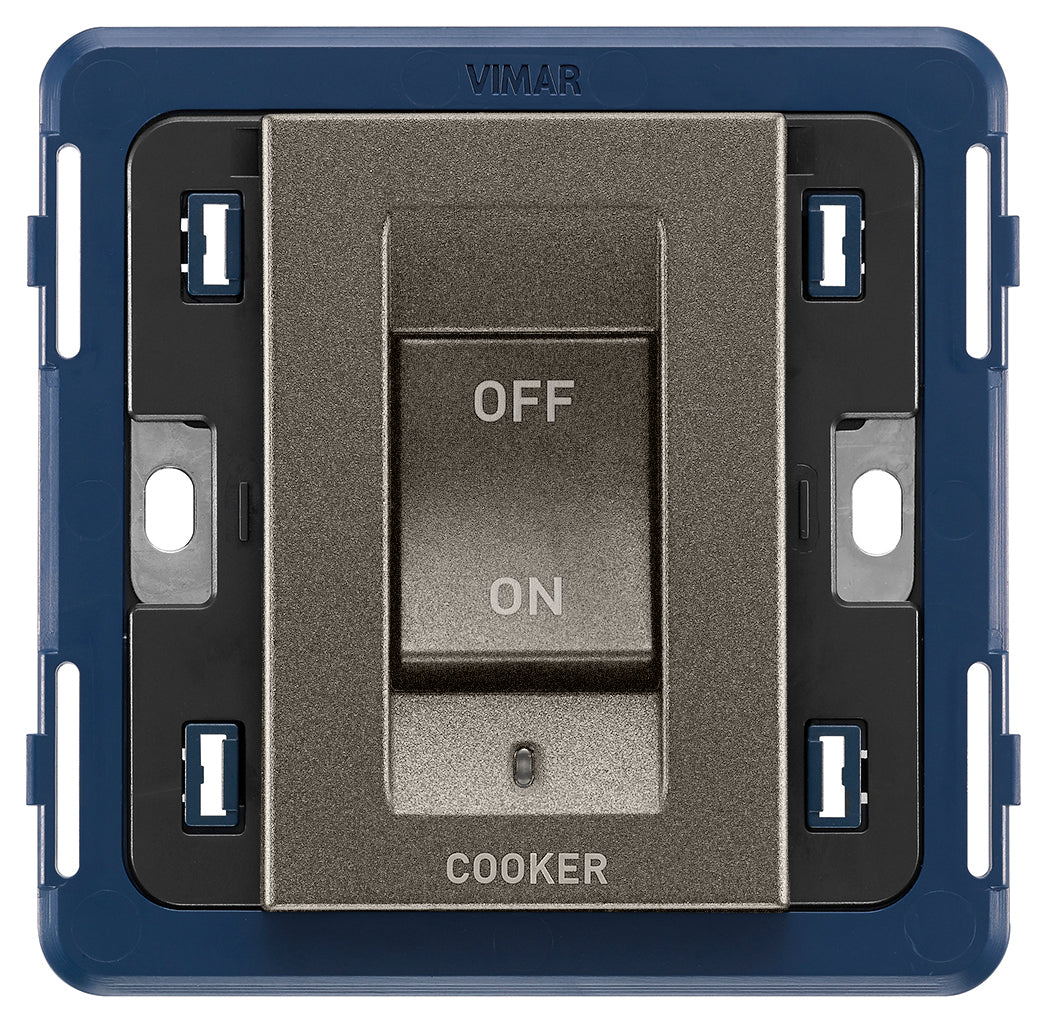

Arke 2P 45A 1-Way Cooker Switch 3M Grey

2P45A3MGrey
SKU VM-19018.CK.M
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19018.CK.M is Vimar ARKÉ 19018.CK.M, 2P 45A 1-way switch COOKER 3M Metal.

2P 45 A 250 V~ 1-way switch, lightable, COOKER symbol, with built-in frame for British standard boxes, to complete with 3- module British standard cover plates, Metal. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Specifications

VM-19018.CK.MSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 2-pole
Operating method
Rocker/button
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
84.3 mm
Device height
82.5 mm
Device depth
32.2 mm
Built-in depth
22.5 mm

Packaging

EAN
8007352594463
Packed size (cm)
8.5 × 3.9 × 8.6
Packed weight
117.2 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, ASTA (UK), WEEE Directive

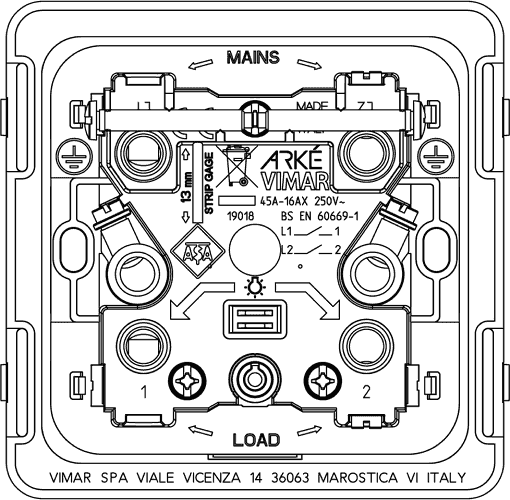

Technical drawings

VM-19018.CK.M Drawings
Drawings

Downloads

FAQ

What is the Arke 2P 45A 1-Way Cooker Switch 3M Grey designed for?

This model is a cooker switch accessory module in the Vimar Arke range. It is intended for applications where a 2P, 1-way cooker switch module is required, with a design that matches Arke series installations.

What are the main electrical specifications of this model?

The Arke 2P 45A 1-Way Cooker Switch 3M Grey is rated at 45A and 250 V. These are the key published electrical specifications for this specific module.

Is this switch part of the Vimar Arke series?

Yes, this product belongs to the Vimar Arke series. It is intended for buyers looking to maintain a consistent Arke aesthetic and product family across a project.

What finish and appearance does this cooker switch module have?

This version comes in a grey finish. Its styling follows the Arke design language, which is positioned as contemporary, minimalist, and suitable for spaces where appearance matters alongside function.

What environmental temperature range is this model rated for?

This module is rated for operation from -20 degrees C to 50 degrees C. That published range helps buyers assess whether it is suitable for the expected ambient conditions of their project.

How much does the Arke 2P 45A 1-Way Cooker Switch 3M Grey weigh?

The listed product weight is 0.1172 kg. This can be useful for project documentation, shipping calculations, and product handling estimates.

What warranty is provided for this model?

The stated warranty period for this product is 3 years. For buyers specifying branded switchgear, that gives a clear reference point for product support coverage.
