Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

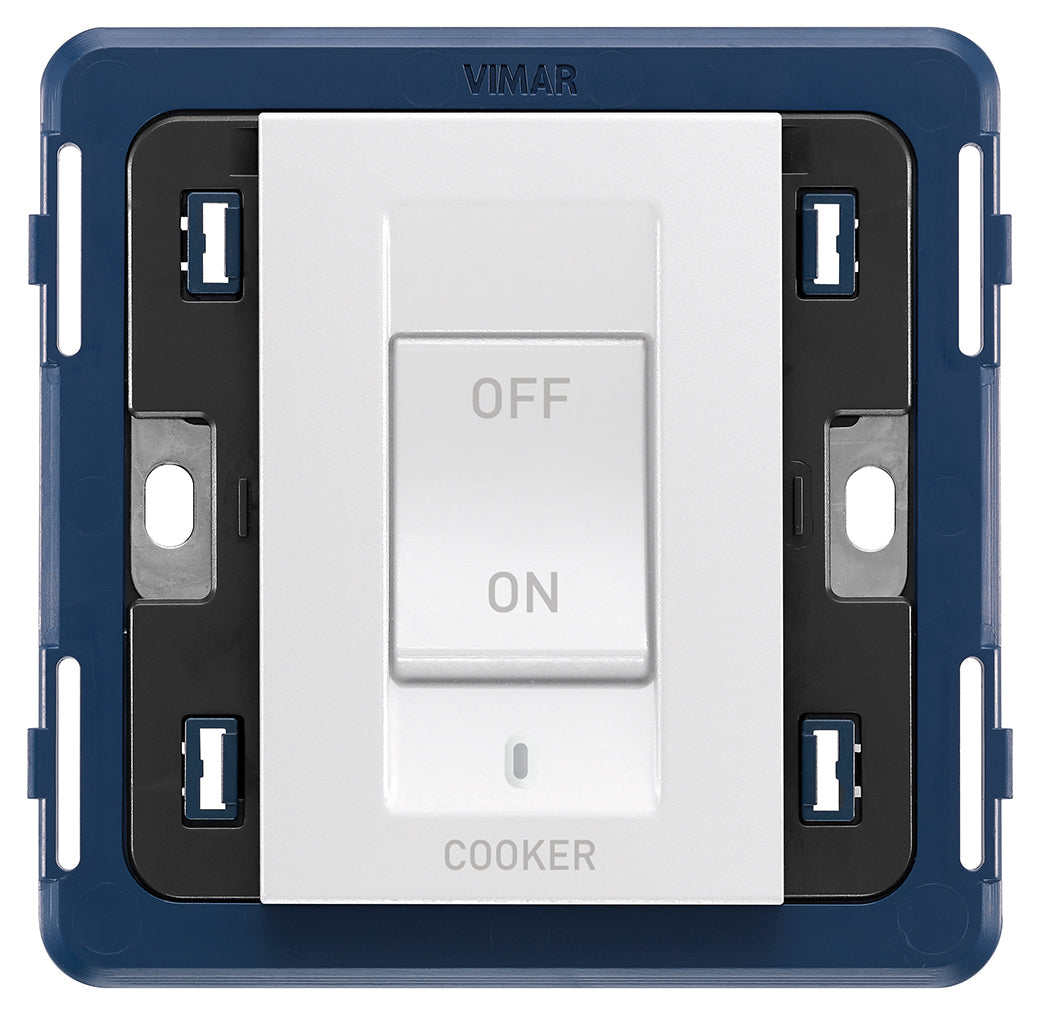

Arke 2P 45A 1-Way Cooker Switch 3M White

2P45A3MWhite
SKU VM-19018.CK.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19018.CK.B is Vimar ARKÉ 19018.CK.B, 2P 45A 1-way switch COOKER 3M white.

2P 45 A 250 V~ 1-way switch, lightable, COOKER symbol, with built-in frame for British standard boxes, to complete with 3- module British standard cover plates, white. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Specifications

VM-19018.CK.BSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 2-pole
Operating method
Rocker/button
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
84.3 mm
Device height
82.5 mm
Device depth
32.2 mm
Built-in depth
22.5 mm

Packaging

EAN
8007352595897
Packed size (cm)
8.5 × 3.9 × 8.6
Packed weight
111.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, ASTA (UK), WEEE Directive

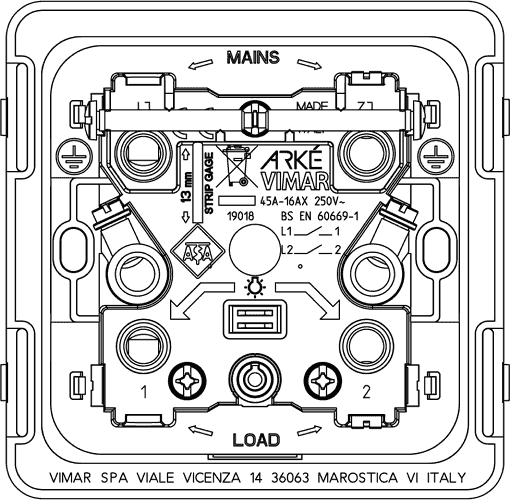

Technical drawings

VM-19018.CK.B Drawings
Drawings

Downloads

FAQ

What is the Arke 2P 45A 1-Way Cooker Switch 3M White designed for?

This model is a cooker switch accessory module intended for electrical control applications where a dedicated high-current switch is needed. Its 45A rating and 2-pole design make it suited to demanding appliance-switching use cases in commercial or residential fit-outs.

What are the key electrical specs of this cooker switch module?

The Arke 2P 45A 1-Way Cooker Switch 3M White is rated at 250 V and 45 A. It is a 2-pole, 1-way switch module, which is important for buyers matching the device to project requirements and system standards.

Is this switch suitable for projects that need a clean white finish?

Yes. This version comes in a white finish, making it a good fit for interiors that need a neutral, understated appearance. It is positioned within the Vimar Arke range, which emphasizes a contemporary and minimalist look.

What temperature range can this cooker switch module operate in?

This model is specified for ambient temperatures from -20°C to 50°C. That gives it a useful operating range for many indoor commercial and residential environments, provided the overall installation conditions stay within product limits.

Is this product part of the Vimar Arke series?

Yes. The product name and category data identify it as part of the Vimar Arke series. That matters for buyers who need a module that aligns with Arke-based project selections and visual consistency across the range.

What warranty is provided for this cooker switch?

This model includes a 3-year warranty period. For B2B buyers, that helps support maintenance planning and confidence when specifying the product for ongoing use.
