Vimar

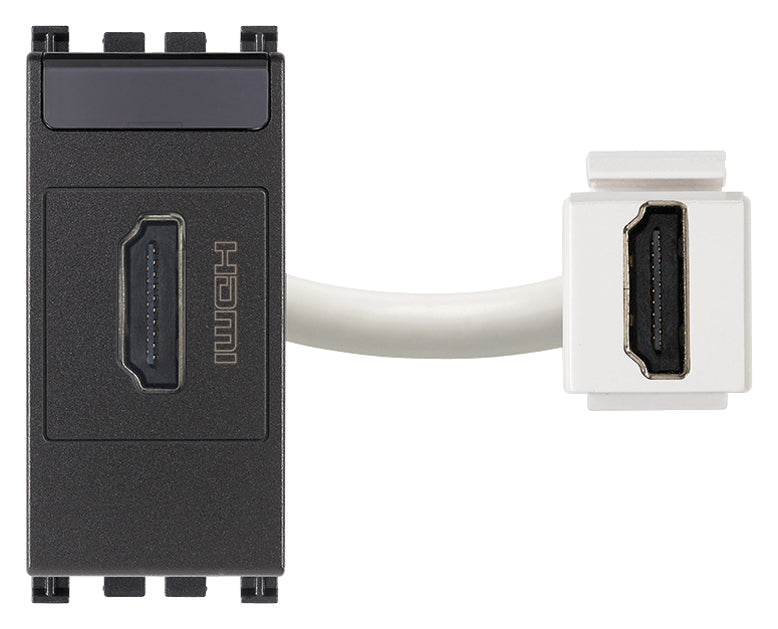

Arke HDMI Outlet Socket Connector Grey

ConnectorGrey
SKU VM-19346
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19346 is Vimar ARKÉ 19346, HDMI 2.1b socket connector grey.

Socket outlet with HDMI 2.1b connector, Keystone fixing, grey

Specifications

VM-19346Specifications from the official datasheet

Technical data

Product type
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
HDMI
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22.3 mm
Device height
49 mm
Device depth
46.9 mm

Packaging

EAN
8007352450929
Packed size (cm)
14.2 × 6.7 × 5.9
Packed weight
76.2 g

Certifications

Certifications
CE marking (EU), RoHS UAE, WEEE Directive

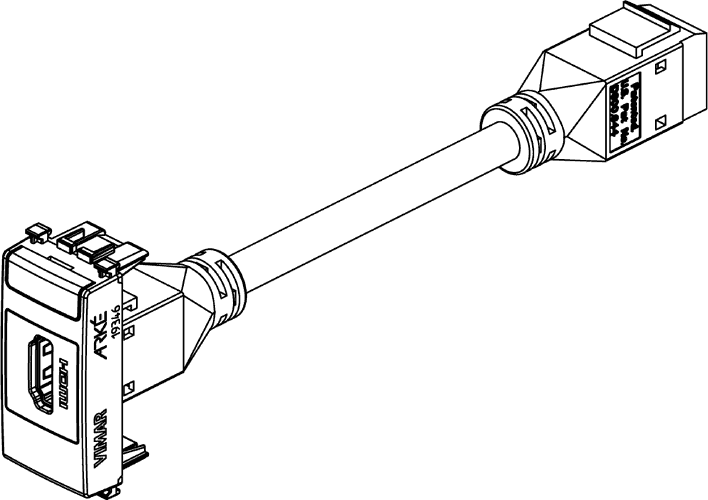

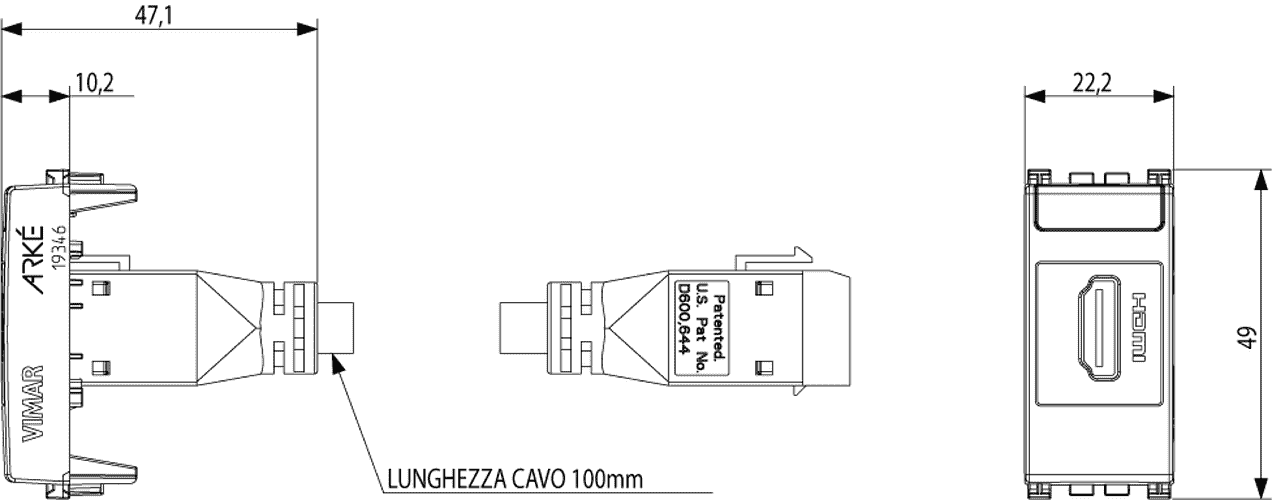

Technical drawings

VM-19346 Drawings
Drawings

Downloads

FAQ

What is the Arke HDMI Outlet Socket Connector Grey used for?

The VM-19346 is an HDMI outlet socket connector from the Vimar Arké range. It is intended for AV and data outlet points where a grey Arké module finish is needed for a coordinated switch and socket installation.

Is this HDMI socket connector part of the Vimar Arké series?

Yes. This product is listed under the Arké switch accessory module family and Arké data/AV categories. It is designed to match Arké-style light switches, sockets, and modules.

What colour is the VM-19346 HDMI outlet socket connector?

The finish colour for this model is grey. The grey finish suits Arké installations where a neutral, contemporary module colour is preferred.

What temperature range is this HDMI outlet socket connector rated for?

The listed operating temperature range is -20 °C to 50 °C. This makes the VM-19346 suitable for indoor environments that remain within those limits.

What is the warranty period for the Arke HDMI Outlet Socket Connector Grey?

This model has a listed warranty period of 3 years. The warranty applies to the VM-19346 product as specified in the product data.

How much does this HDMI outlet socket connector weigh?

The VM-19346 has a listed weight of 0.0818 kg. This is the product weight provided for the grey Arké HDMI outlet socket connector.
