Vimar Arke HDMI 2.1b Socket Connector Metal
Log in to see priceOverview

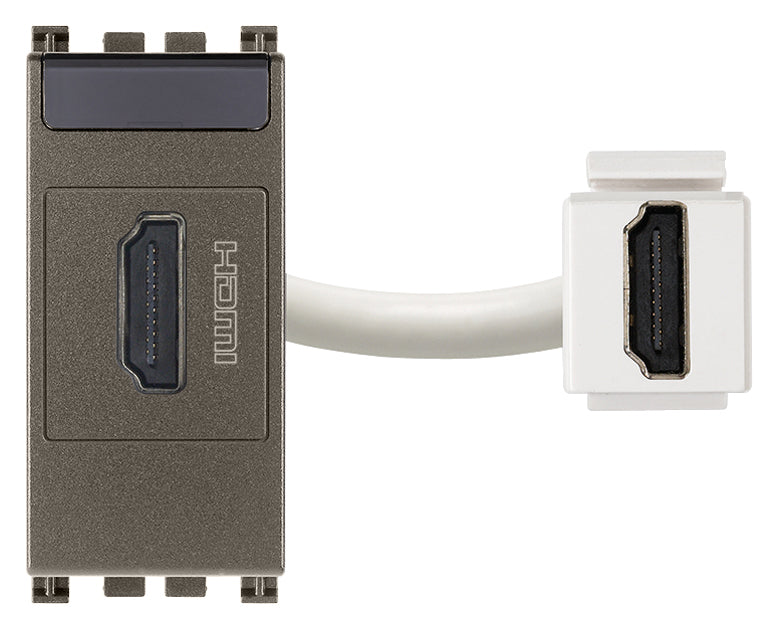

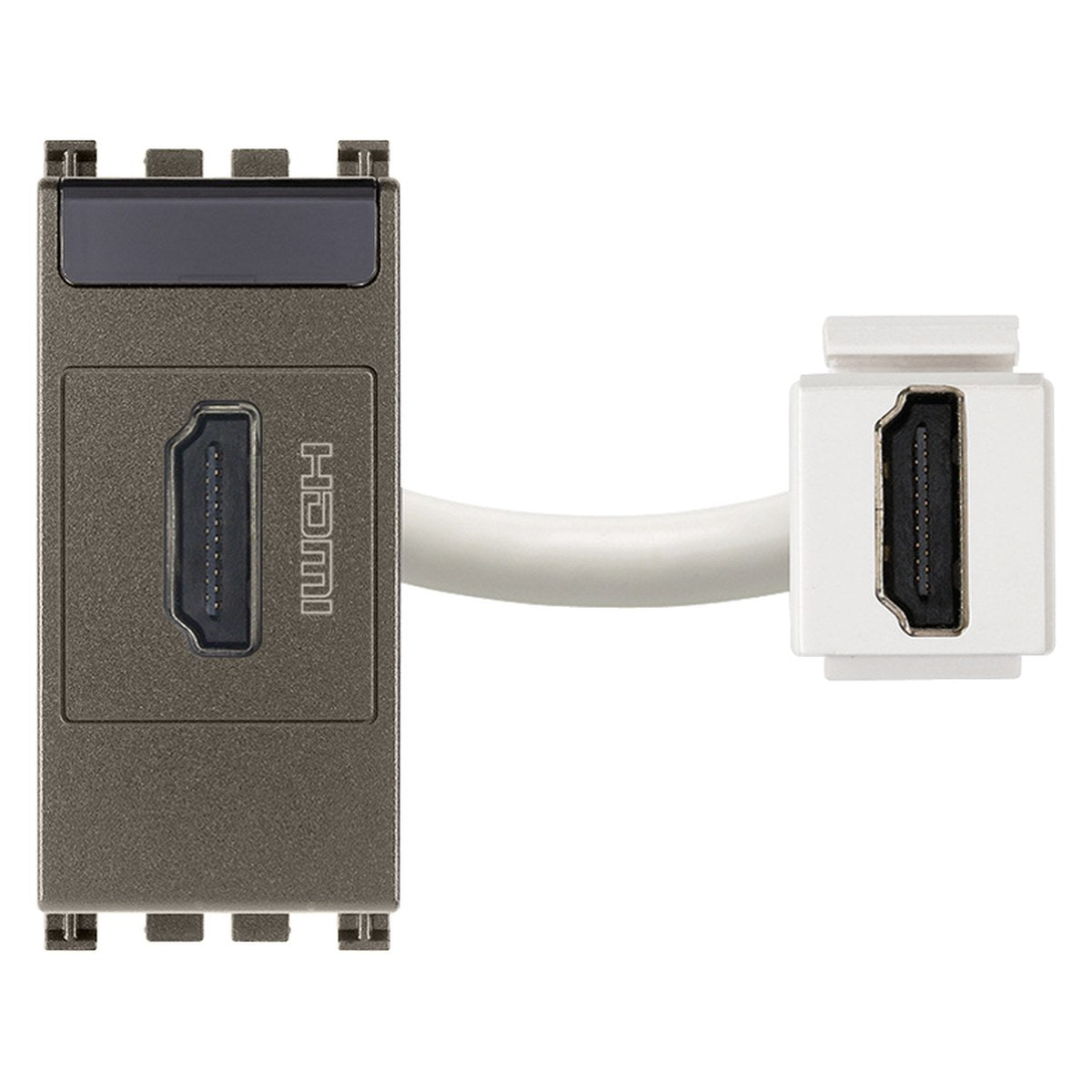

VM-19346.M is Vimar ARKΓ 19346.M, HDMI 2.1b socket connector Metal.
Socket outlet with HDMI 2.1b connector, Keystone fixing, Metal
Specifications
VM-19346.MSpecifications from the official datasheet
Technical data
- Product type
- Insert/cover for communication technology
- Assembly arrangement
- Modular device for domestic switching devices
- Utilization
- HDMI
- Support ring
- No
- With dust cover
- No
- With hinged lid
- No
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Aluminium
- RAL-number (similar)
- 9007
- Transparent
- No
- Number of modules (module system)
- 1
- With strain relief
- No
- Luster terminal
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 22.2 mm
- Device height
- 49 mm
- Device depth
- 47.1 mm
Packaging
- EAN
- 8007352594500
- Packed size (cm)
- 14.2 Γ 6.7 Γ 5.9
- Packed weight
- 81.8 g
Certifications
- Certifications
- CE marking (EU), RoHS UAE, WEEE Directive

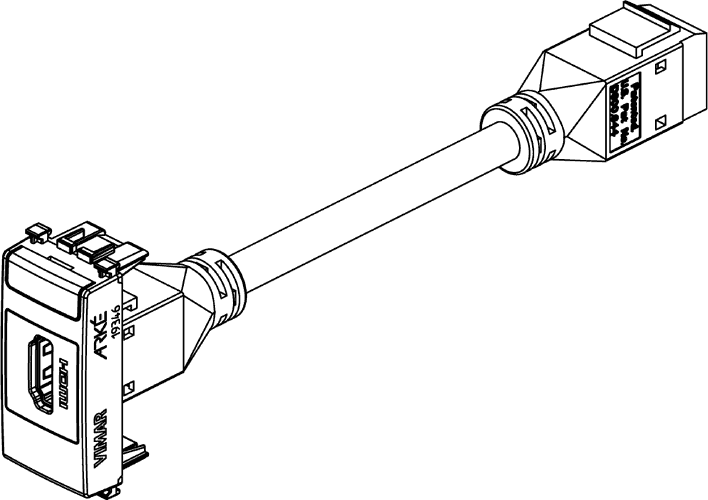

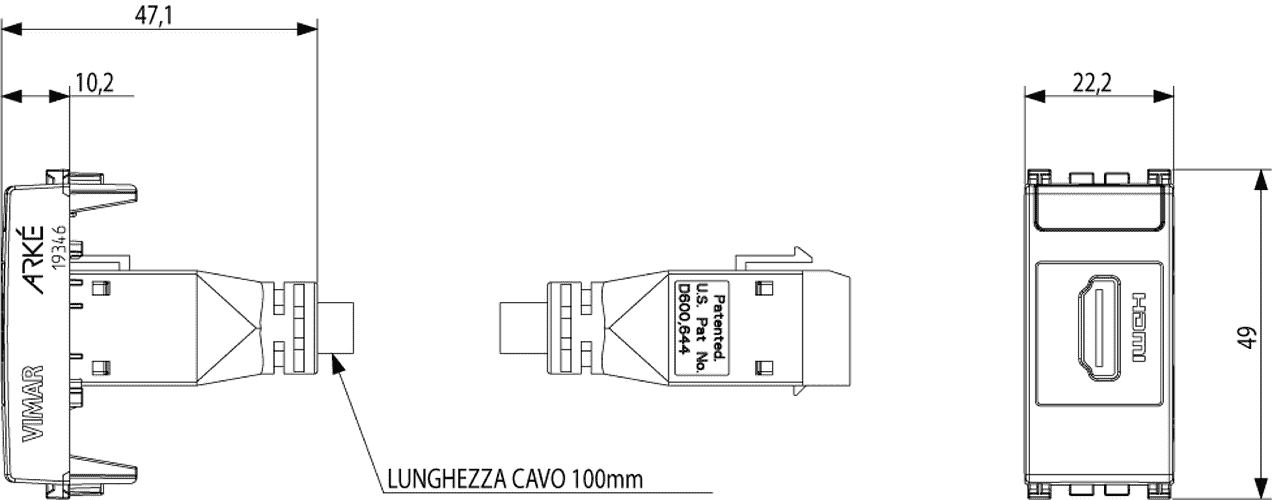

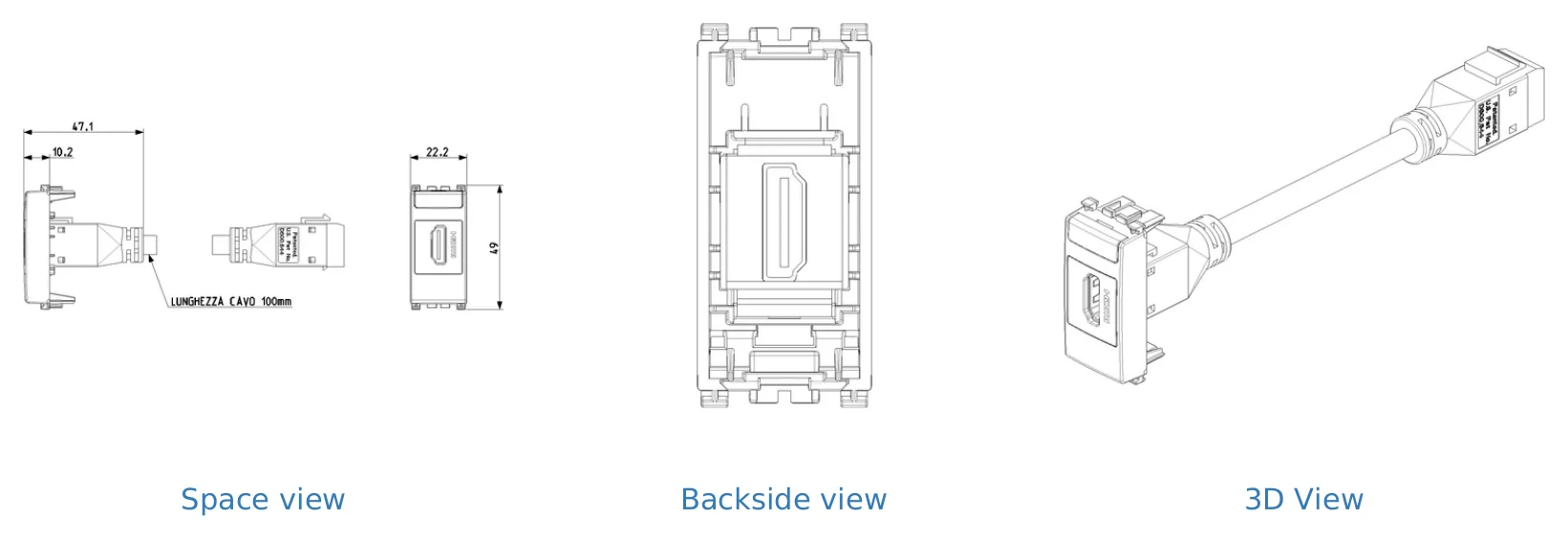

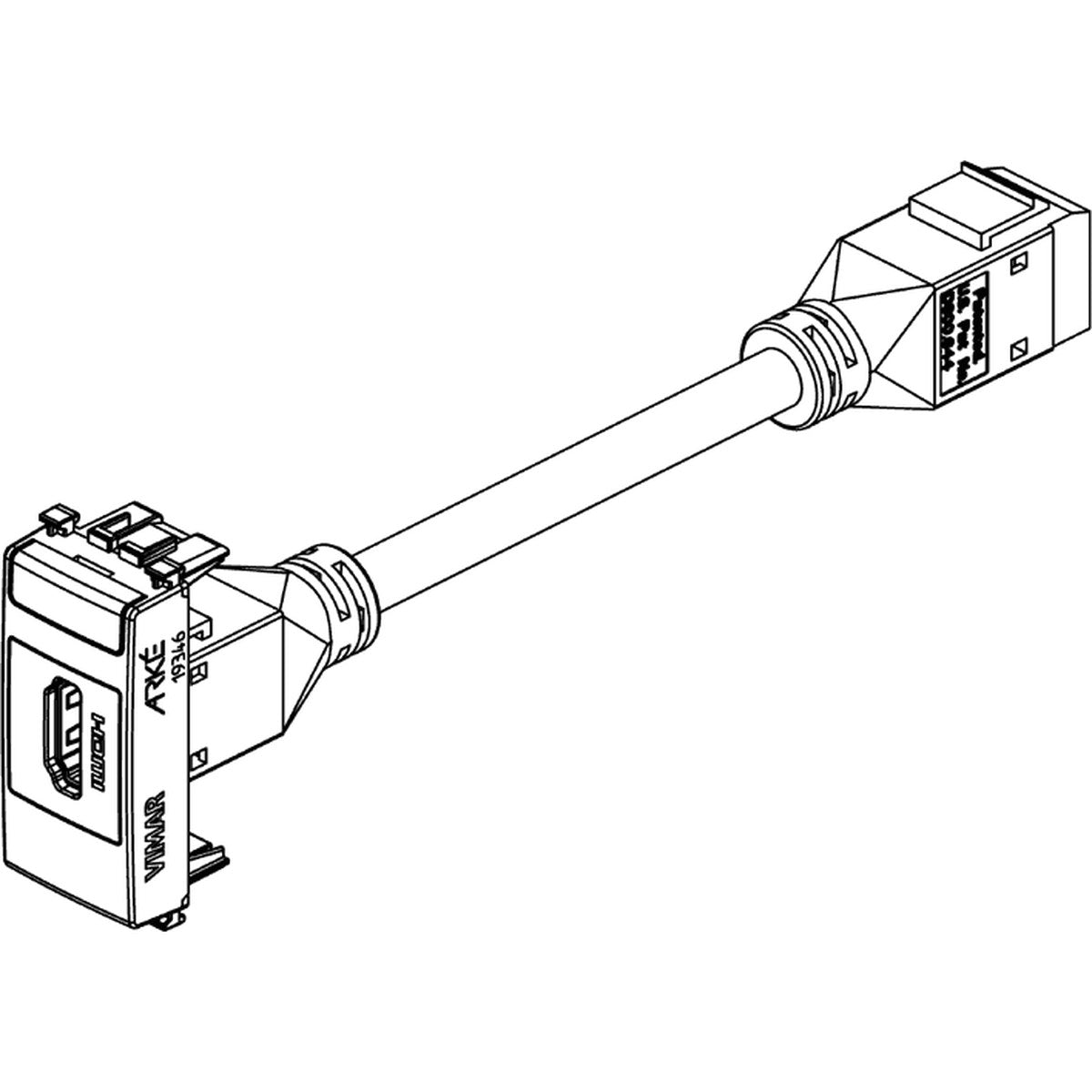

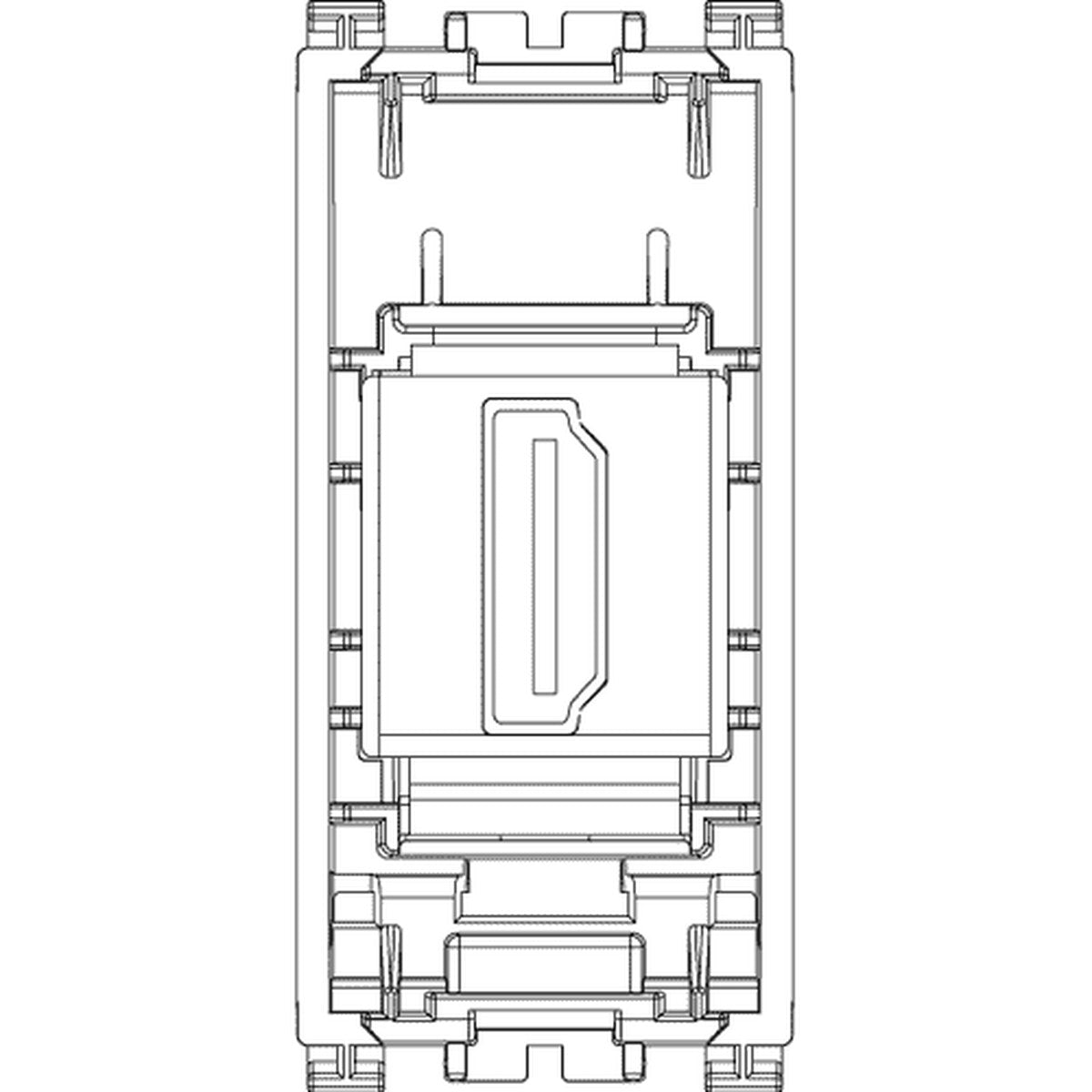

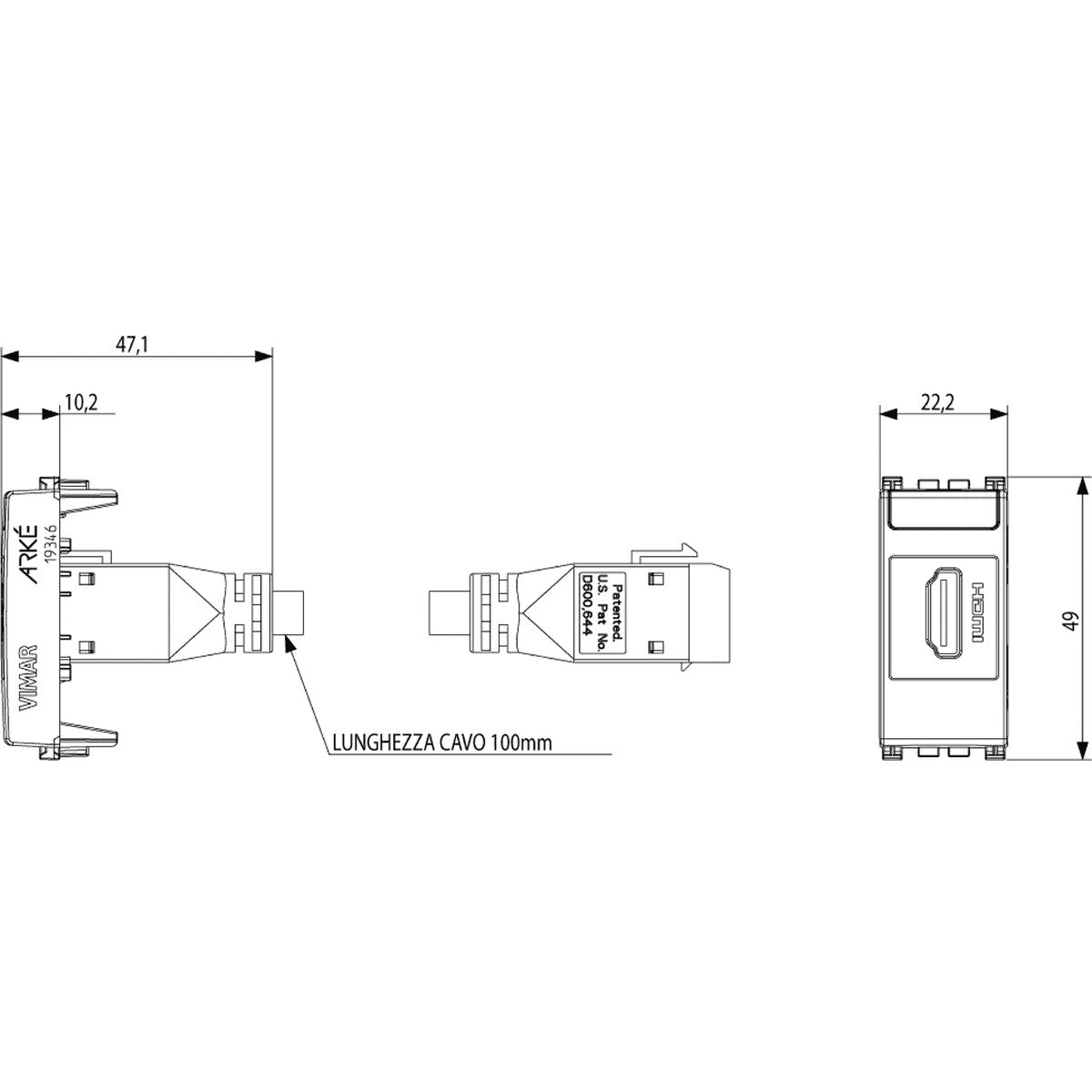

Technical drawings
Downloads
Certificates6
Catalogues15
