Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Arke IR Relay Switch 230V Grey

230V6ASwitchGrey
SKU VM-19181
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

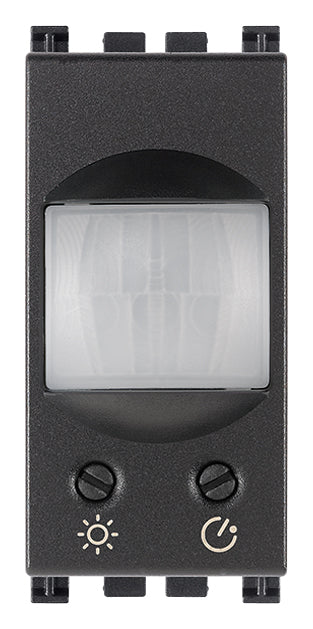

VM-19181 is Vimar ARKÉ 19181, IR relay-switch 230V grey.

Automatic lighting switch with IR motion sensor, adjustable dusk/dawn sensor threshold and time-delay cycle, NO 6 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, grey

Specifications

VM-19181Specifications from the official datasheet

Technical data

Product type
Electronic insert for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Radio-controlled
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No

Packaging

EAN
8007352414266
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
52.2 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy), WEEE Directive

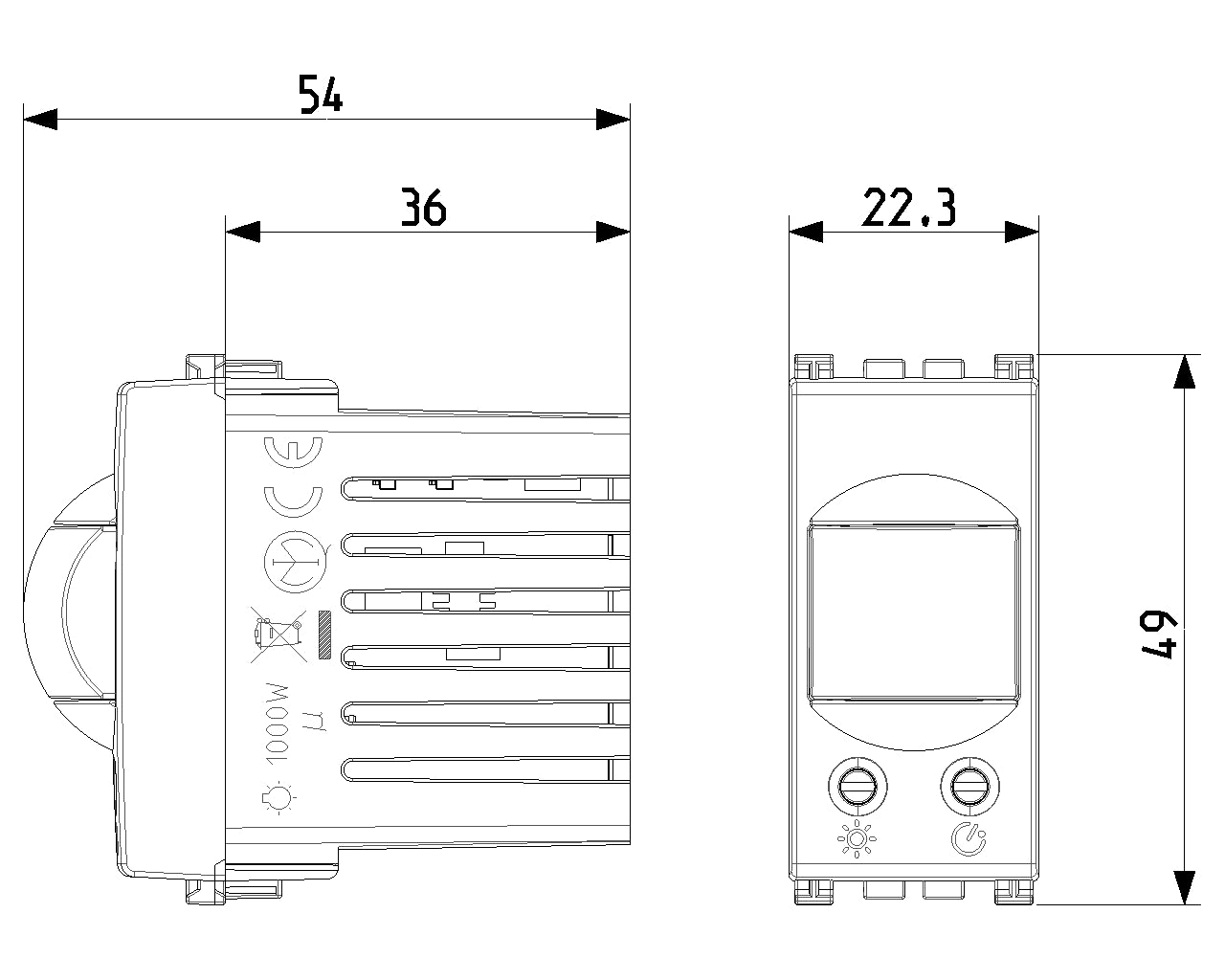

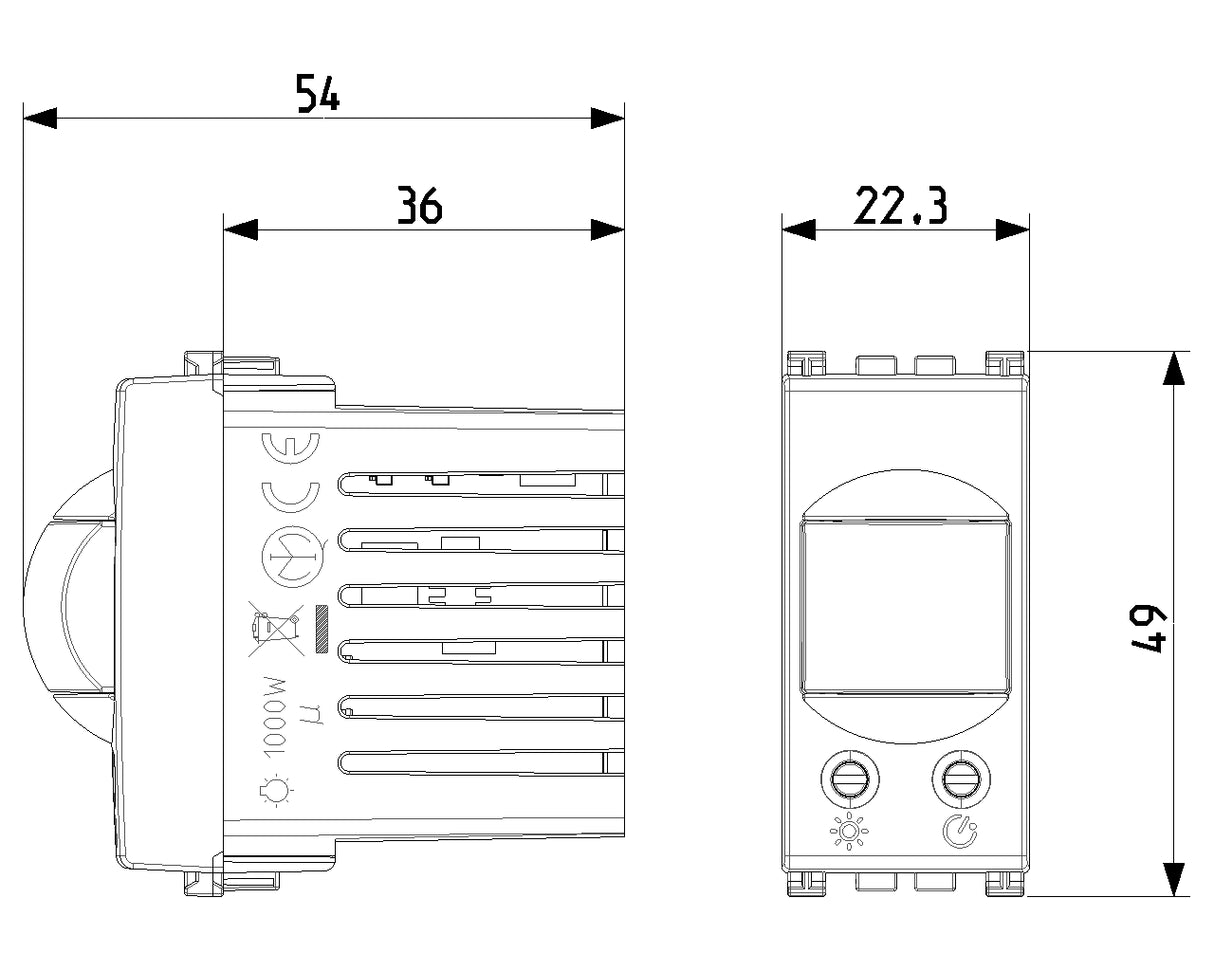

Technical drawings

VM-19181 Drawings
Drawings

Downloads

FAQ

What is the Arke IR Relay Switch 230V Grey used for?

The Arke IR Relay Switch 230V Grey is a switch accessory module designed for use within the Vimar Arke range. It is suited to projects that need a 230V relay switch component while maintaining a coordinated Arke-series appearance on the finished installation.

Is this model part of the Vimar Arke series?

Yes. This product is part of the Vimar Arke family and is intended for Arke-based switch layouts and matching design schemes. Its grey finish also aligns with projects where a neutral, modern look is preferred.

What are the main specifications of this relay switch module?

This model has a rated output voltage of 230V. It has an approximate weight of 0.0522 kg and comes with a 3-year warranty period, which is useful for commercial specification and procurement review.

Can this relay switch module be used in demanding temperature conditions?

This model is specified for operating temperatures from -20°C to 50°C. That range makes it suitable for many standard residential and commercial environments, provided the overall application stays within the product's rated conditions.

What distinguishes this model from other switch modules in a project range?

A key differentiator is that this is an IR relay switch module in the Vimar Arke line, rather than a generic switch component. It also combines a 230V rating with a grey finish, which can matter when matching both technical requirements and visible design choices across a project.
