Vimar

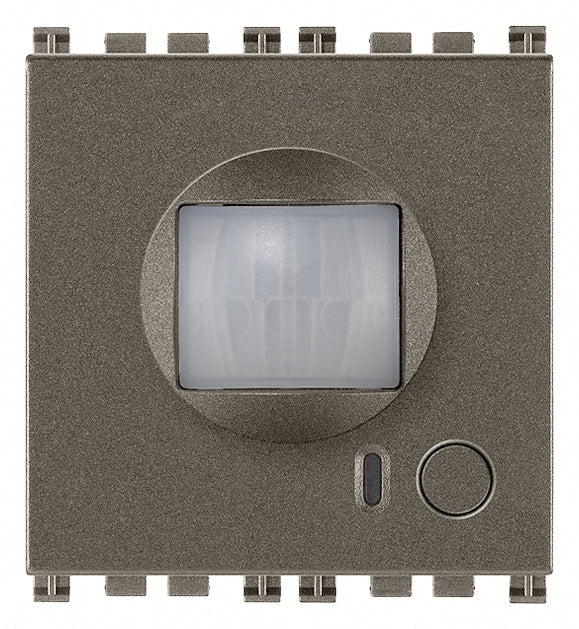

Arke Passive Infrared Motion Detector Aluminium

2MMotion DetectorAluminium
SKU VM-19485.M
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19485.M is Vimar ARKÉ 19485.M, IR motion detector Metal.

Passive infrared presence detector, grey - 2 modules

Specifications

VM-19485.MSpecifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Width
44.7 mm
Height
49 mm
Depth
43.5 mm
Built-in width
44.7 mm
Built-in depth
26.2 mm
Built-in length
49 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352597297
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
109.4 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

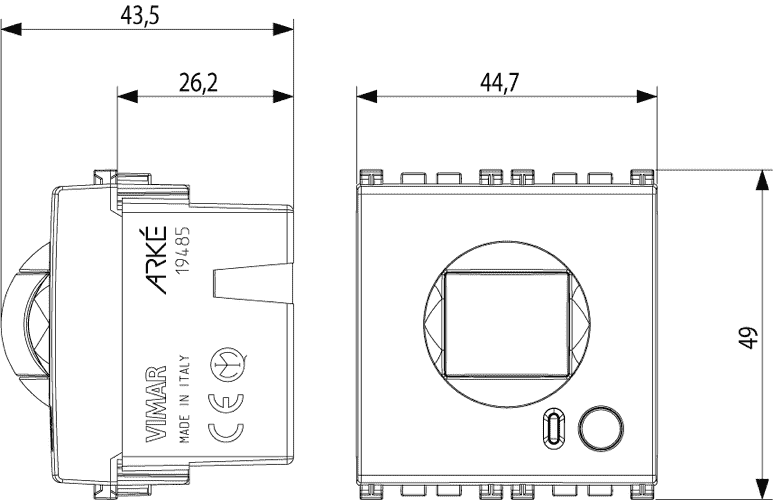

Technical drawings

VM-19485.M Drawings
Drawings

Downloads

FAQ

What is the VM-19485.M used for?

The VM-19485.M is an Arké passive infrared motion detector module for light switch and socket applications. It is suited to residential spaces and hotels where motion detection is needed in a matching aluminium Arké finish.

Which product range does this motion detector belong to?

This model belongs to the Vimar Arké range and is categorized as an Arké switch accessory module. It is intended for projects using Arké light switch modules and related switch accessories.

What is the output voltage of this Arké motion detector?

The listed output voltage for SKU VM-19485.M is 29.0000 V. Buyers should use this value when checking project requirements against the product specifications.

What temperature range is this motion detector rated for?

The VM-19485.M is specified for operation from -20.0000 °C to 50.0000 °C. This makes it suitable for environments that remain within that temperature range.

What makes the aluminium version different from standard white Arké modules?

This version has an aluminium finish colour, aligning with Arké Metal’s material-driven aesthetic. It is aimed at interiors where the switch details are part of the design, such as modern residential spaces or hotels.

What warranty period and weight are listed for VM-19485.M?

The listed warranty period is 3.0000 years. The product weight is specified as 0.1079 kg.
