Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Arke Passive Infrared Motion Detector Grey

2MMotion DetectorGrey
SKU VM-19485
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

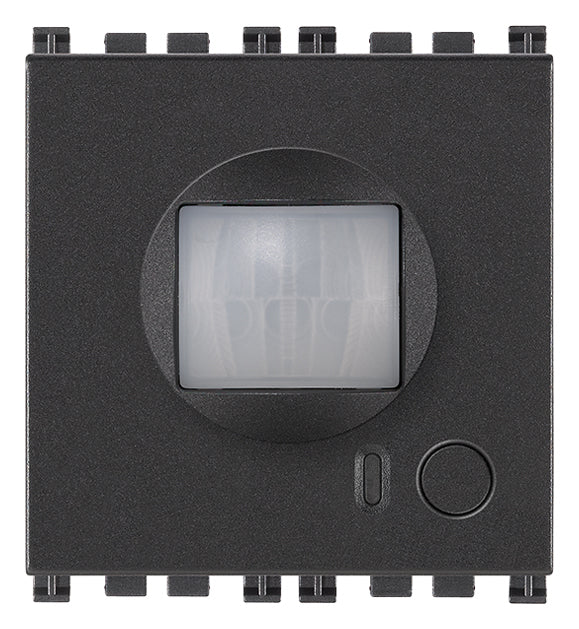

VM-19485 is Vimar ARKÉ 19485, IR motion detector grey.

Passive infrared motion detector, grey - 2 modules

Specifications

VM-19485Specifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Built-in length
26.2 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352451025
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
107.9 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

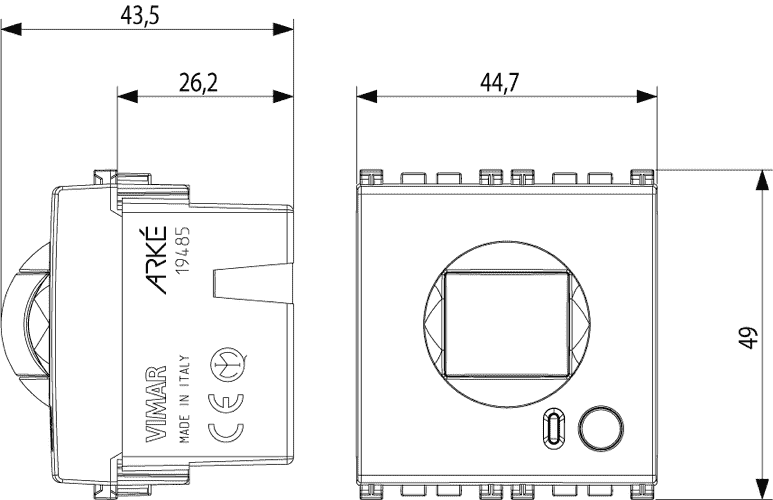

Technical drawings

VM-19485 Drawings
Drawings

Downloads

FAQ

What is the VM-19485 used for?

The VM-19485 is an Arke passive infrared motion detector module for light switch and socket applications. It is suited to projects that need a grey motion detector module within the Vimar Arke range.

Is the VM-19485 part of the Vimar Arke series?

Yes. This model is listed under Vimar Arke module, Arke switch accessory, and Arke light switch categories. Its grey finish is intended to match projects using the Arke design range.

What colour finish does this Arke motion detector have?

The VM-19485 has a grey finish. This makes it a practical match for Arke installations where a neutral, modern accessory module is preferred.

What temperature range is the VM-19485 rated for?

This motion detector is specified for operation from -20 °C to 50 °C. That range supports use in many indoor commercial, residential, and hospitality environments where temperatures remain within those limits.

What voltage is listed for the VM-19485?

The listed output voltage for the VM-19485 is 29 V. Buyers comparing Arke accessory modules should confirm this specification against the requirements of their project.

What warranty period applies to the VM-19485?

The VM-19485 has a 3 year warranty period. This is useful for B2B buyers who need warranty information for project documentation or procurement approval.
