Vimar

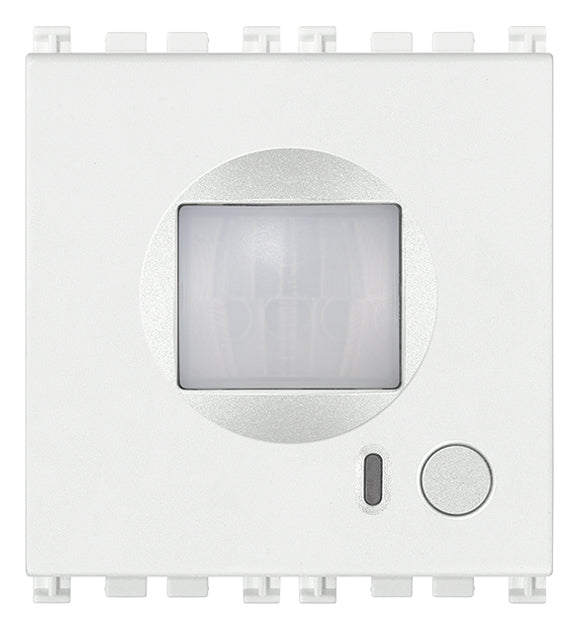

Arke Passive Infrared Motion Detector White

2MMotion DetectorWhite
SKU VM-19485.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19485.B is Vimar ARKÉ 19485.B, IR motion detector white.

Passive infrared motion detector, white - 2 modules

Specifications

VM-19485.BSpecifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Width
44.7 mm
Height
49 mm
Depth
43.5 mm
Built-in width
44.7 mm
Built-in depth
26.2 mm
Built-in length
49 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352456938
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
107.5 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

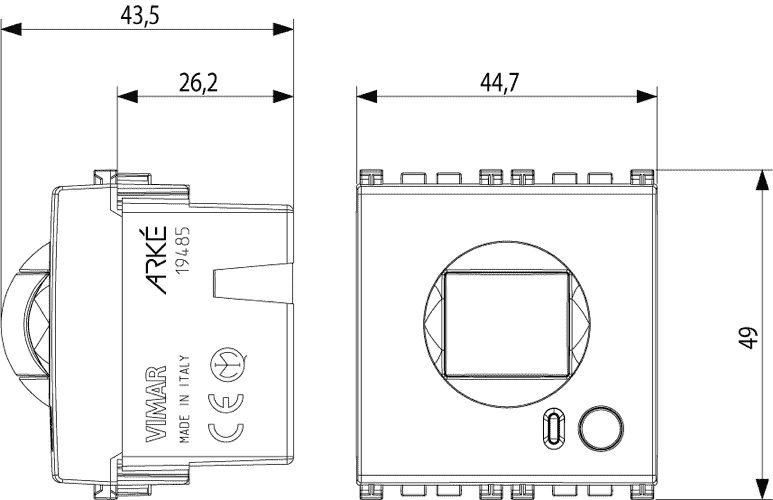

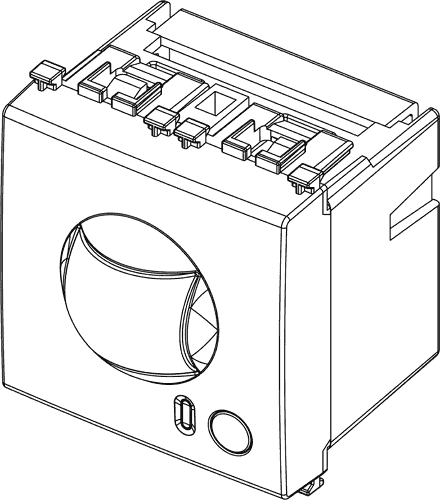

Technical drawings

VM-19485.B Drawings
Drawings

Downloads

FAQ

What is the VM-19485.B used for?

The VM-19485.B is an Arké passive infrared motion detector module for light switch and socket ranges. It is suited to projects that need motion detection in a clean white finish within the Vimar Arké aesthetic.

Is this motion detector part of the Vimar Arké range?

Yes. This model is listed under Vimar Arké switch accessory and module categories, including Arké module and Arké other switch categories. It is intended for buyers specifying components within that design family.

What colour and finish is this model?

The VM-19485.B has a white finish. The product description highlights the Arké range's classic, minimalist white version for spaces where a simple, universal aesthetic is preferred.

What temperature range is specified for this detector?

This model is specified for operation from -20 °C to 50 °C. That range can help buyers assess whether it suits the expected ambient conditions for their project.

What output voltage is listed for the VM-19485.B?

The listed output voltage for this product is 29 V. Buyers should use that published specification when comparing it with other components in the same project.

How heavy is this motion detector module?

The listed weight for the VM-19485.B is 0.1079 kg. This is a useful detail for procurement, shipping, and product handling records.

What warranty period is provided for this product?

The VM-19485.B is listed with a 3 year warranty period. This makes it suitable for B2B purchasing where warranty duration is part of the specification review.
