Vimar

Arke RJ11 Phone Jack 6/4 Grey

RJ11 Jack6-position 4-conductor (6/4)Grey
SKU VM-19320
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19320 is Vimar ARKÉ 19320, RJ11 phone jack 6/4 grey.

RJ11 phone jack, 6-position 4-conductor (6/4), screw terminals, grey

Specifications

VM-19320Specifications from the official datasheet

Technical data

Product type
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22.3 mm
Device height
49 mm
Device depth
43.1 mm

Packaging

EAN
8007352414624
Packed size (cm)
5.1 × 2.8 × 5.3
Packed weight
21.6 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), WEEE Directive

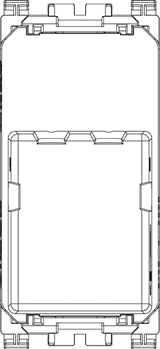

Technical drawings

VM-19320 Drawings
Drawings

Downloads

FAQ

What is the VM-19320 Arke RJ11 Phone Jack used for?

The VM-19320 is an Arke RJ11 6/4 phone jack module intended for phone or voice/data wall plate applications. It is part of the Vimar Arke switch accessory module range and is suited for residential, hospitality, or commercial interiors using Arke components.

What colour is this Arke RJ11 phone jack?

This model comes in a grey finish. The grey colour is designed to coordinate with Arke-style switch and socket installations where a neutral, modern finish is preferred.

Is this phone jack compatible with Vimar Arke installations?

Yes, this product is identified as part of the Vimar Arke module and Arke data/AV switch accessory categories. It is intended for use within Arke-style light switch and socket systems.

What temperature range is this RJ11 phone jack rated for?

The VM-19320 is specified for operation from -20 °C to 50 °C. This range makes it suitable for typical indoor residential, hotel, and commercial environments within those limits.

What warranty period applies to the VM-19320?

This Arke RJ11 Phone Jack is listed with a 3-year warranty period. The warranty information applies specifically to SKU VM-19320 as provided in the product data.
