Vimar

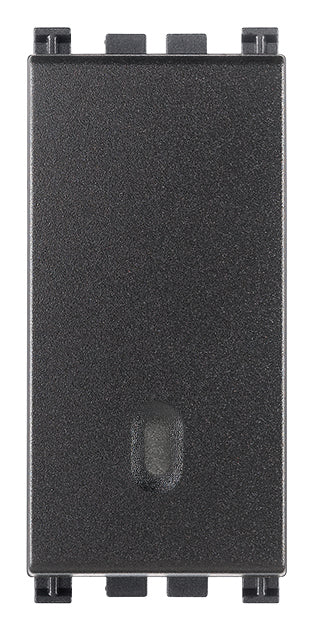

Arke VM-19006 1P 20AX 2-way switch Grey

20A250VPlasticIP40Grey
SKU VM-19006
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19006 is Vimar ARKÉ 19006, 1P 20AX 2-way switch grey.

1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, grey. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-19006Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
36.9 mm
Built-in depth
26 mm

Packaging

EAN
8007352590724
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
29 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), IMQ (Italy), NOM (Mexico), WEEE Directive, ISI (India)

Technical drawings

VM-19006 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke VM-19006 used for?

The VM-19006 is a 1P 20AX 2-way switch in the Vimar Arke range. It is intended for switching compatible lighting circuits where a 2-way switching function is required. This model is a grey module designed for product selections that match the Arke series.

What are the main electrical specifications of the VM-19006?

This model is rated at 20 AX and 250 V~. The product description also states a maximum load of 250 W for self-ballasted lamps under IEC 60669-1:2017. Those ratings make it a clearly specified option for buyers who need the exact switch module performance listed for this SKU.

Is the button on the Arke VM-19006 replaceable?

Yes, the product description states that this switch has a replaceable button. That can be useful where a buyer wants to maintain the appearance of the device over time or align the visible part with project requirements. It is also described as a lightable switch.

What color and finish does this switch module have?

The VM-19006 comes in grey. The product name and finish data both identify this color, which helps when matching other Arke components on the same project. For appearance-sensitive commercial or residential jobs, that makes the finish easy to confirm before ordering.

What temperature range is this switch rated for?

This model is specified for ambient temperatures from -20 degrees C to 50 degrees C. That gives buyers a defined operating range for environments that may experience low or elevated temperatures. The stated range should be checked against the project conditions before selection.

Is the VM-19006 part of the Vimar Arke series?

Yes, this SKU is identified as an Arke switch module. The product name and category data both place it within the Vimar Arke switch and dimmer family. That makes it relevant for buyers standardizing on Arke-series devices and finishes.

What warranty is listed for the Vimar Arke VM-19006?

The listed warranty period for this model is 3 years. That gives buyers a clear reference point for product support expectations on this SKU. It is one of the core commercial details provided in the product data.
