Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

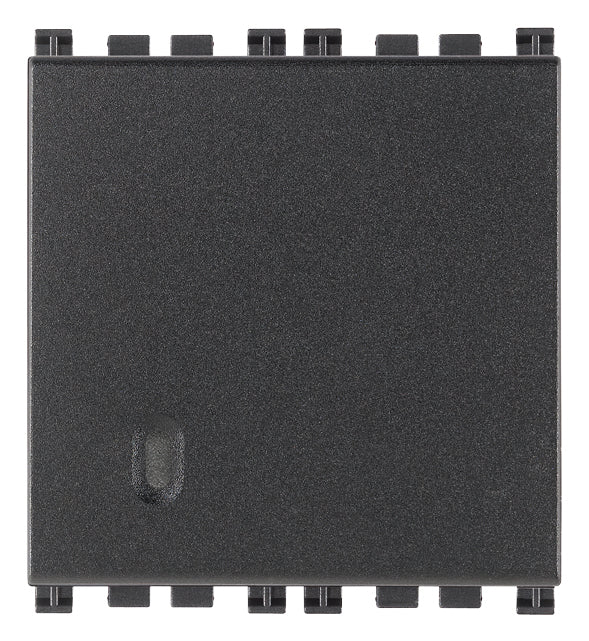

Arke VM-19006.2 1P 20AX 2-way switch 2M Grey

20A250VPlasticIP40Grey

SKU VM-19006.2

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-19006.2 is Vimar ARKÉ 19006.2, 1P 20AX 2-way switch 2M grey.

1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, grey - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-19006.2Specifications from the official datasheet

Technical data

Product type: Installation switch
Wiring system: Two-way switch
Operating method: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 2
Push button switch: Yes
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
With mounting plate: No
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Lacquered
Surface finishing: Matt
Colour: Grey
RAL-number (similar): 7015
Label space/information surface: Yes
Lighting: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Nominal voltage: 250 V
Rated current: 20 A
Monitoring contact: No
Connection type: Screwed terminal
Washing machine switch: No
Device width: 44.8 mm
Device height: 49 mm
Device depth: 36.9 mm
Built-in depth: 26 mm

Packaging

EAN: 8007352590625
Packed size (cm): 5.1 × 4.3 × 5.3
Packed weight: 37.6 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), IMQ (Italy), NOM (Mexico), WEEE Directive, ISI (India)

Technical drawings

Downloads

Datasheet1

VM-19006.2 datasheetVimar_19006.2.pdf PDF Download

FAQ

What is the Vimar Arke VM-19006.2 used for?

The VM-19006.2 is a 1P 20AX 2-way switch designed for use in the Vimar Arke range. It is intended for switching lighting circuits and is supplied in a 2-module grey format.

What are the main electrical specifications of the VM-19006.2?

This model is rated at 20 AX and 250 V~. It is also specified for a maximum load of 250 W for self-ballasted lamps under IEC 60669-1:2017.

Is this switch suitable for projects that need an illuminated switch?

Yes, the product is described as lightable, which means it supports use as an illuminated switch within its product design. That can be useful in commercial or residential settings where switch visibility matters.

What series and format is the Arke VM-19006.2?

This switch belongs to the Vimar Arke series. It is a 2-module device with a grey finish, which helps match other Arke components in the same style.

What environmental temperature range is specified for this model?

The declared operating temperature range is from -20 °C to 50 °C. This gives buyers a clear reference for environments that stay within those specified limits.

Does the VM-19006.2 include a replaceable button?

Yes, this model is specified with a replaceable button. That can be relevant for maintenance planning or for projects that need a consistent finish across modular components.

What warranty and product weight are listed for the Vimar Arke VM-19006.2?

The listed warranty period is 3 years. The product weight is 0.0376 kg, which can help when preparing item data for procurement or logistics records.
