Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

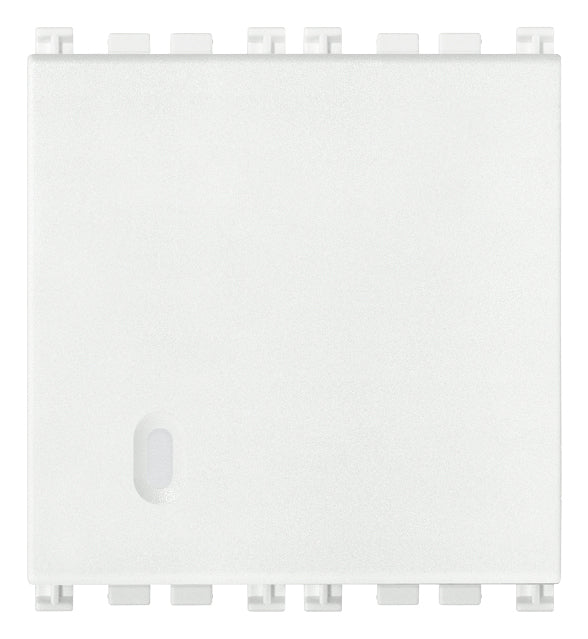

Arke VM-19006.2.B 1P 20AX 2-way switch 2M White

20A250VPlasticIP40White

SKU VM-19006.2.B

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-19006.2.B is Vimar ARKÉ 19006.2.B, 1P 20AX 2-way switch 2M white.

1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, white - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-19006.2.BSpecifications from the official datasheet

Technical data

Product type: Installation switch
Wiring system: Two-way switch
Operating method: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 2
Push button switch: Yes
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
With mounting plate: No
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Lacquered
Surface finishing: Matt
Colour: White
RAL-number (similar): 9016
Label space/information surface: Yes
Lighting: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Nominal voltage: 250 V
Rated current: 20 A
Monitoring contact: No
Connection type: Screwed terminal
Washing machine switch: No
Device width: 44.8 mm
Device height: 49 mm
Device depth: 36.9 mm
Built-in depth: 26 mm

Packaging

EAN: 8007352590649
Packed size (cm): 5.1 × 4.3 × 5.3
Packed weight: 37.8 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), IMQ (Italy), NOM (Mexico), WEEE Directive, ISI (India)

Technical drawings

Downloads

Datasheet1

VM-19006.2.B datasheetVimar_19006.2.B.pdf PDF Download

FAQ

What is the Vimar Arke VM-19006.2.B used for?

The VM-19006.2.B is a 1P 20AX 2-way switch designed for switching lighting or other compatible loads in an Arke modular system. This model is a 2-module white switch with a replaceable button and lightable design, making it suitable for commercial or professional electrical fit-outs where Arke series components are specified.

What are the main electrical ratings of the VM-19006.2.B?

This model is rated at 20 AX and 250 V~. For self-ballasted lamps, the maximum supported load is 250 W in accordance with IEC 60669-1:2017. These ratings make it a higher-capacity switch within its product type.

Is this switch compatible with the Vimar Arke series?

Yes. The product name and category data identify this model as part of the Vimar Arke range, and it is configured as a 2-module unit for that series. It is intended for projects already using Arke-compatible modular devices and finishes.

What makes the VM-19006.2.B different from a standard basic switch?

This version combines a 2-way switching function with a 20AX rating, a lightable design, and a replaceable button. It is also part of the Arke modular family, so it is positioned for coordinated installations where appearance, series matching, and component consistency matter.

What environmental conditions is this switch rated for?

The VM-19006.2.B is specified for ambient temperatures from -20°C to 50°C. That range supports use across a broad set of indoor project environments, provided the overall installation conditions match the product's intended application.

What finish and physical format does this model have?

This switch comes in a white finish and uses a 2-module format. The description also notes a grey replaceable button, which is part of the product's specific design configuration within the Arke range.

What warranty is provided for the Vimar Arke VM-19006.2.B?

The stated warranty period for this model is 3 years. For B2B buyers, this can be useful when aligning component selection with project warranty requirements and maintenance planning.
