Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

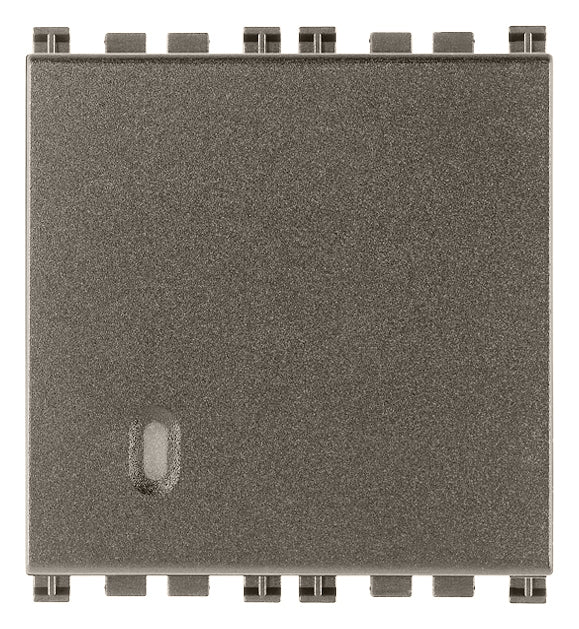

Arke VM-19006.2.M 1P 20AX 2-way switch 2M Metal

20A250VPlasticIP40Metal

SKU VM-19006.2.M

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-19006.2.M is Vimar ARKÉ 19006.2.M, 1P 20AX 2-way switch 2M Metal.

1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, Metal - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-19006.2.MSpecifications from the official datasheet

Technical data

Product type: Installation switch
Wiring system: Two-way switch
Operating method: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 2
Push button switch: Yes
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
With mounting plate: No
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Lacquered
Surface finishing: Matt
Colour: Aluminium
RAL-number (similar): 9007
Label space/information surface: Yes
Lighting: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Nominal voltage: 250 V
Rated current: 20 A
Monitoring contact: No
Connection type: Screwed terminal
Washing machine switch: No
Device width: 44.8 mm
Device height: 49 mm
Device depth: 36.9 mm
Built-in depth: 26 mm

Packaging

EAN: 8007352590809
Packed size (cm): 5.1 × 4.3 × 5.3
Packed weight: 37.5 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), IMQ (Italy), NOM (Mexico), WEEE Directive, ISI (India)

Technical drawings

Downloads

Datasheet1

VM-19006.2.M datasheetVimar_19006.2.M.pdf PDF Download

FAQ

What is the Vimar Arke VM-19006.2.M used for?

The VM-19006.2.M is a 1P 20AX 2-way switch designed for switching lighting circuits in the Vimar Arke range. It is a 2-module device with a metal finish and a lightable, replaceable button.

What are the main electrical ratings of this switch?

This model is rated at 20 AX and 250 V~. It is also specified for a maximum load of 250 W when used with self-ballasted lamps, according to IEC 60669-1:2017.

How does this model differ from a standard non-lightable switch?

The VM-19006.2.M is described as lightable, which distinguishes it from non-lightable switch variants in the same category. It also includes a replaceable button and is finished in metal with a grey button.

Is this switch compatible with the Vimar Arke series?

Yes. This product belongs to the Vimar Arke line and is identified as a 2-module Arke switch device. It is intended for applications within that series rather than as a generic unbranded switch module.

What environmental conditions is the VM-19006.2.M rated for?

This switch is rated for ambient temperatures from -20 degrees C to 50 degrees C. That range makes it suitable for normal operating environments within the limits stated for the product.

What warranty and physical details are listed for this switch?

The listed warranty period for the VM-19006.2.M is 3 years. The product weight is 0.0376 kg, which reflects its compact 2-module switch format.
