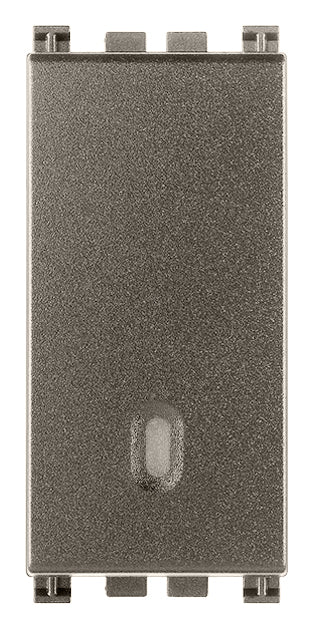

Arke VM-19006.M 1P 20AX 2-way switch Metal
Log in to see priceOverview
VM-19006.M is Vimar ARKΓ 19006.M, 1P 20AX 2-way switch Metal.
1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, Metal. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)
Specifications
Technical data
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Aluminium
- RAL-number (similar)
- 9007
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 20 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Washing machine switch
- No
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 36.9 mm
- Built-in depth
- 26 mm
Packaging
- EAN
- 8007352591097
- Packed size (cm)
- 4.1 Γ 2.8 Γ 5.3
- Packed weight
- 29.3 g
- Pieces per box
- 50
Certifications
- Certifications
- CE marking (EU), IMQ (Italy), NOM (Mexico), WEEE Directive, ISI (India)

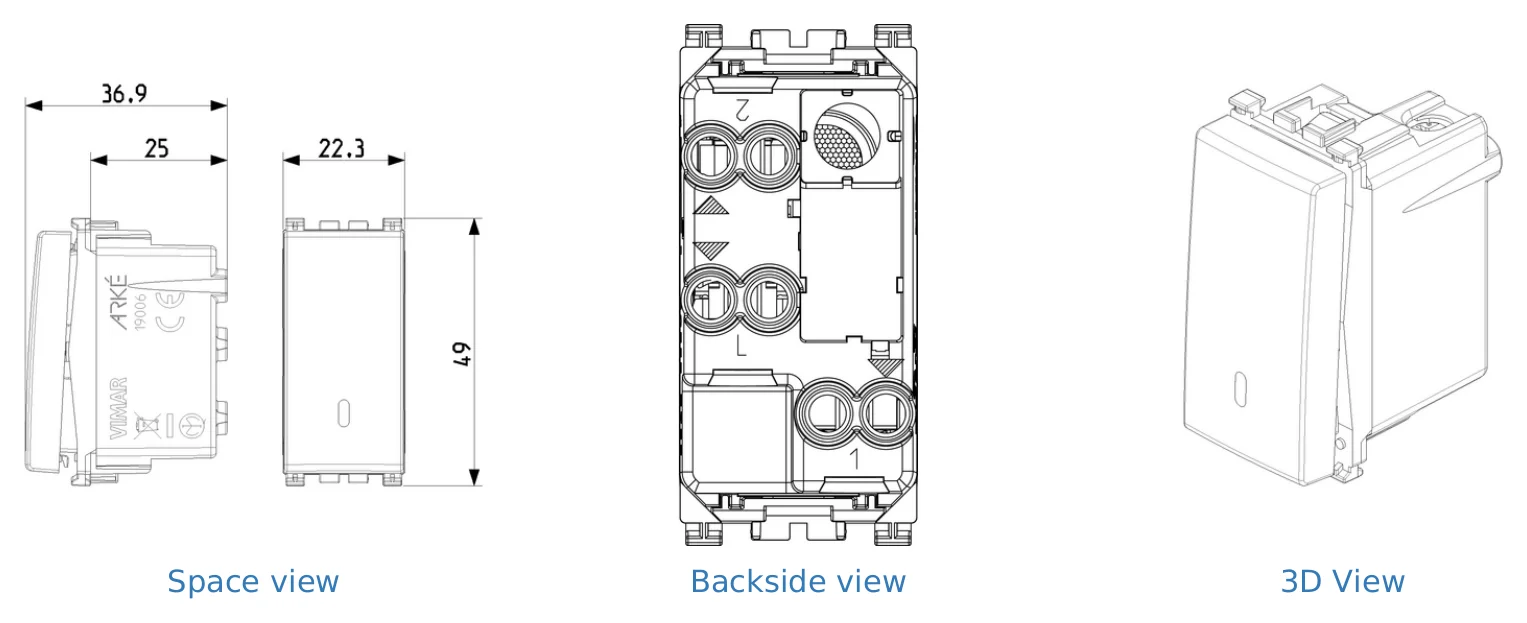

Technical drawings
Downloads
::specification::
FAQ
What is the Vimar Arke VM-19006.M used for?
The VM-19006.M is a 1P 20AX 2-way switch designed for switching lighting loads in Arke series installations. It is intended for buyers who need a lightable switch module with a replaceable button in a metal-finish range.
What are the main electrical ratings of the VM-19006.M?
This model is rated at 20 AX and 250 V~. It also has a maximum load of 250 W for self-ballasted lamps in accordance with IEC 60669-1:2017.
Is this switch suitable for projects that need an illuminated switch?
Yes, the product description specifies that the VM-19006.M is lightable. That makes it suitable for applications where a switch with illumination capability is required within the Arke range.
What finish and appearance does this switch module have?
This model is listed with a steel finish colour, while the product description also notes a grey replaceable button. It is intended for Arke installations where a metal-look switch module is required.
What environmental conditions can the VM-19006.M handle?
The specified operating temperature range is from -20 degrees C to 50 degrees C. This makes it suitable for use in environments that stay within that temperature band.
Is the VM-19006.M part of the Vimar Arke system?
Yes, this SKU belongs to the Vimar Arke family based on the product name and categories. It is intended for use where an Arke series switch/dimmer module is being specified.
What warranty is provided for the VM-19006.M?
The listed warranty period for this model is 3 years. That gives buyers a defined coverage period for this specific switch module.
