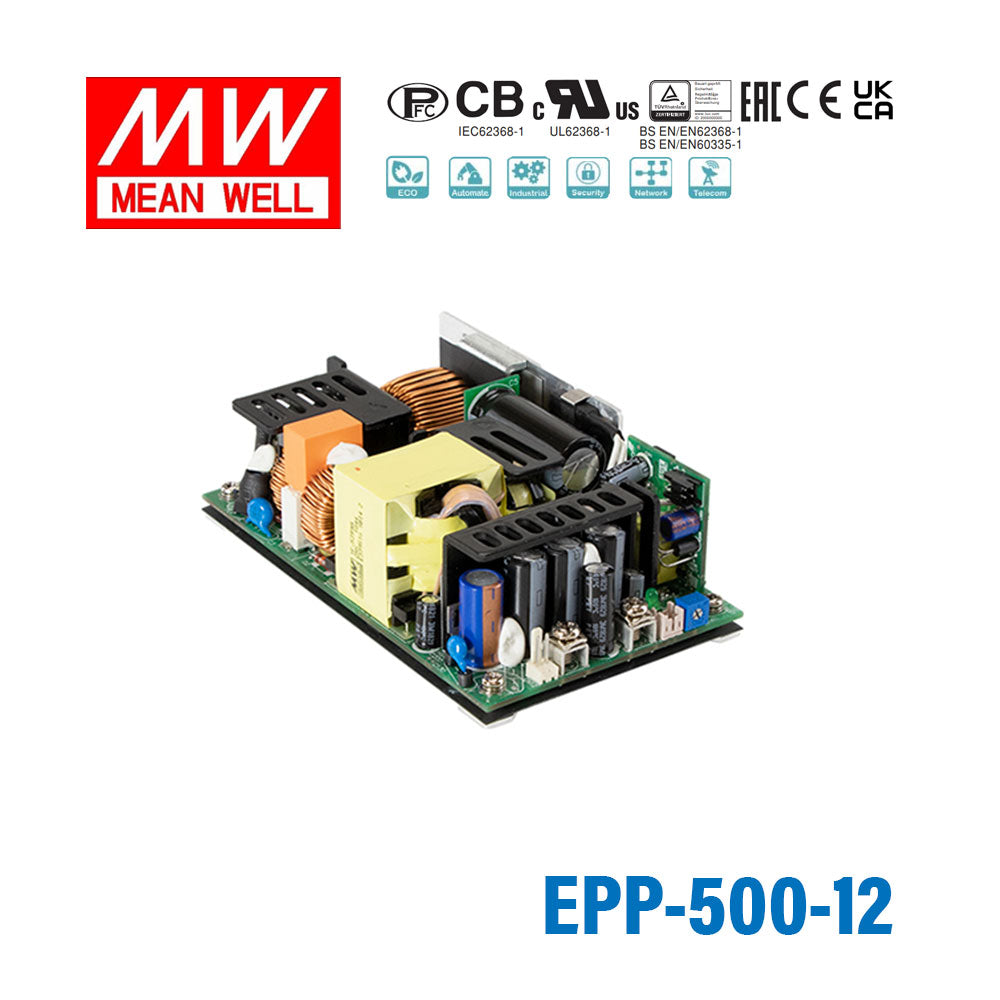

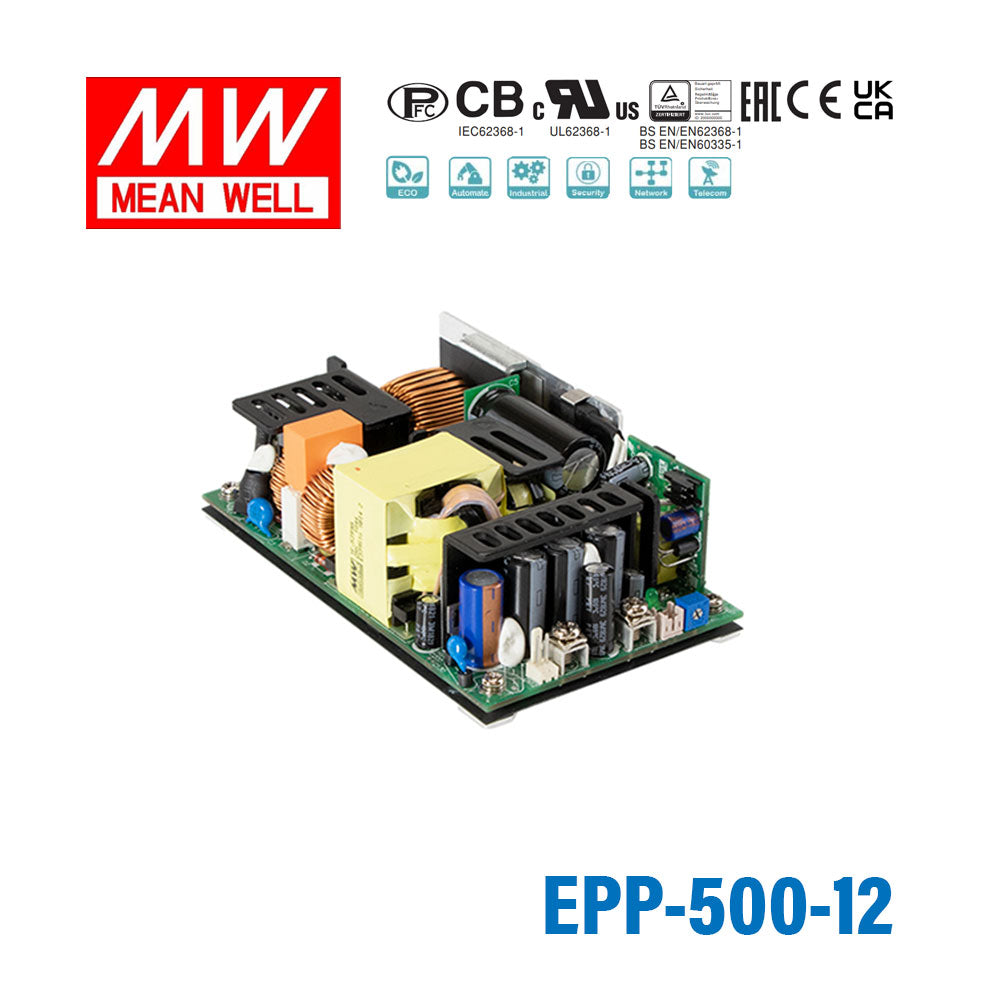

Mean Well EPP-500-12 Power Supply 320W 12V

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

|

Description

Features

5"x3" compact size
320W convection, 500W force air
550W peak power (3sec)
EMI for both Class I & Class II configuration
-30~+70℃ wide range operating temperature
No load power consumption<0.5W by PS ON control
High efficiency up to 94%
Protections: Short circuit/Overload/Over voltage/Over temperature
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
Operating altitude up to 5000 meters (Note.5)
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 80 ~ 264VAC; 113 ~ 370VDC
AC inrush current COLD START 40A/115VAC
Leakage current

<0.75mA / 240VAC

Overload protection 105 ~ 135% rated output power
Over-voltage protection 110%~130% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 10ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 127x76.2x41
Packing 30pcs / 14.8kg

Specifications

  • Brand
    Mean Well
  • Series
    EPP Series
  • Power Rating
    320.4 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    26.7 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.7 cm
  • Width
    7.62 cm
  • Height
    4.1 cm
  • Weight
    0.46 kg
