Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

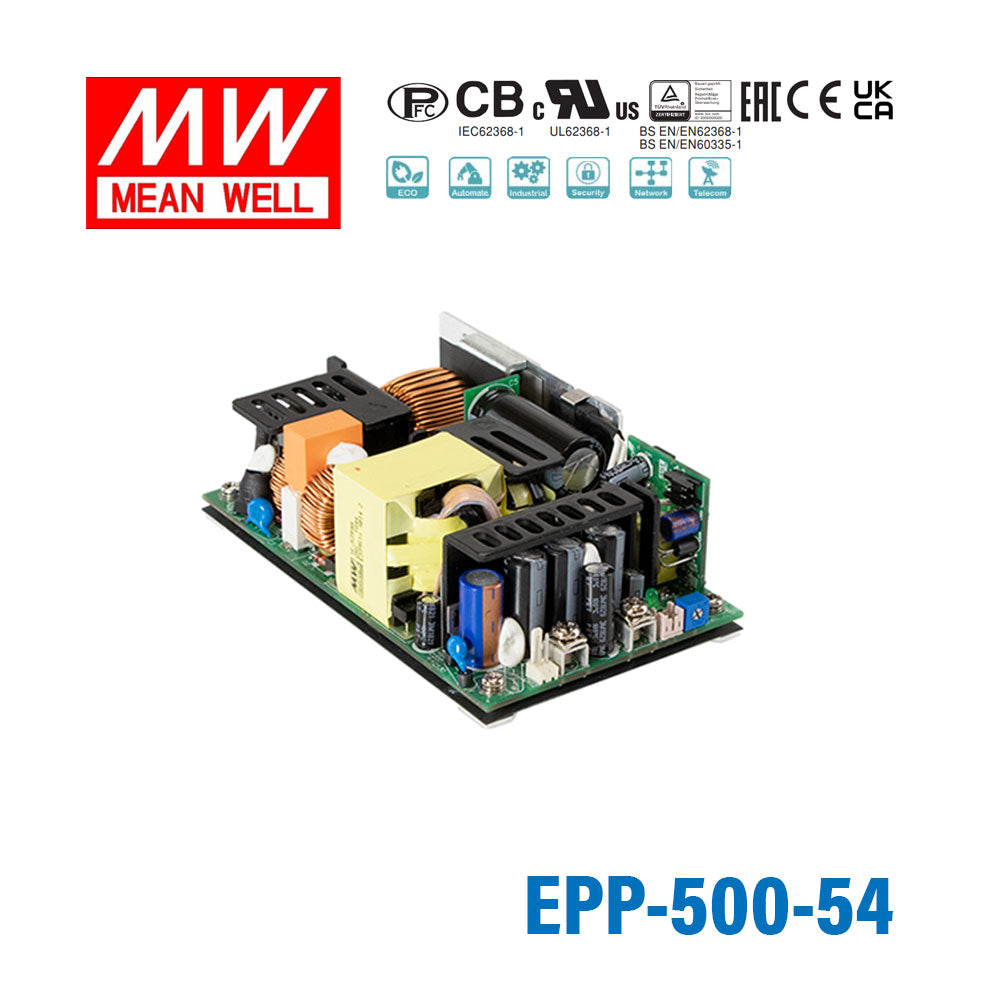

Mean Well EPP-500-54 Power Supply 320W 54V

Q: Can I use the EPP-500-54 for 54V industrial control equipment?

Yes, this model is a constant voltage power supply with a 54V output and up to 5.93A of output current. That makes it suitable for industrial or automation equipment specifically rated for 54V DC and drawing within its 320.2W power limit.

Q: Is the EPP-500-54 a fit for embedded systems that use a 54V DC bus?

It can be a fit for embedded or industrial electronics designed around a 54V constant voltage input. The key limits are 54V output, 5.93A maximum current, and 320.2W total output power.

Q: Can this 54V power supply support higher-power network or automation devices?

It is intended for 54V loads that need more power than lower-wattage open-frame models in the same family. With 320.2W available at 54V, it suits 54V automation or network-related equipment as long as the device current draw stays at or below 5.93A.

Q: Is the EPP-500-54 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -30°C to +70°C, but they do not list an IP rating. Based on the listed specs alone, temperature capability is broad, but dust and water protection for outdoor exposure is not established.

Q: How does the EPP-500-54 compare with the other EPP-500 models?

Within the EPP-500 group, the available outputs are 12V at 320.4W and 26.7A, 15V at 319.5W and 21.3A, 18V at 320.4W and 17.8A, 24V at 321W and 13.4A, 27V at 321.3W and 11.9A, 36V at 320.4W and 8.9A, 48V at 321.6W and 6.7A, and this 54V model at 320.2W and 5.93A. The main difference is the output voltage and the corresponding current available at roughly the same power class.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-54

End of Life, Succeeded by LOP-500-54

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA / 240VAC

Key Features

✓✓5"x3" compact size
✓✓320W convection, 500W force air550W peak power (3sec)
✓✓EMI for both Class I & Class II configuration
✓✓-30~+70℃ wide range operating temperature
✓✓No load power consumption<0.5W by PS ON control
✓✓High efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
✓✓Operating altitude up to 5000 meters (Note.5)
✓✓LED indicator for power on
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

320.2 Watt
Output Voltage

54 Volt
Rated Current

5.93 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

4.1 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-500-54 for 54V industrial control equipment?

Yes, this model is a constant voltage power supply with a 54V output and up to 5.93A of output current. That makes it suitable for industrial or automation equipment specifically rated for 54V DC and drawing within its 320.2W power limit.

Is the EPP-500-54 a fit for embedded systems that use a 54V DC bus?

It can be a fit for embedded or industrial electronics designed around a 54V constant voltage input. The key limits are 54V output, 5.93A maximum current, and 320.2W total output power.

Can this 54V power supply support higher-power network or automation devices?

It is intended for 54V loads that need more power than lower-wattage open-frame models in the same family. With 320.2W available at 54V, it suits 54V automation or network-related equipment as long as the device current draw stays at or below 5.93A.

Is the EPP-500-54 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -30°C to +70°C, but they do not list an IP rating. Based on the listed specs alone, temperature capability is broad, but dust and water protection for outdoor exposure is not established.

How does the EPP-500-54 compare with the other EPP-500 models?

Within the EPP-500 group, the available outputs are 12V at 320.4W and 26.7A, 15V at 319.5W and 21.3A, 18V at 320.4W and 17.8A, 24V at 321W and 13.4A, 27V at 321.3W and 11.9A, 36V at 320.4W and 8.9A, 48V at 321.6W and 6.7A, and this 54V model at 320.2W and 5.93A. The main difference is the output voltage and the corresponding current available at roughly the same power class.

Model	Power	Voltage	Current
Mean Well EPP-500-48 Power Supply 321W 48V	321.6W	48V	6.7A	View
Mean Well EPP-500-36 Power Supply 320W 36V	320.4W	36V	8.9A	View
Mean Well EPP-500-27 Power Supply 321W 27V	321.3W	27V	11.9A	View
Mean Well EPP-500-24 Power Supply 321W 24V	321W	24V	13.4A	View
Mean Well EPP-500-18 Power Supply 320W 18V	320.4W	18V	17.8A	View
Mean Well EPP-500-15 Power Supply 320W 15V	319.5W	15V	21.3A	View
Mean Well EPP-500-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
