Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

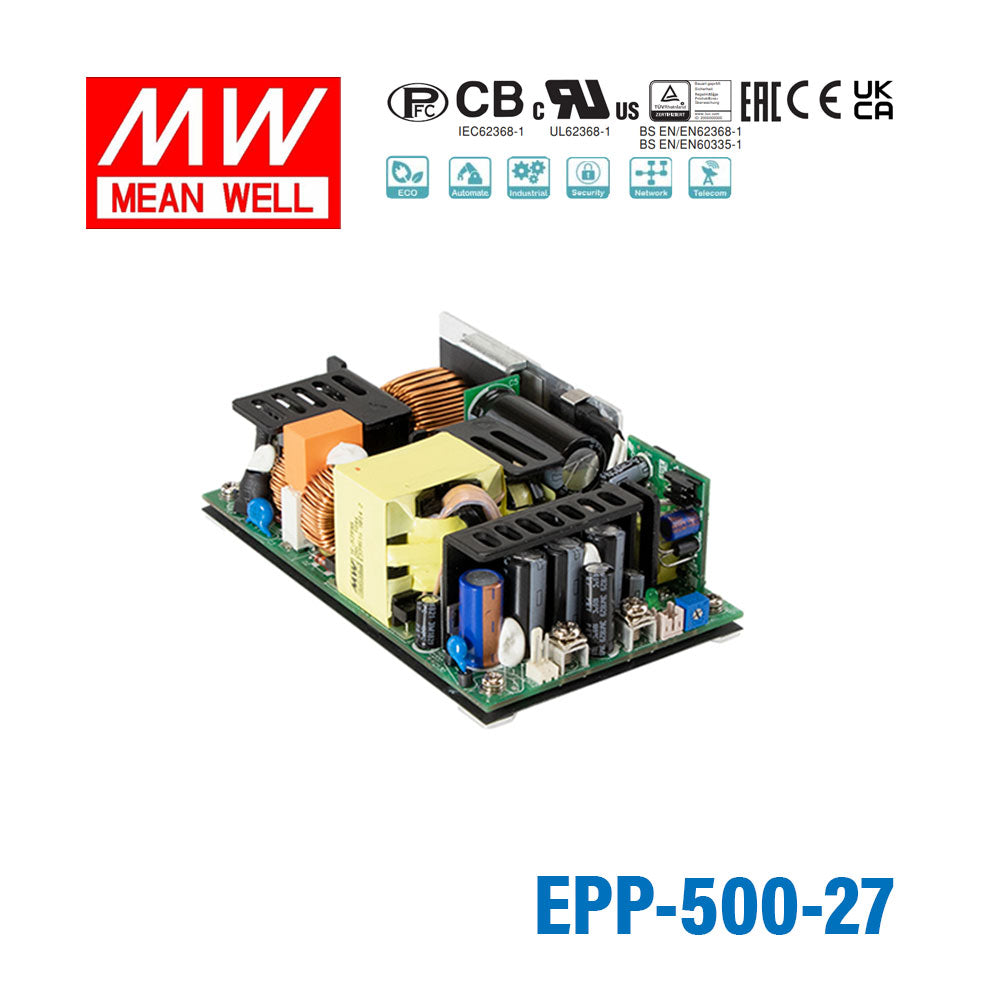

Mean Well EPP-500-27 Power Supply 321W 27V

Q: Can I use the EPP-500-27 for 27V industrial or automation equipment?

Yes, if the equipment is designed for constant 27V DC input. This model provides up to 11.9A and 321.3W.

Q: Is the EPP-500-27 suitable for a 27V embedded control assembly?

It can be used in embedded or OEM equipment that specifies 27V DC and fits the 127.0 x 76.2 x 41.0 mm footprint. The unit accepts 80-264VAC input and delivers a regulated constant voltage output.

Q: Can this model support several 27V loads at the same time?

Yes, as long as the combined 27V load does not go beyond 11.9A or 321.3W. That makes it suitable for machines or control assemblies with multiple 27V devices on the same DC bus.

Q: Is the EPP-500-27 appropriate for outdoor installations?

The specified operating range is -30C to +70C, which covers a wide temperature span. However, no IP rating is listed, so the specs support protected indoor use or placement inside an enclosure rather than direct outdoor exposure.

Q: How does the EPP-500-27 differ from the other EPP-500 versions?

The EPP-500 lineup includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 27V model trades current for higher output voltage while staying in the same overall power class.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-27

End of Life, Succeeded by LOP-500-27

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA / 240VAC

Key Features

✓✓5"x3" compact size
✓✓320W convection, 500W force air550W peak power (3sec)
✓✓EMI for both Class I & Class II configuration
✓✓-30~+70℃ wide range operating temperature
✓✓No load power consumption<0.5W by PS ON control
✓✓High efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
✓✓Operating altitude up to 5000 meters (Note.5)
✓✓LED indicator for power on
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

321.3 Watt
Output Voltage

27 Volt
Rated Current

11.9 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

4.1 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-500-27 for 27V industrial or automation equipment?

Yes, if the equipment is designed for constant 27V DC input. This model provides up to 11.9A and 321.3W.

Is the EPP-500-27 suitable for a 27V embedded control assembly?

It can be used in embedded or OEM equipment that specifies 27V DC and fits the 127.0 x 76.2 x 41.0 mm footprint. The unit accepts 80-264VAC input and delivers a regulated constant voltage output.

Can this model support several 27V loads at the same time?

Yes, as long as the combined 27V load does not go beyond 11.9A or 321.3W. That makes it suitable for machines or control assemblies with multiple 27V devices on the same DC bus.

Is the EPP-500-27 appropriate for outdoor installations?

The specified operating range is -30C to +70C, which covers a wide temperature span. However, no IP rating is listed, so the specs support protected indoor use or placement inside an enclosure rather than direct outdoor exposure.

How does the EPP-500-27 differ from the other EPP-500 versions?

The EPP-500 lineup includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 27V model trades current for higher output voltage while staying in the same overall power class.

Model	Power	Voltage	Current
Mean Well EPP-500-54 Power Supply 320W 54V	320.2W	54V	5.93A	View
Mean Well EPP-500-48 Power Supply 321W 48V	321.6W	48V	6.7A	View
Mean Well EPP-500-36 Power Supply 320W 36V	320.4W	36V	8.9A	View
Mean Well EPP-500-24 Power Supply 321W 24V	321W	24V	13.4A	View
Mean Well EPP-500-18 Power Supply 320W 18V	320.4W	18V	17.8A	View
Mean Well EPP-500-15 Power Supply 320W 15V	319.5W	15V	21.3A	View
Mean Well EPP-500-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
